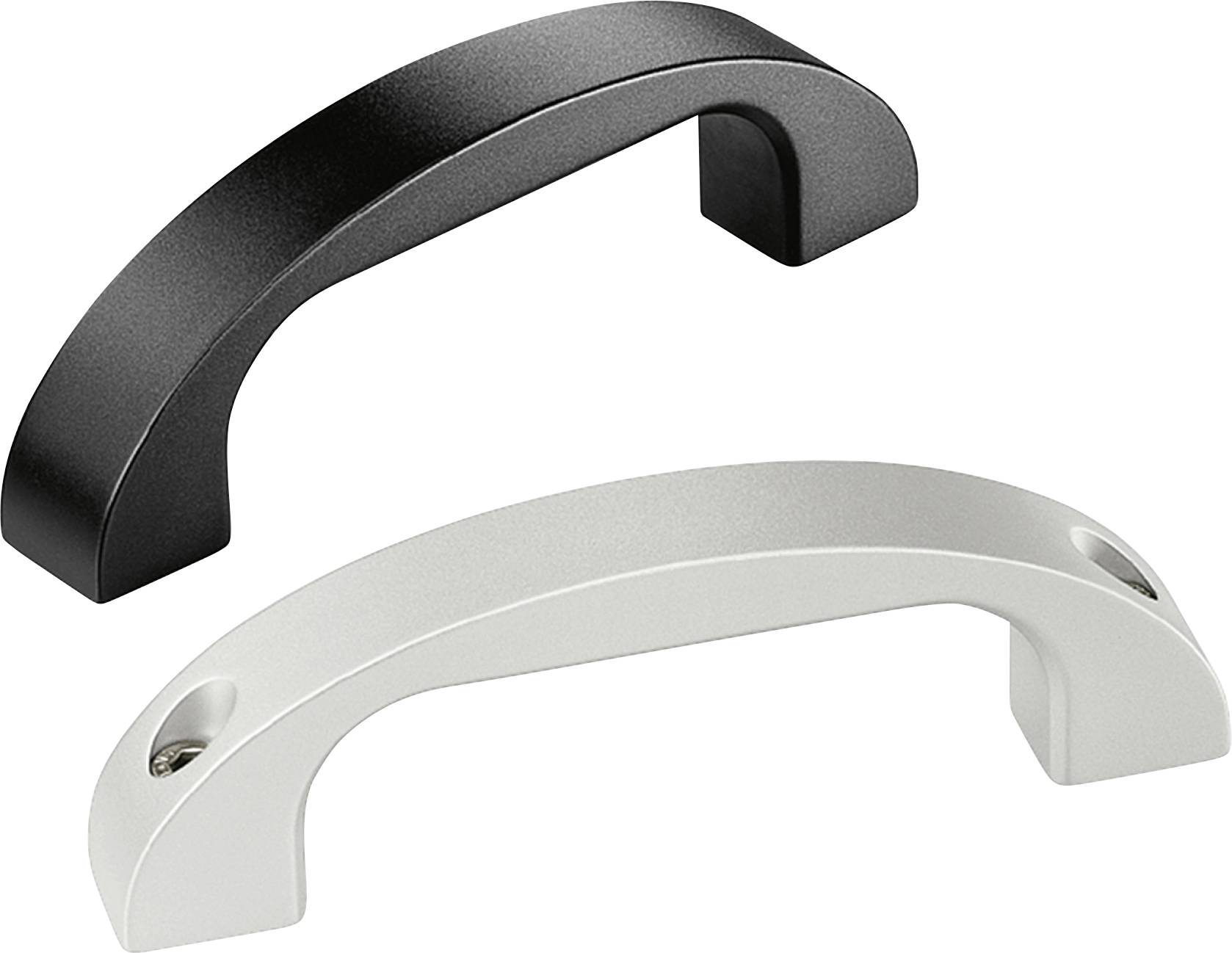

Image similar
Rohde AB-22.R120.14 Handle Black (L x W x H) 144 x 22 x 46 mm 2 pc(s)
Product type
Handle
Material
Aluminium
Dim
(L x W x H) 144 x 22 x 46 mm
Width
22 mm
Height
46 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle made of profile aluminum
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: AB-22
- Handle type (series): Aluminum handles
- Hole diameter: M6

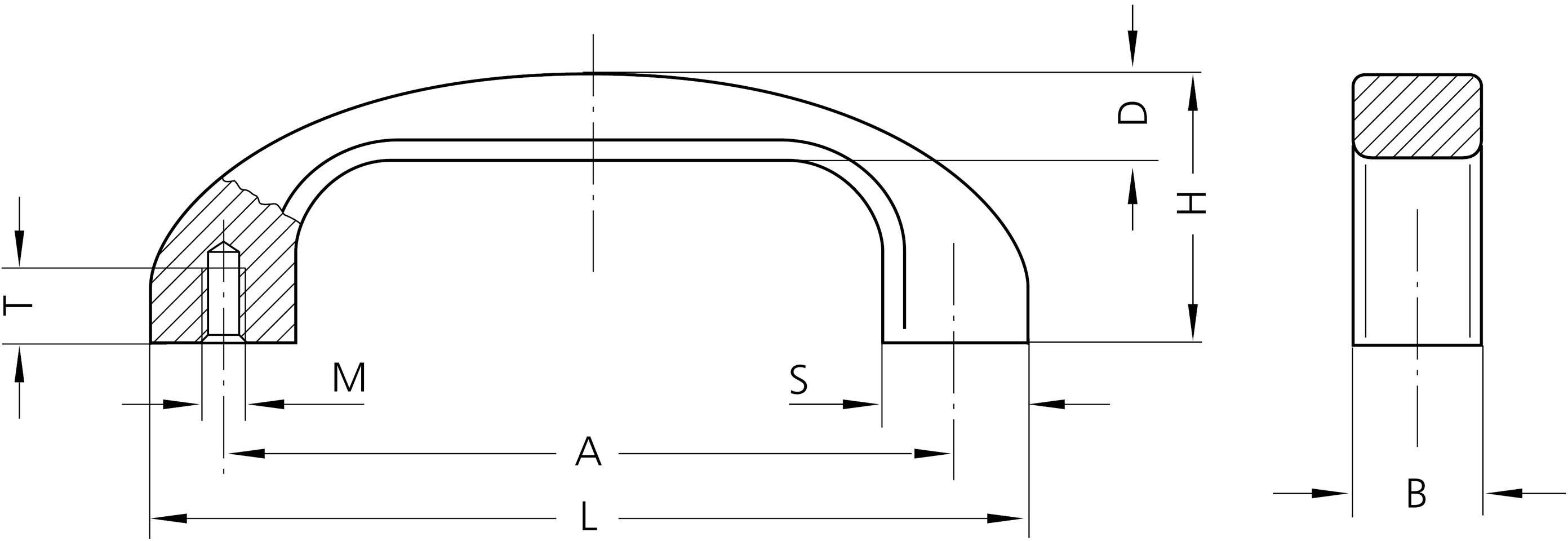

- Dim
(L x W x H) 144 x 22 x 46 mm
- Product type
Handle
- Material
Aluminium
- Width
22 mm
- Height
46 mm
- Length
144 mm
- Hole spacing
120 mm
- Factory colour
Black
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
AB-22.R120.14
Documents & Downloads
Datasheet
Datasheet 2343460 Rohde AB-22.R120.14 Handle Black (L x W x H) 144 x 22 x 46 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343460 Rohde AB-22.R120.14 Handle Black (L x W x H) 144 x 22 x 46 mm 2 pc(s)
Description
Material and surface:
Profile aluminum AlMgSi 0.5;
Particularly high-quality Eloxal -
design, glass globe-blasted,
Semi-gloss in 2 standard -
colors, as well as titanium-colored powder coated,
Similar to RAL 9007.
Type AB-R for rear side
Screw on.
AB-F type for screw mounting
From the front; this version
Includes socket head screws
With hexagon socket
DIN 912, nuts DIN 934 and
Washers DIN 125
Stainless steel.
This text is machine translated.
Profile aluminum AlMgSi 0.5;
Particularly high-quality Eloxal -
design, glass globe-blasted,
Semi-gloss in 2 standard -
colors, as well as titanium-colored powder coated,
Similar to RAL 9007.
Type AB-R for rear side
Screw on.
AB-F type for screw mounting
From the front; this version
Includes socket head screws
With hexagon socket
DIN 912, nuts DIN 934 and
Washers DIN 125
Stainless steel.
This text is machine translated.
