Rohde AB-25.F140.55 Handle Titanium (L x W x H) 168 x 25 x 53 mm 2 pc(s)
Product type
Handle
Material
Aluminium
Dim

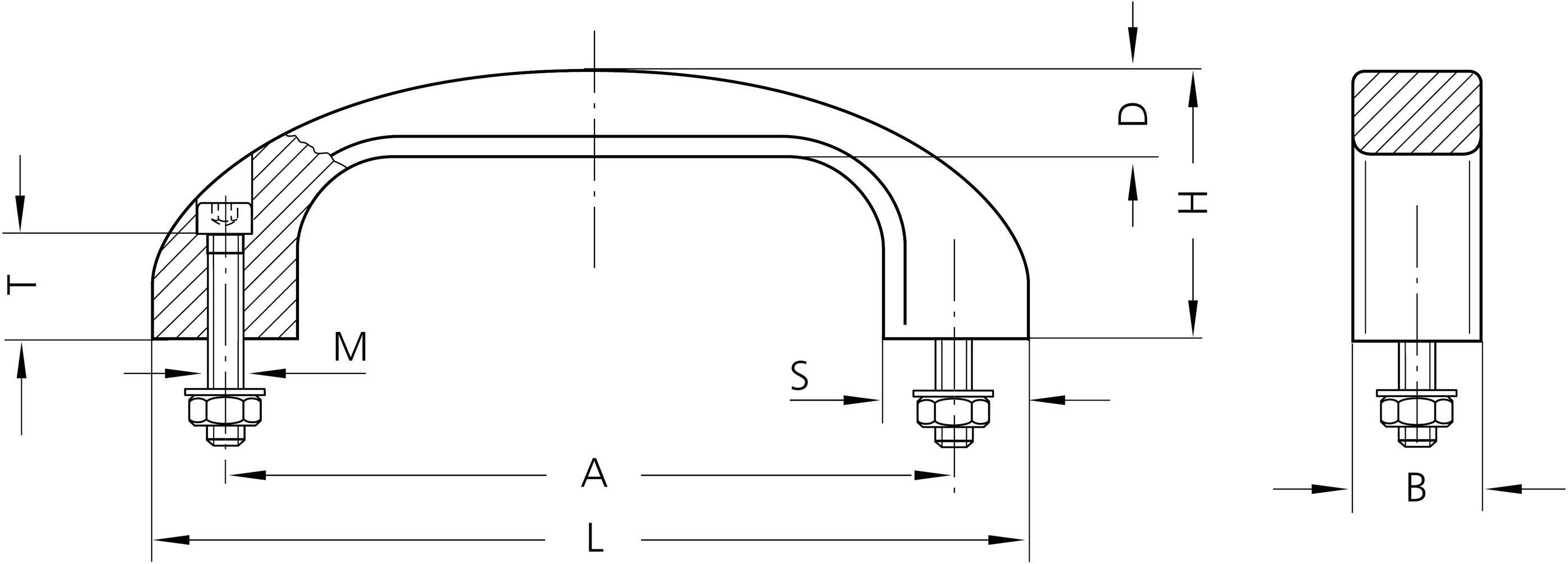

(L x W x H) 168 x 25 x 53 mm
Width
25 mm
Height
53 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle, assembly from front, titanium-colored powder-coated
- Content 2 pcs.
Technical specifications
- Surface treatment: Powder coated
- Material (material): AlMgSi 0.5
- Manufacturer's color: titanium colors
- Mounting method: c:Round bore
- Series name: AB-25
- Handle type (series): Aluminum handles
- Hole diameter: M8
- Dim
(L x W x H) 168 x 25 x 53 mm
- Product type
Handle
- Material
Aluminium
- Width
25 mm
- Height
53 mm
- Length
168 mm
- Hole spacing
140 mm
- Factory colour
Titanium
- Content
2 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
AB-25.F140.55
Documents & Downloads
Datasheet
Datasheet 2343464 Rohde AB-25.F140.55 Handle Titanium (L x W x H) 168 x 25 x 53 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343464 Rohde AB-25.F140.55 Handle Titanium (L x W x H) 168 x 25 x 53 mm 2 pc(s)
Description
Material and surface:
Profile aluminum AlMgSi 0.5;
Particularly high-quality Eloxal -
design, glass globe-blasted,
Semi-gloss in 2 standard -
colors, as well as titanium-colored powder coated,
Similar to RAL 9007.
Type AB-R for rear side
Screw on.
AB-F type for screw mounting
From the front; this version
Includes socket head screws
With hexagon socket
DIN 912, nuts DIN 934 and
Washers DIN 125
Stainless steel.
This text is machine translated.
Profile aluminum AlMgSi 0.5;
Particularly high-quality Eloxal -
design, glass globe-blasted,
Semi-gloss in 2 standard -
colors, as well as titanium-colored powder coated,
Similar to RAL 9007.
Type AB-R for rear side
Screw on.
AB-F type for screw mounting
From the front; this version
Includes socket head screws
With hexagon socket
DIN 912, nuts DIN 934 and
Washers DIN 125
Stainless steel.
This text is machine translated.
