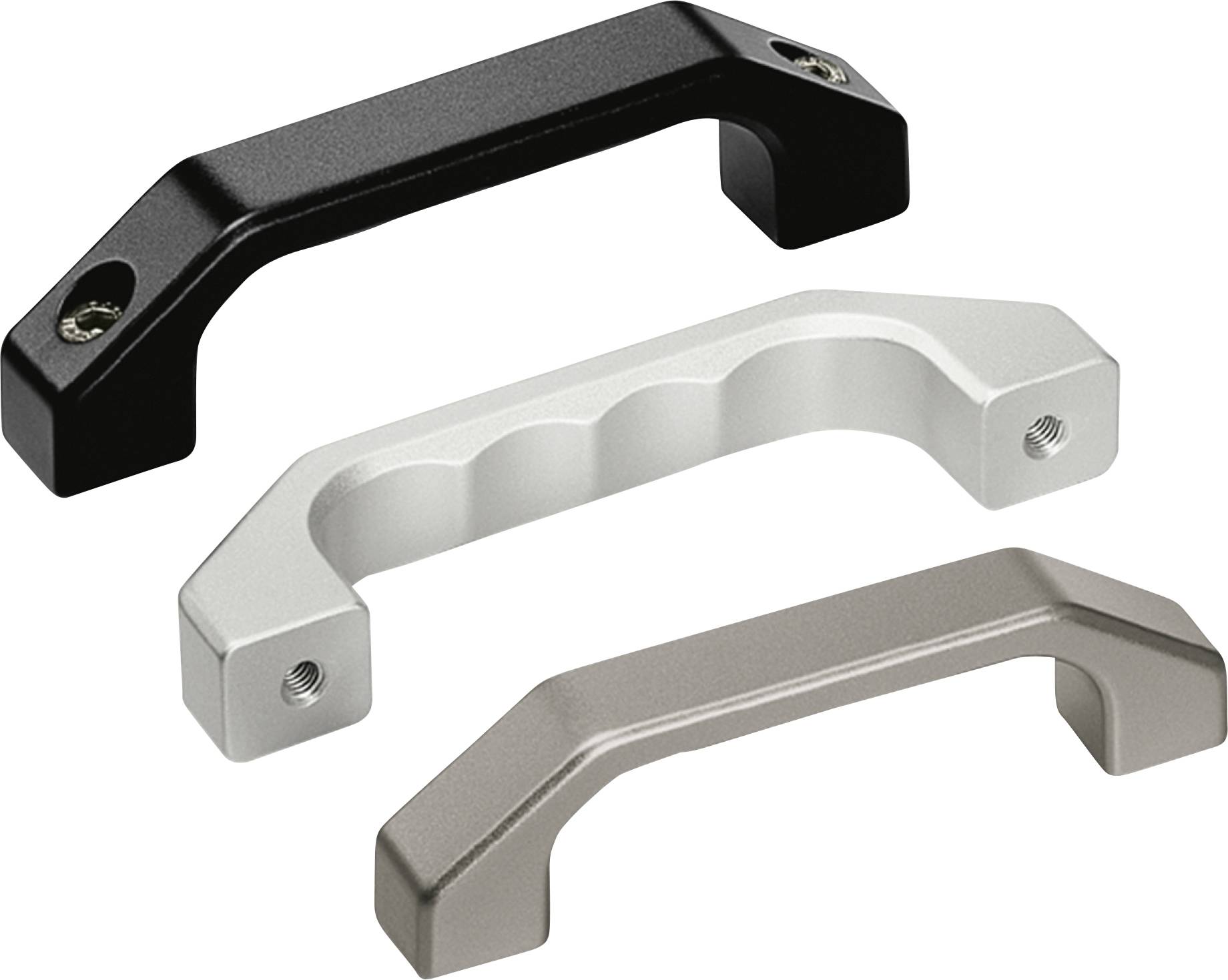

Image similar
Rohde AG-22.R120.11 Case handle Silver (L x W x H) 146 x 22 x 39 mm 2 pc(s)
Product type
Case handle
Material
Aluminium
Dim

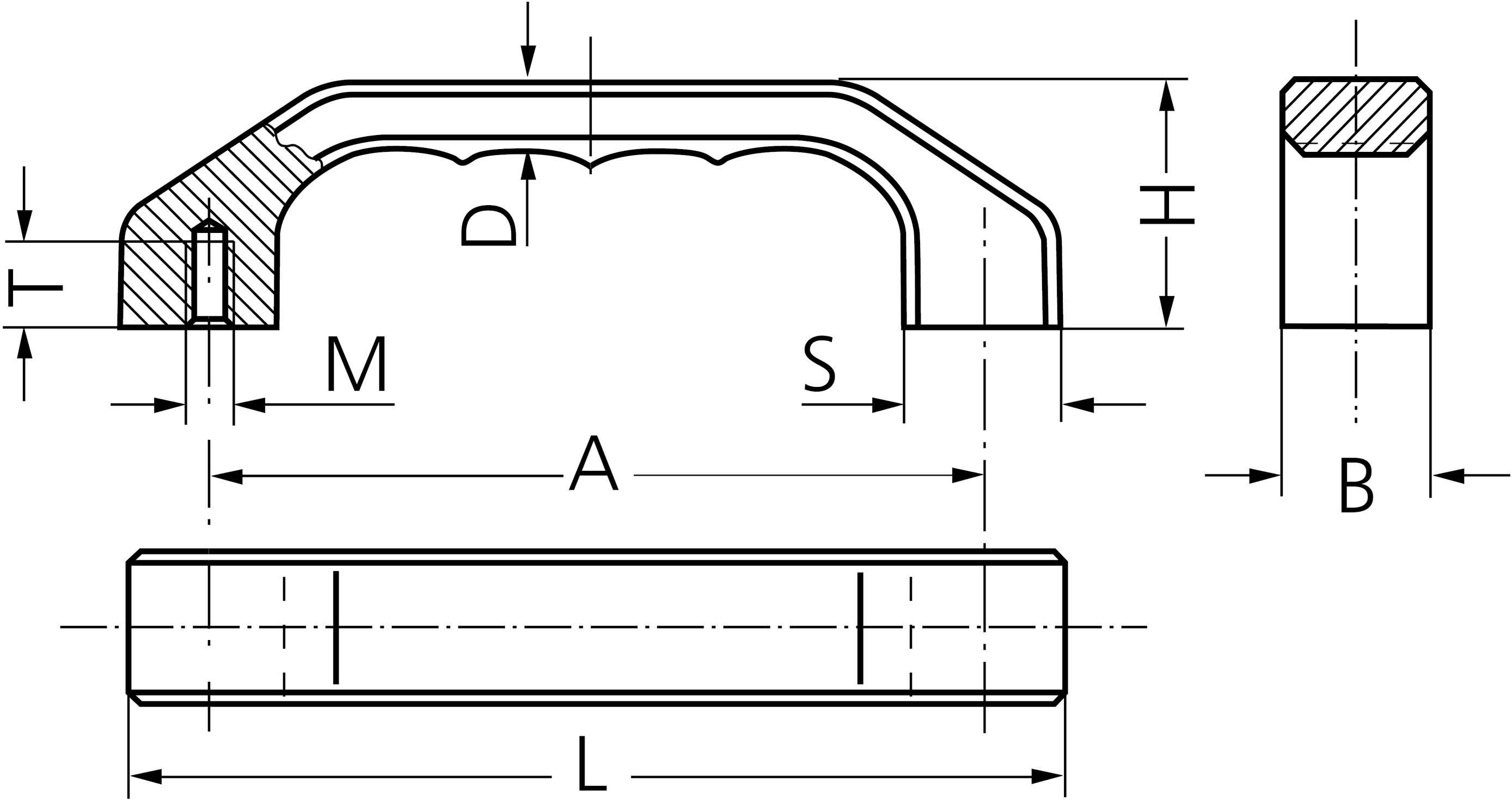

(L x W x H) 146 x 22 x 39 mm
Width
22 mm
Height
39 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle made of profile aluminum, satin and colorless anodized
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: silver
- Mounting method: Internal thread
- Series name: AG-22
- Handle type (series): Grip series AG
- Hole diameter: M6
- Dim
(L x W x H) 146 x 22 x 39 mm
- Product type
Case handle
- Material
Aluminium
- Width
22 mm
- Height
39 mm
- Length
146 mm
- Hole spacing
120 mm
- Factory colour
Silver
- Content
2 pc(s)
- Hole Ø
6 mm
- Max. load capacity
1000 N
- Type
AG-22.R120.11
Documents & Downloads
Datasheet
Datasheet 2343474 Rohde AG-22.R120.11 Case handle Silver (L x W x H) 146 x 22 x 39 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343474 Rohde AG-22.R120.11 Case handle Silver (L x W x H) 146 x 22 x 39 mm 2 pc(s)
Description
Handles similar to
The RG plastic type series
And the stainless steel series EG.
Material and surface:
Profile aluminum AlMgSi 0.5;
Particularly high-quality Eloxal -
design, glass globe-blasted,
Semi-gloss in 2 standard -
colors, as well as silver or
black powder-coated.
Type AG-R for rear side
Screw on.
AG-F type for screw mounting
From the front; this version
Performed including cylinder -
screws with hexagon socket
DIN 912, nuts DIN 934 and
Washers DIN 125
Stainless steel.
This text is machine translated.
