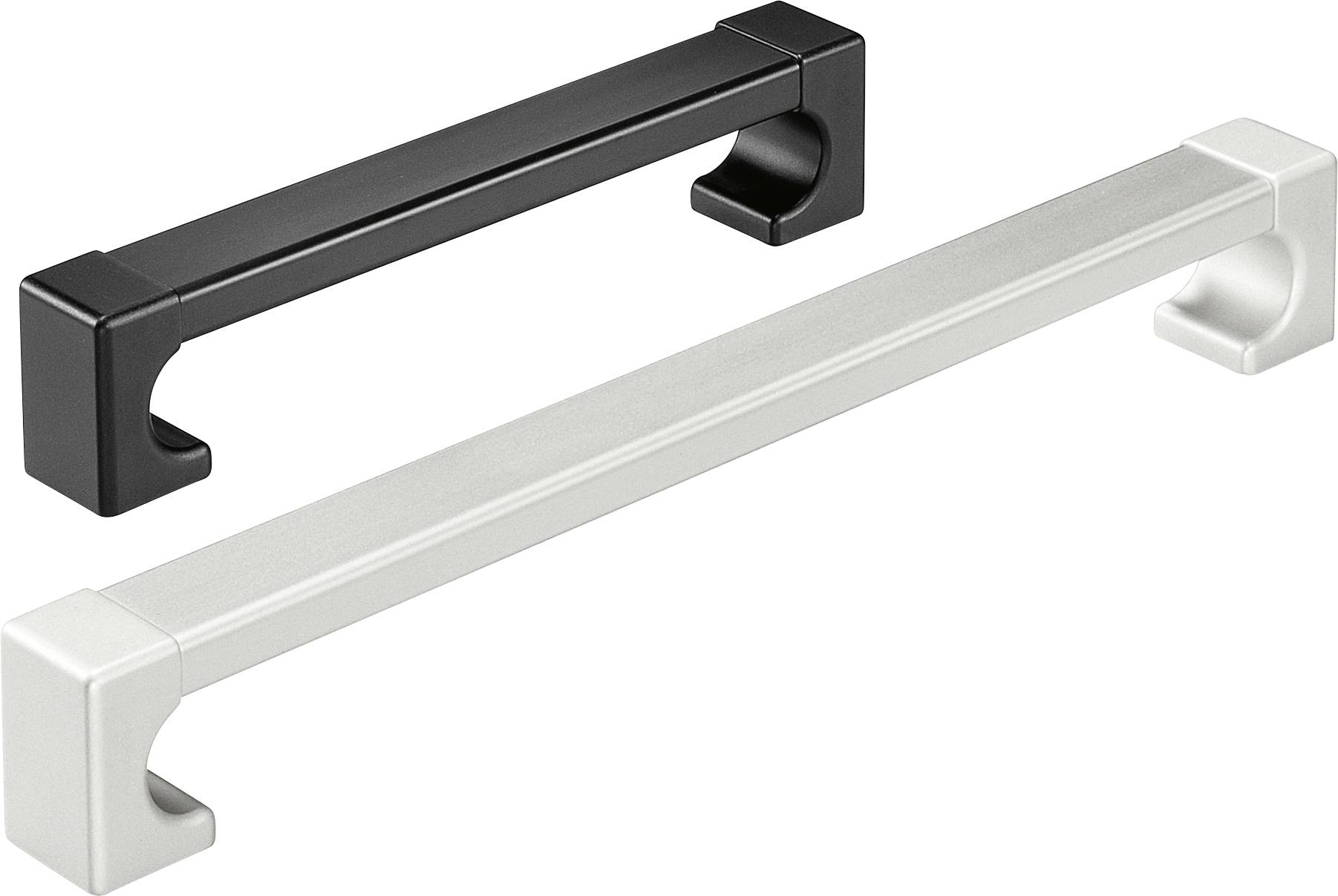

Rohde AR-36.300.N01 Case handle Silver (L x W x H) 324 x 38 x 55 mm 1 pc(s)
Product type
Case handle
Material
Aluminium
Dim
(L x W x H) 324 x 38 x 55 mm
Width
38 mm
Height
55 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle of the AR series, anodized in color
- Content: 1 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Silver side and bridge
- Mounting method: Internal thread
- Series name: AR-36
- Handle type (series): Handle series AR
- Hole diameter: M8

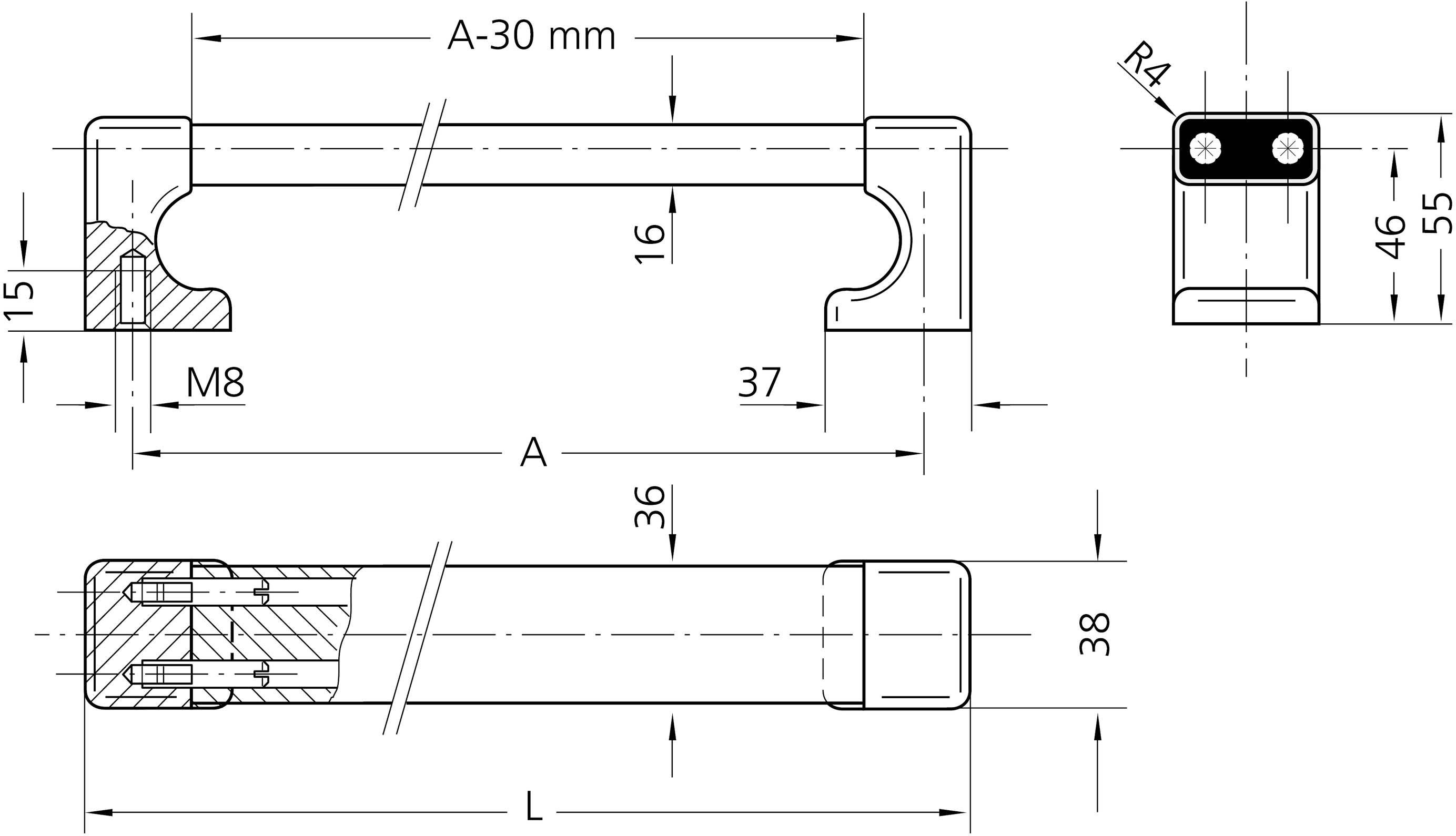

- Dim
(L x W x H) 324 x 38 x 55 mm
- Product type
Case handle
- Material
Aluminium
- Width
38 mm
- Height
55 mm
- Length
324 mm
- Hole spacing
300 mm
- Factory colour
Silver
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
AR-36.300.N01
Documents & Downloads
Datasheet
Datasheet 2343483 Rohde AR-36.300.N01 Case handle Silver (L x W x H) 324 x 38 x 55 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343483 Rohde AR-36.300.N01 Case handle Silver (L x W x H) 324 x 38 x 55 mm 1 pc(s)
Description
Made of solid aluminum
Components, especially for
Suitable for edge protection.
Material and surface:
Handle leg and handle bar
Aluminum profile AlMgSi 0.5.
Connecting pins made of stainless steel.
Handle legs fine-ground,
Matt and anodized in 2 Stan -
dark colors. Handle bar matt
And anodized in 2 standard -
colors.
Alternatively completely titanium colors
powder-coated.
This text is machine translated.
Components, especially for
Suitable for edge protection.
Material and surface:
Handle leg and handle bar
Aluminum profile AlMgSi 0.5.
Connecting pins made of stainless steel.
Handle legs fine-ground,
Matt and anodized in 2 Stan -
dark colors. Handle bar matt
And anodized in 2 standard -
colors.
Alternatively completely titanium colors
powder-coated.
This text is machine translated.
