Rohde EC-01.160.09 Case handle Orange (L x W x H) 178 x 28 x 45 mm 6 pc(s)
Product type
Case handle
Material
Polyamide
Dim
(L x W x H) 178 x 28 x 45 mm
Width
28 mm
Height
45 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle series Economy Plus made of, polyamide PA6, orange RAL 2004, without mounting material
- Content: 6 pcs
Technical specifications
- Material (material): PA6
- Manufacturer's color: orange
- Mounting method: c:Round bore
- Series name: EC-01
- Handle type (series): Economy plus grip series EC
- Hole diameter: M8

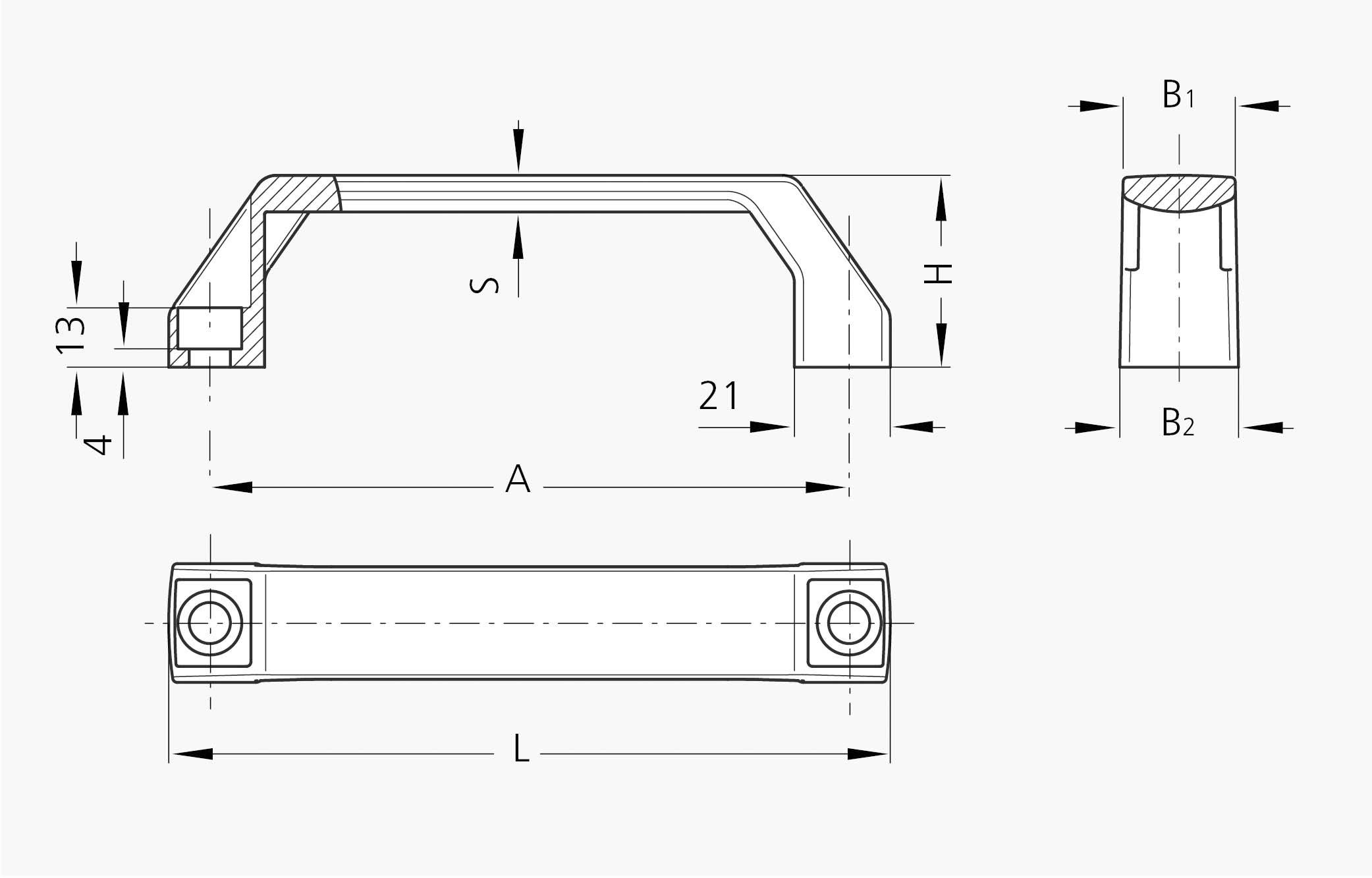

- Dim
(L x W x H) 178 x 28 x 45 mm
- Product type
Case handle
- Material
Polyamide
- Width
28 mm
- Height
45 mm
- Length
178 mm
- Hole spacing
160 mm
- Factory colour
Orange
- Content
6 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
EC-01.160.09
Documents & Downloads
Datasheet
Datasheet 2343531 Rohde EC-01.160.09 Case handle Orange (L x W x H) 178 x 28 x 45 mm 6 pc(s)
User & Safety Instructions
User & Safety Instructions 2343531 Rohde EC-01.160.09 Case handle Orange (L x W x H) 178 x 28 x 45 mm 6 pc(s)

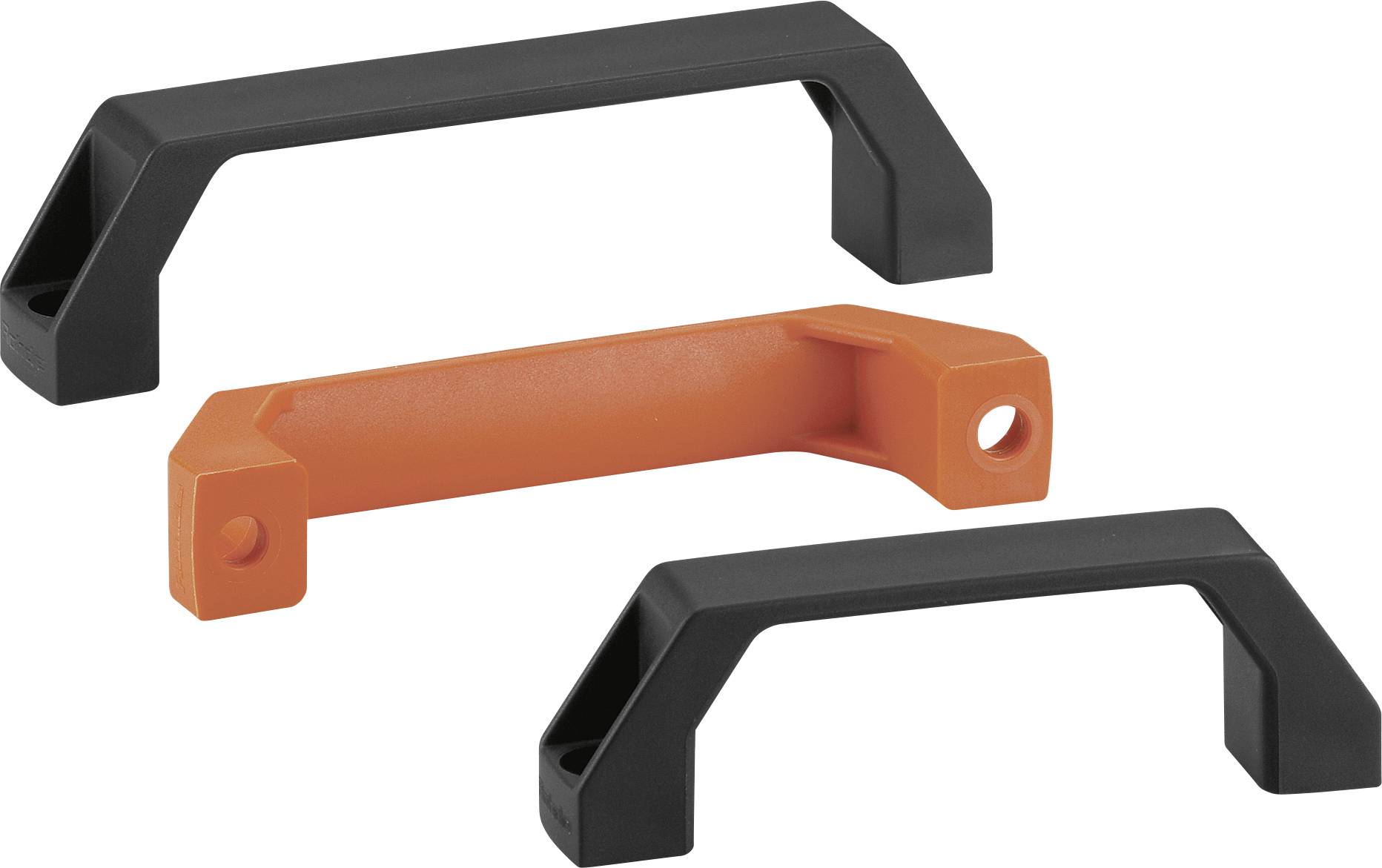

Description
Grips made of polyamide PA 6,
glass reinforced with ball, black,
Similar to RAL 9005, or orange,
Similar to RAL 2009, semi-matt with
Fine structure. Holes for
Socket head screws M8 DIN 912
Or countersunk screws M6
DIN 7991
This text is machine translated.
glass reinforced with ball, black,
Similar to RAL 9005, or orange,
Similar to RAL 2009, semi-matt with
Fine structure. Holes for
Socket head screws M8 DIN 912
Or countersunk screws M6
DIN 7991
