Rohde F2-08.040.04 Handle Black (L x W x H) 40 x 10 x 15.5 mm 14 pc(s)
Product type
Handle
Material
Aluminium
Dim
(L x W x H) 40 x 10 x 15.5 mm
Width
10 mm
Height
15.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde front panel handle bars, made of profile aluminum
- Content: 14 pcs
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: F2-08
- Handle type (series): Front plates Handle strips F
- Hole diameter: M2.5
- Dim
(L x W x H) 40 x 10 x 15.5 mm
- Product type
Handle
- Material
Aluminium
- Width
10 mm
- Height
15.5 mm
- Length
40 mm
- Factory colour
Black
- Content
14 pc(s)
- Hole Ø
2.5 mm
- Max. load capacity
100 N
- Type
F2-08.040.04
Documents & Downloads
Datasheet
Datasheet 2343612 Rohde F2-08.040.04 Handle Black (L x W x H) 40 x 10 x 15.5 mm 14 pc(s)
User & Safety Instructions
User & Safety Instructions 2343612 Rohde F2-08.040.04 Handle Black (L x W x H) 40 x 10 x 15.5 mm 14 pc(s)
Description
Universal handles
For partial front panels in pitch
5.08 mm = 1 TE (division unit).
Material and surface:
Aluminum profile AIMgSi 0.5;
slide-ground, matt and
natural or black
anodized.

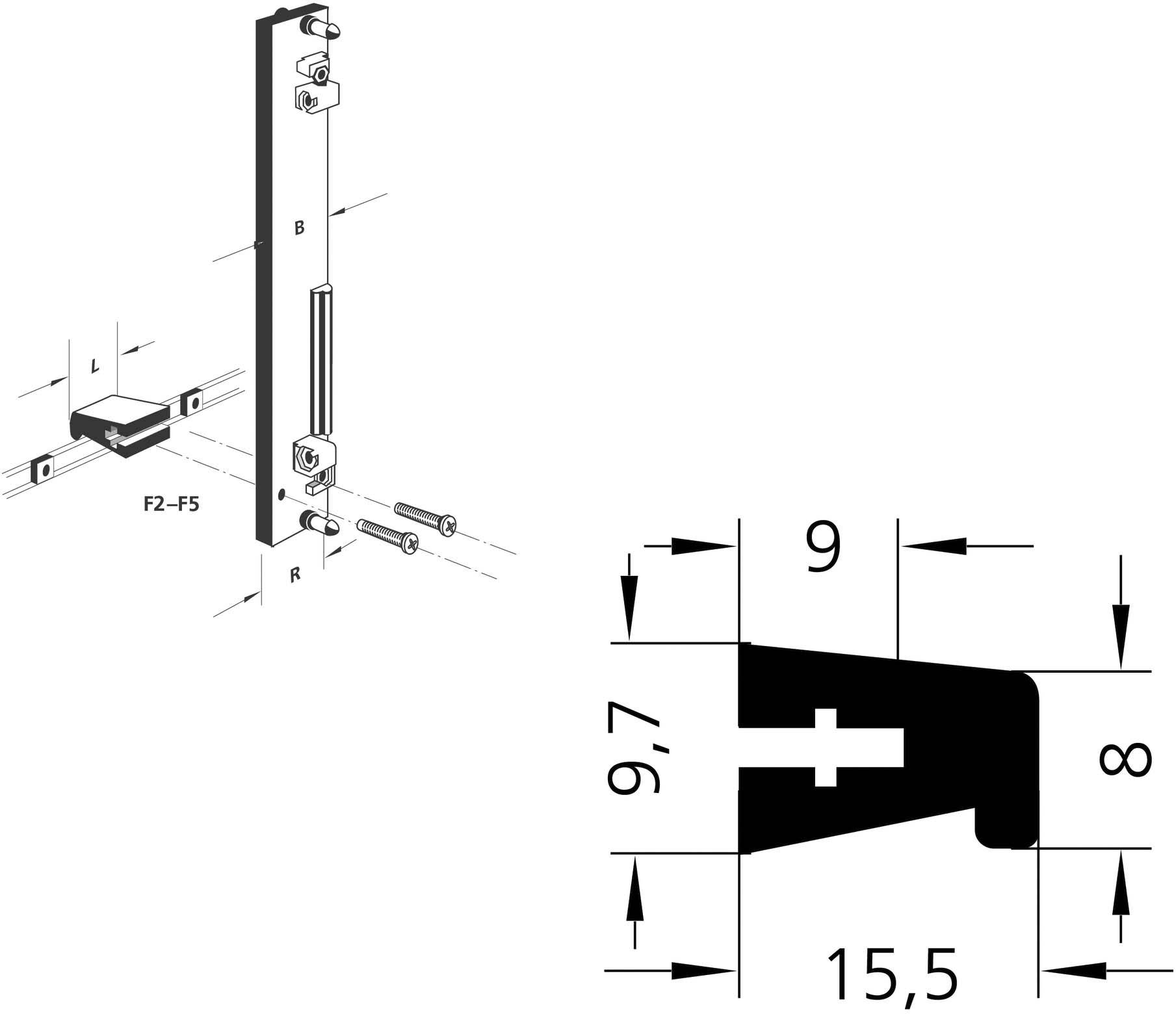

Mounting instructions:
All types of front panel handles
F2-F5 have a keyway
For M2.5 suitable for
Screw heads according to DIN 933
Or nuts according to DIN 439,
562 and 934, suitable for the
Standardized card angle mounting.
This text is machine translated.
For partial front panels in pitch
5.08 mm = 1 TE (division unit).
Material and surface:
Aluminum profile AIMgSi 0.5;
slide-ground, matt and
natural or black
anodized.
Mounting instructions:
All types of front panel handles
F2-F5 have a keyway
For M2.5 suitable for
Screw heads according to DIN 933
Or nuts according to DIN 439,
562 and 934, suitable for the
Standardized card angle mounting.
This text is machine translated.
