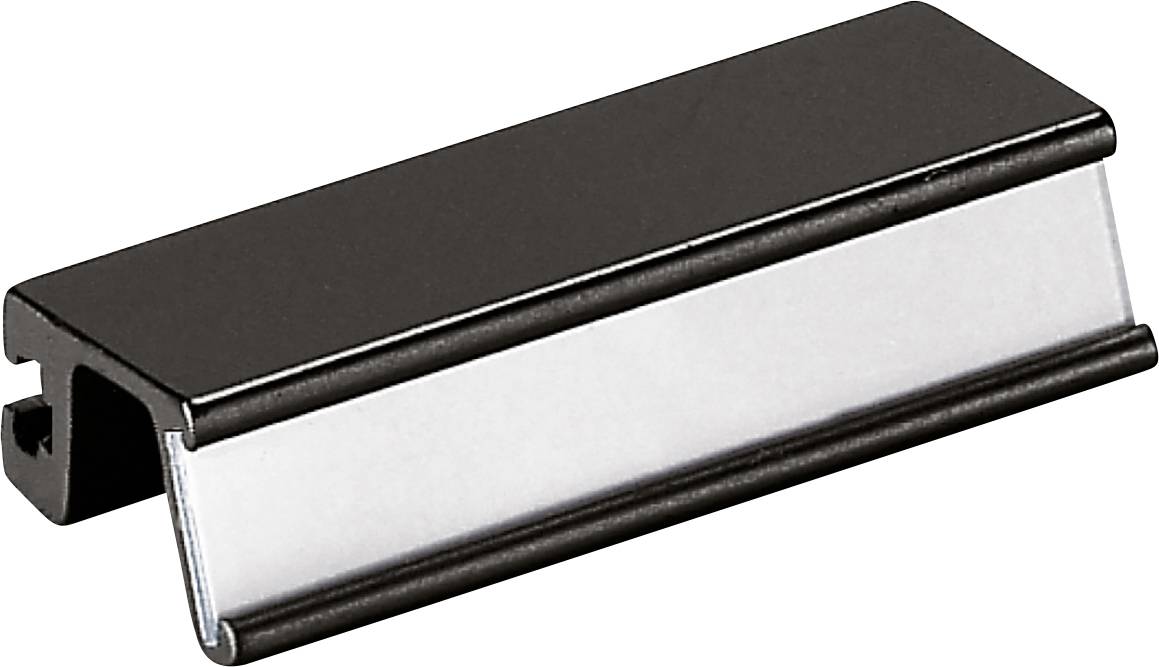

Image similar
Rohde F3-20.101.01 Handle Silver (L x W x H) 101 x 10 x 21.5 mm 12 pc(s)
Product type
Handle
Material
Aluminium
Dim
(L x W x H) 101 x 10 x 21.5 mm
Width
10 mm
Height
21.5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde front panel handle bars, made of profile aluminum
- Content: 12 pcs
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: silver
- Mounting method: Internal thread
- Series name: F3-20
- Handle type (series): Front plates Handle strips F
- Hole diameter: M2.5
- Dim
(L x W x H) 101 x 10 x 21.5 mm
- Product type
Handle
- Material
Aluminium
- Width
10 mm
- Height
21.5 mm
- Length
101 mm
- Factory colour
Silver
- Content
12 pc(s)
- Hole Ø
2.5 mm
- Max. load capacity
100 N
- Type
F3-20.101.01
Documents & Downloads
Datasheet
Datasheet 2343639 Rohde F3-20.101.01 Handle Silver (L x W x H) 101 x 10 x 21.5 mm 12 pc(s)
User & Safety Instructions
User & Safety Instructions 2343639 Rohde F3-20.101.01 Handle Silver (L x W x H) 101 x 10 x 21.5 mm 12 pc(s)
Description
Universal handles
For partial front panels in pitch
5.08 mm = 1 TE (division unit).
Material and surface:
Aluminum profile AIMgSi 0.5;
slide-ground, matt and
natural or black
anodized.

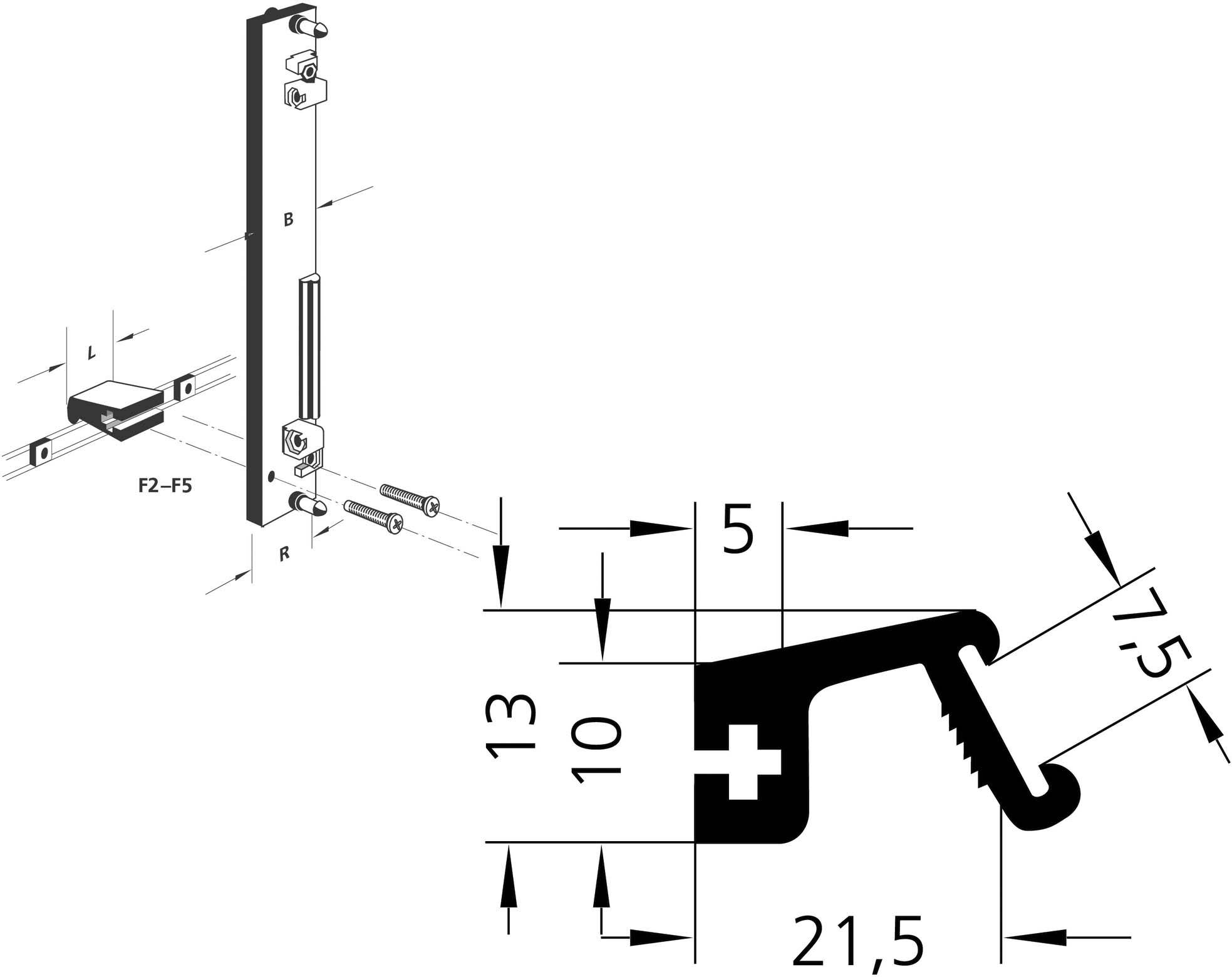

Mounting instructions:
All types of front panel handles
F2-F5 have a keyway
For M2.5 suitable for
Screw heads according to DIN 933
Or nuts according to DIN 439,
562 and 934, suitable for the
Standardized card angle mounting.
