Rohde HH-25.300.54 Rod handle Black (L x W x H) 340 x 25 x 100 mm 1 pc(s)
Product type
Rod handle
Material
Aluminium
Dim
(L x W x H) 340 x 25 x 100 mm
Width
25 mm
Height
100 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde tube handle - pluggable -, leg+tube (Dm25mm)Aluminum, black powder-layered
- Content: 1 pcs.
Technical specifications
- Surface treatment: Powder coated
- Material (material): AlMgSi 0.5
- Manufacturer color: Black side and bridge
- Mounting method: c:Round bore
- Series name: HH-25
- Handle type (series): Handle series HH
- Hole diameter: M8
- Dim
(L x W x H) 340 x 25 x 100 mm
- Product type
Rod handle
- Material
Aluminium
- Width
25 mm
- Height
100 mm
- Length
340 mm
- Hole spacing
300 mm
- Factory colour
Black
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
HH-25.300.54
Documents & Downloads
Datasheet
Datasheet 2343697 Rohde HH-25.300.54 Rod handle Black (L x W x H) 340 x 25 x 100 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343697 Rohde HH-25.300.54 Rod handle Black (L x W x H) 340 x 25 x 100 mm 1 pc(s)
Description

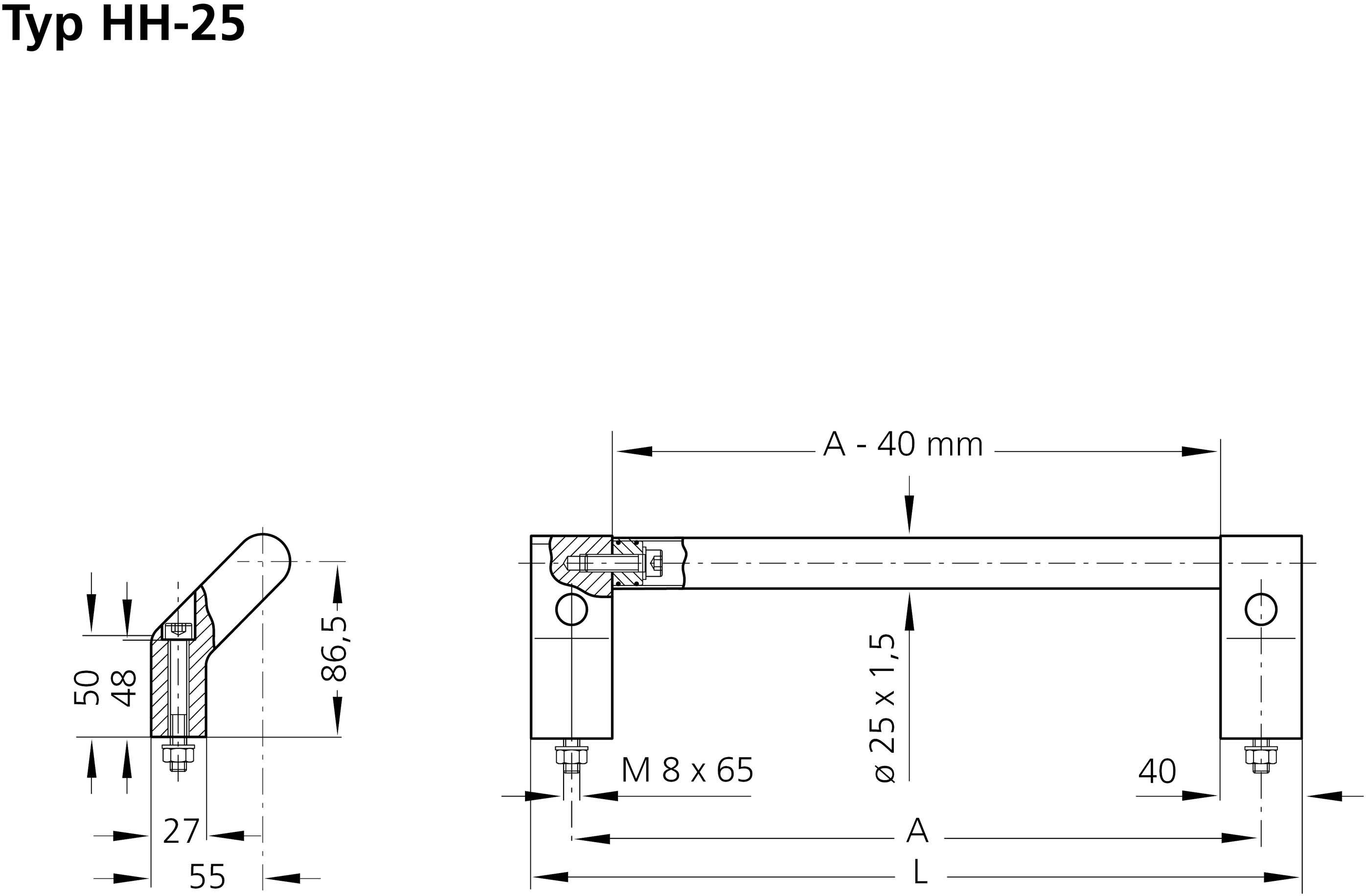

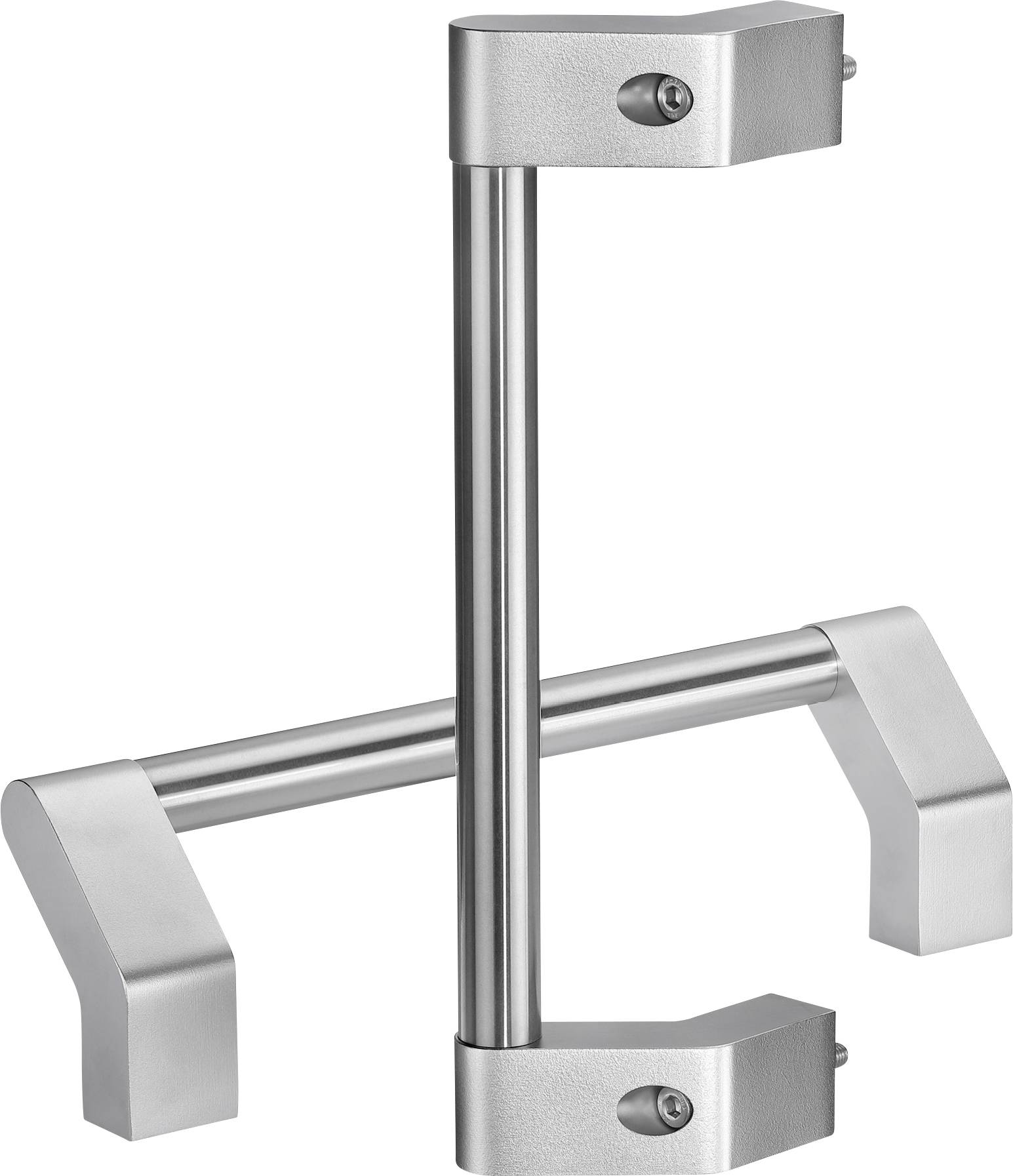

Push-together tube handles
For difficult-to-access corner areas
and past
Machine doors.
Type A:
Handle legs made of extruded aluminum AlMgSi 0.5;
matt gloss, black anodized.
Pipe and pipe connecting screws made of stainless steel; pipe
fine-ground.
Type B:
All components made of aluminum
AlMgSi 0.5; black powder coated with fine structure;
Pipe connection screws
Made of stainless steel.
This text is machine translated.
For difficult-to-access corner areas
and past
Machine doors.
Type A:
Handle legs made of extruded aluminum AlMgSi 0.5;
matt gloss, black anodized.
Pipe and pipe connecting screws made of stainless steel; pipe
fine-ground.
Type B:
All components made of aluminum
AlMgSi 0.5; black powder coated with fine structure;
Pipe connection screws
Made of stainless steel.
This text is machine translated.
Scope of delivery
- Delivery scope
- Handle type HH-25 for mounting
- Incl. Allen screws with
- Hexagon socket M8 x 65 DIN
- 912, nuts and support -
- stainless steel discs
- Other
- Handle types without mounting material.
