Rohde KG-16.200.14 Universal handle Black (L x W x H) 216 x 16 x 98 mm 1 pc(s)
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 216 x 16 x 98 mm
Width
16 mm
Height
98 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

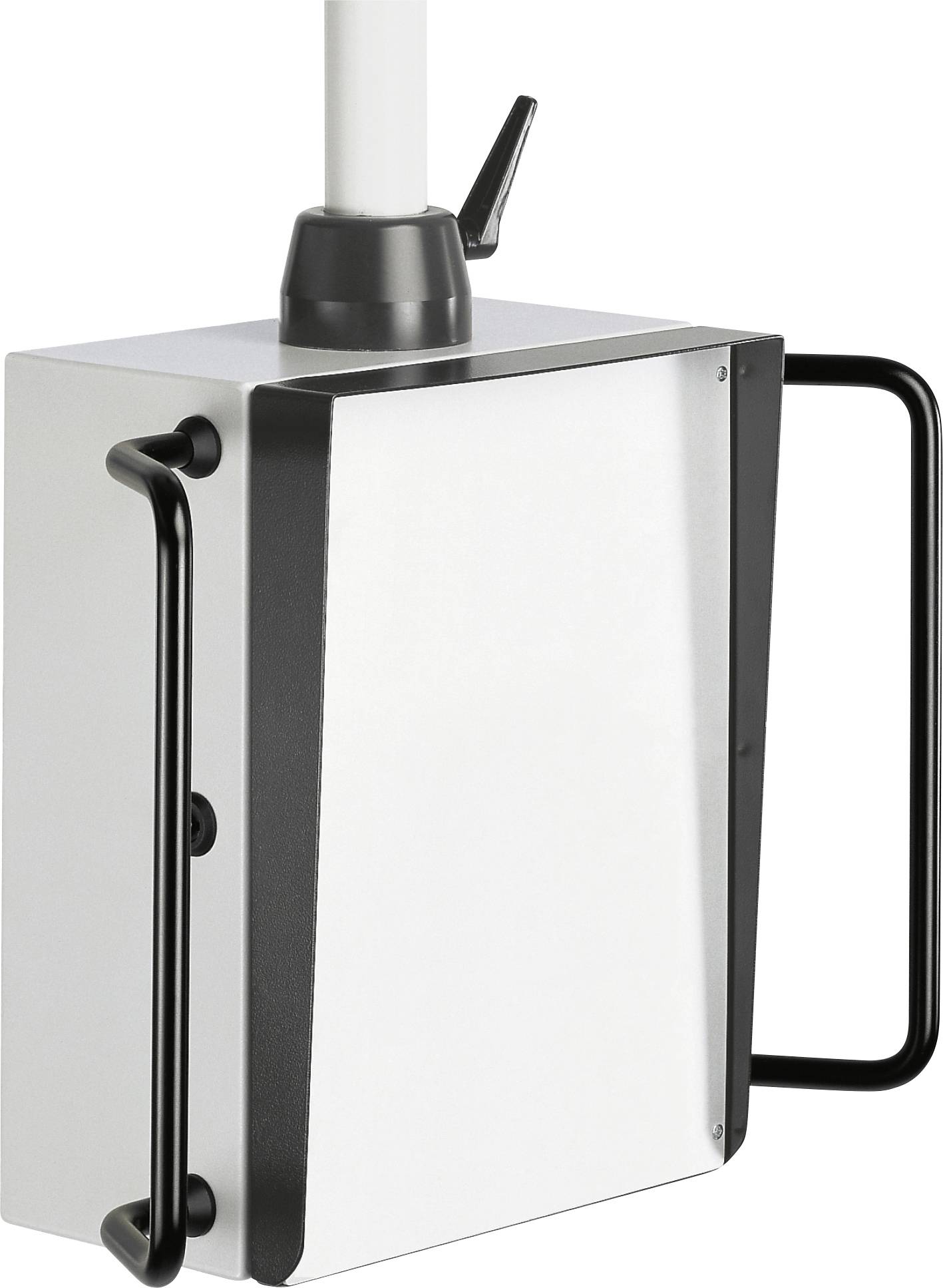

Rohde Command housing handle, made of round aluminum
- Content: 1 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: KG-16
- Handle type (series): Kg
- Hole diameter: M8
- Dim
(L x W x H) 216 x 16 x 98 mm
- Product type
Universal handle
- Material
Aluminium
- Width
16 mm
- Height
98 mm
- Length
216 mm
- Hole spacing
200 mm
- Factory colour
Black
- Content
1 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
KG-16.200.14
Documents & Downloads
Datasheet
Datasheet 2343717 Rohde KG-16.200.14 Universal handle Black (L x W x H) 216 x 16 x 98 mm 1 pc(s)
User & Safety Instructions
User & Safety Instructions 2343717 Rohde KG-16.200.14 Universal handle Black (L x W x H) 216 x 16 x 98 mm 1 pc(s)
Description
Material and surface:
Aluminum AIMgSi 0.5;
ground, glass globe blasted
and matt-gloss black
anodized.
This text is machine translated.
Aluminum AIMgSi 0.5;
ground, glass globe blasted
and matt-gloss black
anodized.
This text is machine translated.
