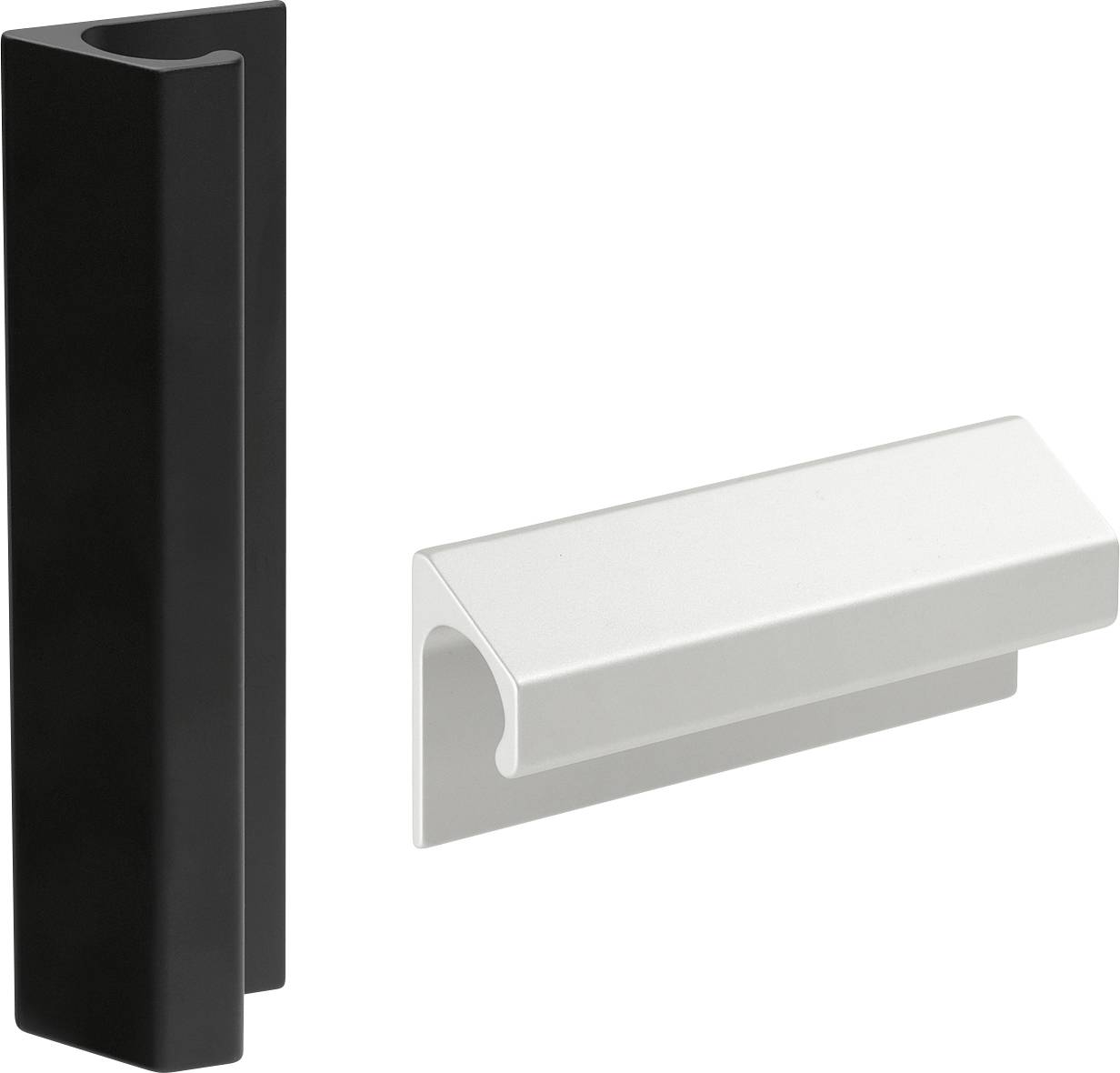

Image similar
Rohde LF-02.200.04 Grab rail Black (L x W x H) 220 x 27 x 60 mm 3 pc(s)
Product type
Grab rail
Material
Aluminium
Dim
(L x W x H) 220 x 27 x 60 mm
Width
27 mm
Height
60 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde handle made of profile aluminum, rear mounting, black anodized, A = 200mm
- Content: 3 pieces
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: LF-02
- Handle type (series): Grip series LF-02 Bar grip
- Hole diameter: M5
- Dim
(L x W x H) 220 x 27 x 60 mm
- Product type
Grab rail
- Material
Aluminium
- Width
27 mm
- Height
60 mm
- Length
220 mm
- Hole spacing
200 mm
- Factory colour
Black
- Content
3 pc(s)
- Hole Ø
5 mm
- Max. load capacity
500 N
- Type
LF-02.200.04
Documents & Downloads
Datasheet
Datasheet 2343743 Rohde LF-02.200.04 Grab rail Black (L x W x H) 220 x 27 x 60 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2343743 Rohde LF-02.200.04 Grab rail Black (L x W x H) 220 x 27 x 60 mm 3 pc(s)
Description
Material and surface:
Handle made of profile aluminum AlMgSi 0.5; sliding-ground, matt and natural colors or black anodized.
Note:
Any grip lengths and surfaces on request.
Load capacity:
min 500 N.
This text is machine translated.
Handle made of profile aluminum AlMgSi 0.5; sliding-ground, matt and natural colors or black anodized.
Note:
Any grip lengths and surfaces on request.
Load capacity:
min 500 N.
This text is machine translated.
Scope of delivery
- Material and surface:
- Profile aluminum AlMgSi 0.5
- slide-ground, matt and
- natural or black
- anodized.
