Rohde LG-07.070.04 Universal handle Black (L x W x H) 90 x 13 x 33 mm 4 pc(s)
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 90 x 13 x 33 mm
Width
13 mm
Height
33 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details

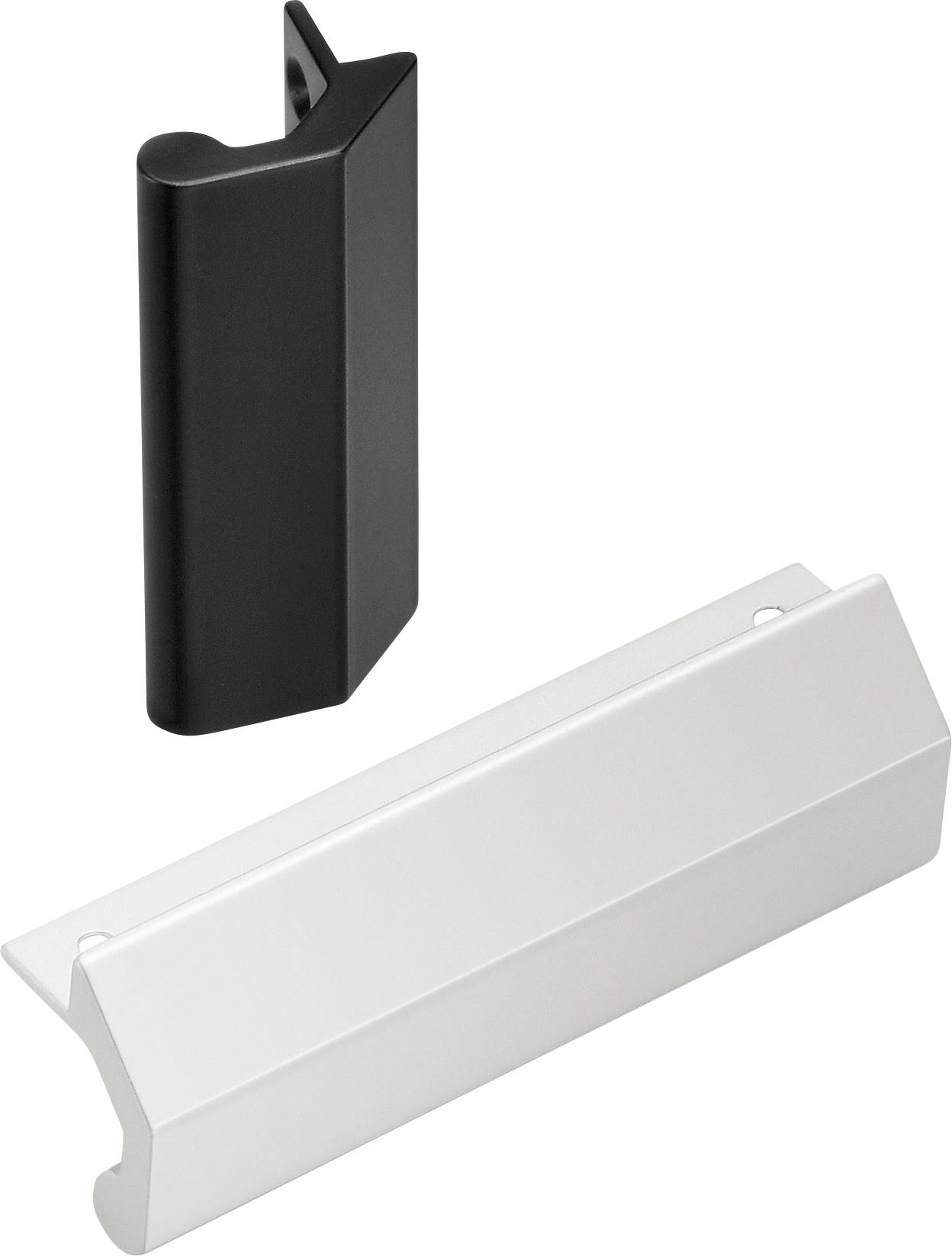

Rohde Bar grip for outer edges, made of profile aluminum, black anodized
- Content: 4 pieces
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: c:Round bore
- Series name: LG-07
- Handle type (series): LG-07
- Hole diameter: M4
- Dim
(L x W x H) 90 x 13 x 33 mm
- Product type
Universal handle
- Material
Aluminium
- Width
13 mm
- Height
33 mm
- Length
90 mm
- Hole spacing
70 mm
- Factory colour
Black
- Content
4 pc(s)
- Hole Ø
4 mm
- Max. load capacity
200 N
- Type
LG-07.070.04
Documents & Downloads
Datasheet
Datasheet 2343801 Rohde LG-07.070.04 Universal handle Black (L x W x H) 90 x 13 x 33 mm 4 pc(s)
User & Safety Instructions
User & Safety Instructions 2343801 Rohde LG-07.070.04 Universal handle Black (L x W x H) 90 x 13 x 33 mm 4 pc(s)
Description

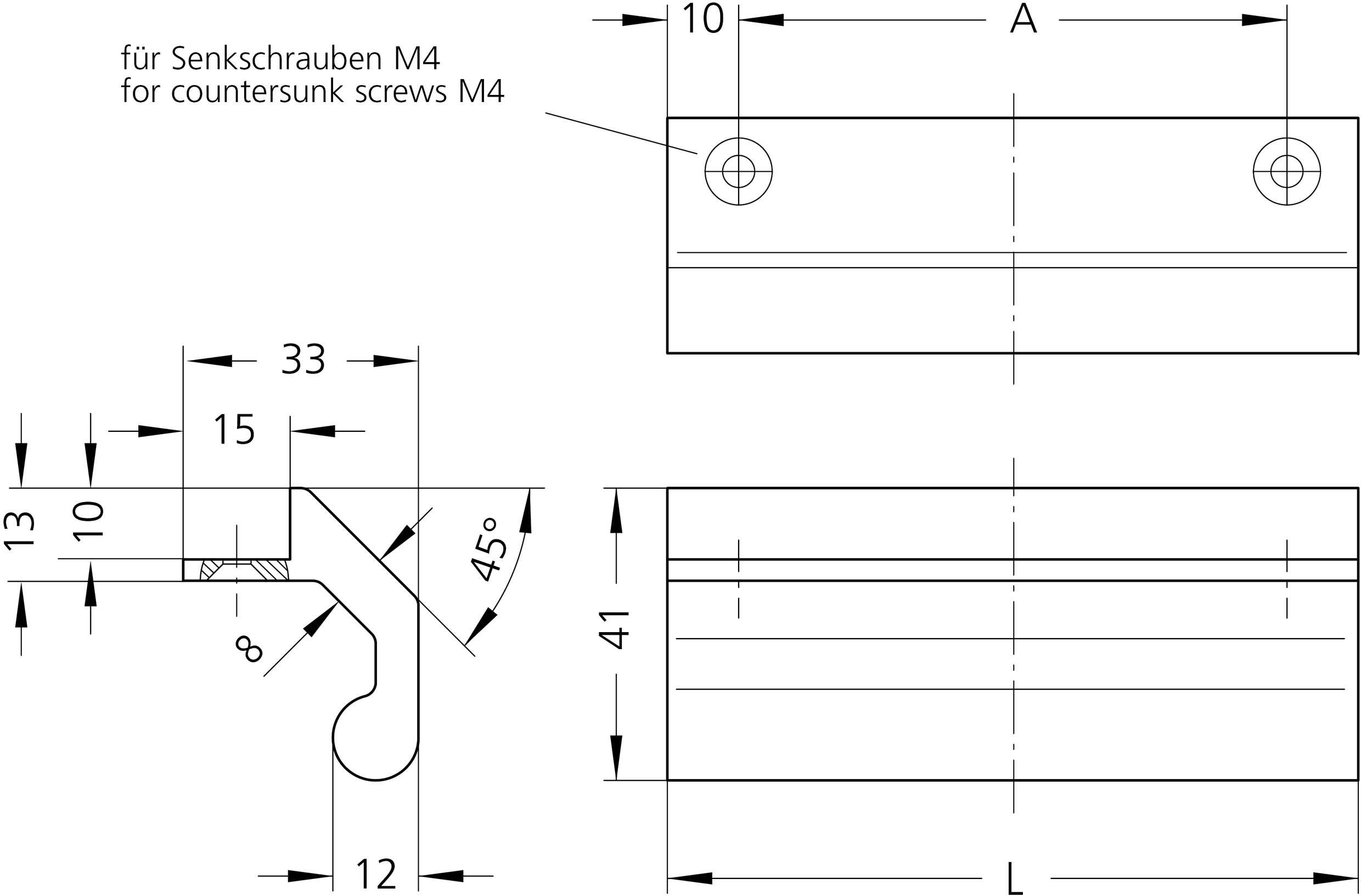

Grab rail for attachment to housing, table and other outer edges.
Material and surface:
Profile aluminum AlMgSi 0.5; slide-ground, matt and natural colors or black anodized.
Note:
Any other handle lengths and colors on request.
Load capacity:
min 200 N.
This text is machine translated.
Material and surface:
Profile aluminum AlMgSi 0.5; slide-ground, matt and natural colors or black anodized.
Note:
Any other handle lengths and colors on request.
Load capacity:
min 200 N.
This text is machine translated.
