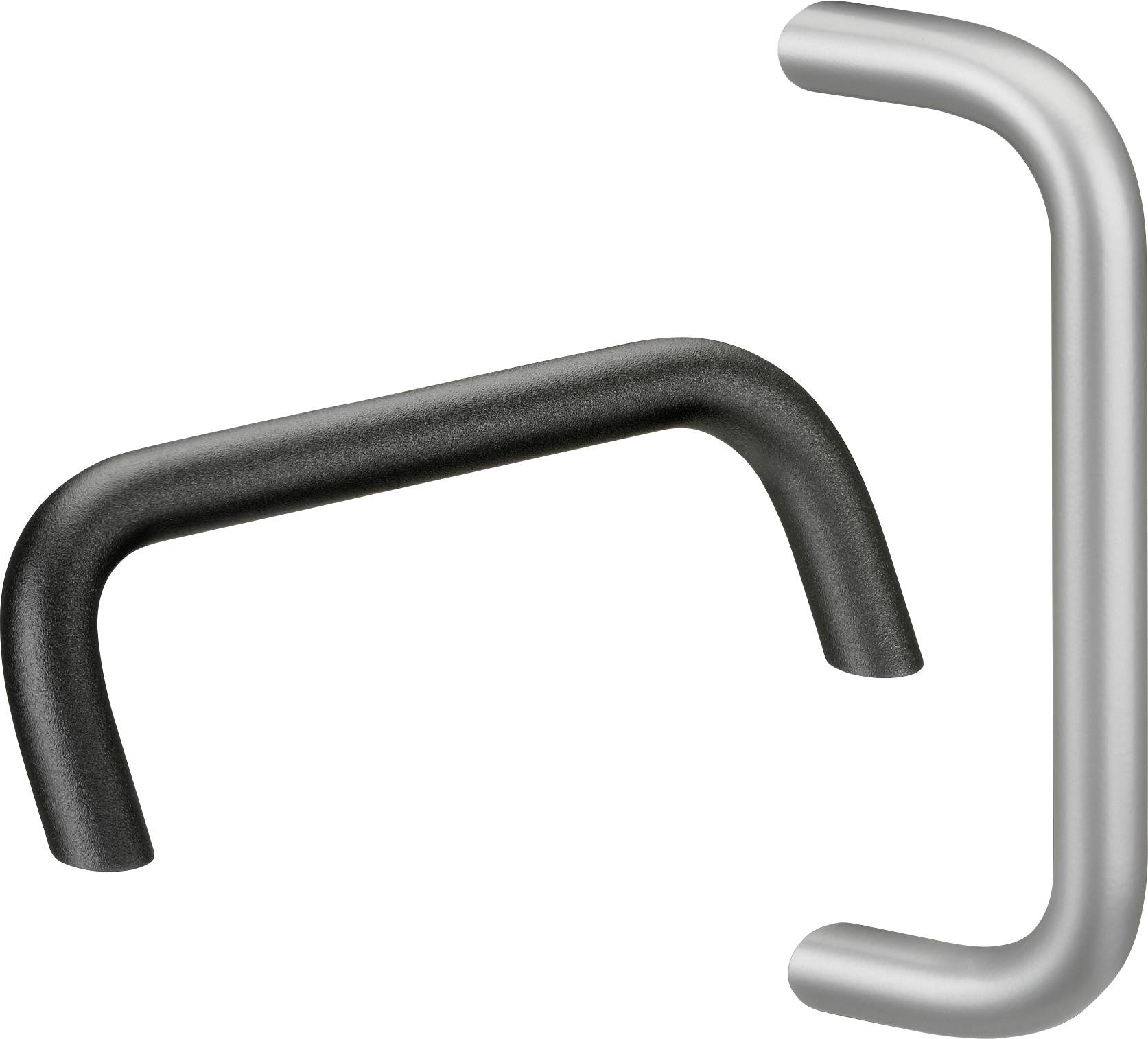

Rohde M1-20.R250.14 Machine handle Black (L x W x H) 270 x 20 x 70 mm 2 pc(s)
Product type
Machine handle
Material
Aluminium
Dim
(L x W x H) 270 x 20 x 70 mm
Width
20 mm
Height
70 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde machine handle off, round aluminum
- Content 2 pcs.
Technical specifications
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5
- Manufacturer color: Black
- Mounting method: Internal thread
- Series name: M1-20
- Handle type (series): Machine and command case handles M1
- Hole diameter: M8
- Dim
(L x W x H) 270 x 20 x 70 mm
- Product type
Machine handle
- Material
Aluminium
- Width
20 mm
- Height
70 mm
- Length
270 mm
- Hole spacing
250 mm
- Factory colour
Black
- Content
2 pc(s)
- Hole Ø
8 mm
- Max. load capacity
1000 N
- Type
M1-20.R250.14
Documents & Downloads
Datasheet
Datasheet 2343811 Rohde M1-20.R250.14 Machine handle Black (L x W x H) 270 x 20 x 70 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2343811 Rohde M1-20.R250.14 Machine handle Black (L x W x H) 270 x 20 x 70 mm 2 pc(s)
Description
Material and surface:
Aluminum AlMgSi 0.5;
ground, glass ball-blasted
and matt-gloss anodized in
2 colors.
This text is machine translated.
Aluminum AlMgSi 0.5;
ground, glass ball-blasted
and matt-gloss anodized in
2 colors.
This text is machine translated.
Scope of delivery
- Delivery scope

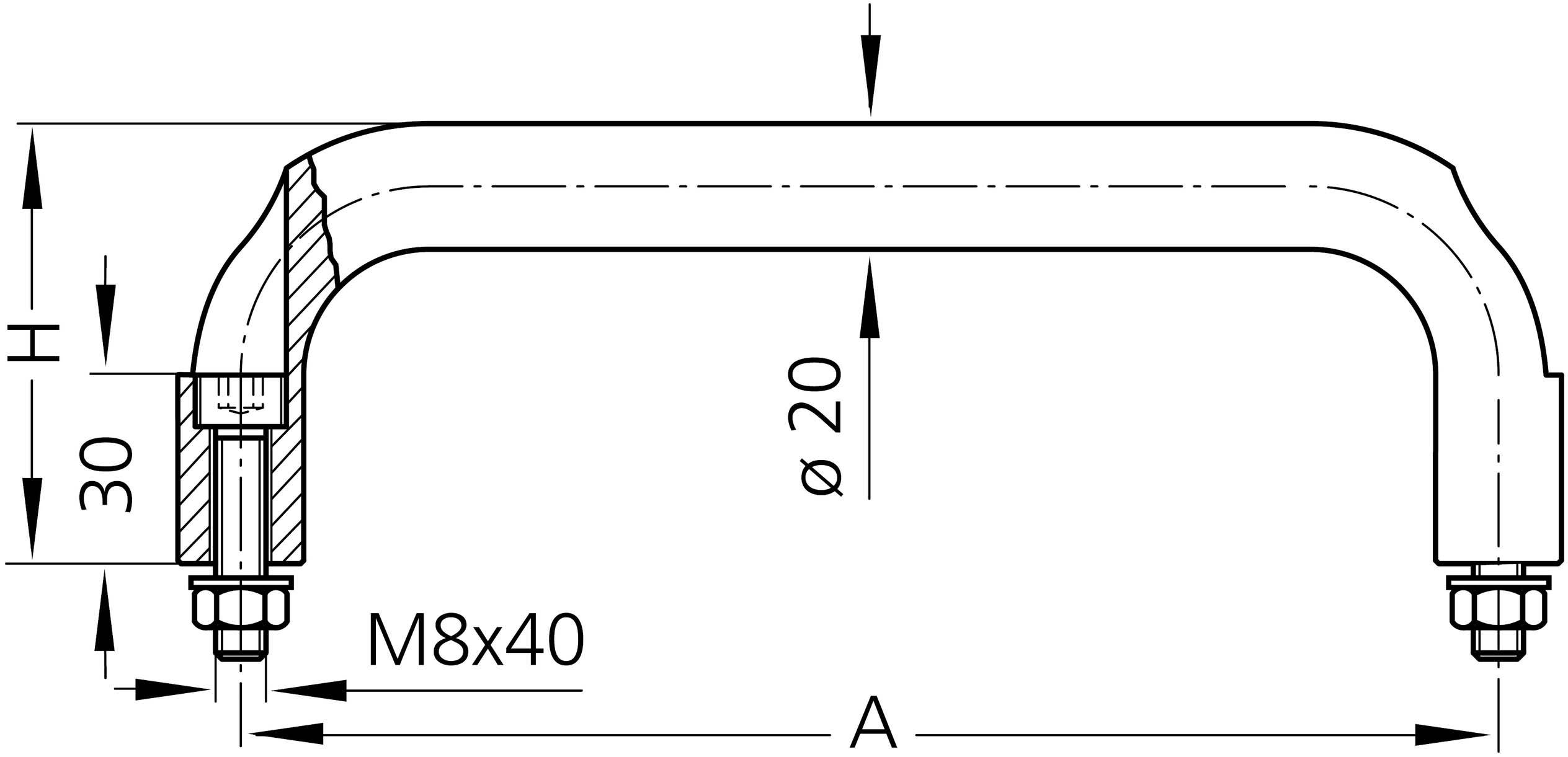

- Handle type M1-20.F incl. stainless steel socket head screws DIN 912, M8 x 40,
- Nuts DIN 934 and washers DIN 125.
- Lenses optional,
- Ø 20, as shown.
