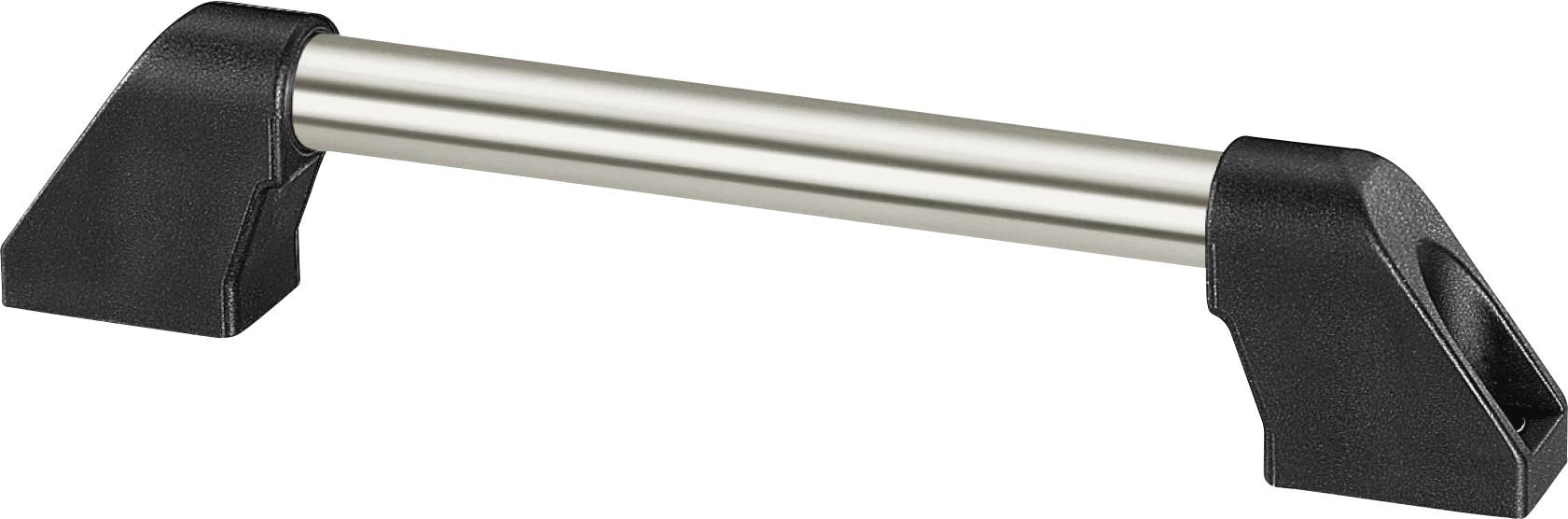

Rohde RP-20.250.62 Universal handle Black, Silver (L x W x H) 274 x 20 x 55 mm 3 pc(s)
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 274 x 20 x 55 mm
Width
20 mm
Height
55 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde machine handle, can be plugged together, incl. BEF. Material
- Content: 3 pieces
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: c:Round bore
- Series name: RP-20
- Grip type (series): Grip series RP
- Hole diameter: M8
- Dim
(L x W x H) 274 x 20 x 55 mm
- Product type
Universal handle
- Material
Aluminium
- Width
20 mm
- Height
55 mm
- Length
274 mm
- Hole spacing
250 mm
- Factory colour
Black
Silver
- Content
3 pc(s)
- Hole Ø
8 mm
- Max. load capacity
500 N
- Type
RP-20.250.62
Documents & Downloads
Datasheet
Datasheet 2344179 Rohde RP-20.250.62 Universal handle Black, Silver (L x W x H) 274 x 20 x 55 mm 3 pc(s)
User & Safety Instructions
User & Safety Instructions 2344179 Rohde RP-20.250.62 Universal handle Black, Silver (L x W x H) 274 x 20 x 55 mm 3 pc(s)
Description
Material:
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced, black, similar
RAL 9005, semi-matt, with fine structure. Connecting pipes
Aluminum AlMgSi 0.5.
Design features:
The grip leg RP has in the
Pipe mounting area 4 clamping strips, when pressing the in
Round tubes are cut off
and achieve a precise fit
Seat.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
This text is machine translated.
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced, black, similar
RAL 9005, semi-matt, with fine structure. Connecting pipes
Aluminum AlMgSi 0.5.
Design features:
The grip leg RP has in the
Pipe mounting area 4 clamping strips, when pressing the in
Round tubes are cut off
and achieve a precise fit
Seat.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
This text is machine translated.
Scope of delivery
- Delivery scope
- Includes black zinc plated
- Countersunk screws (chrome VI free)
- With inner hexagon M8 x 20
- DIN 7991, galvanized below leg -
- din 125 washers and nuts
- DIN 934
