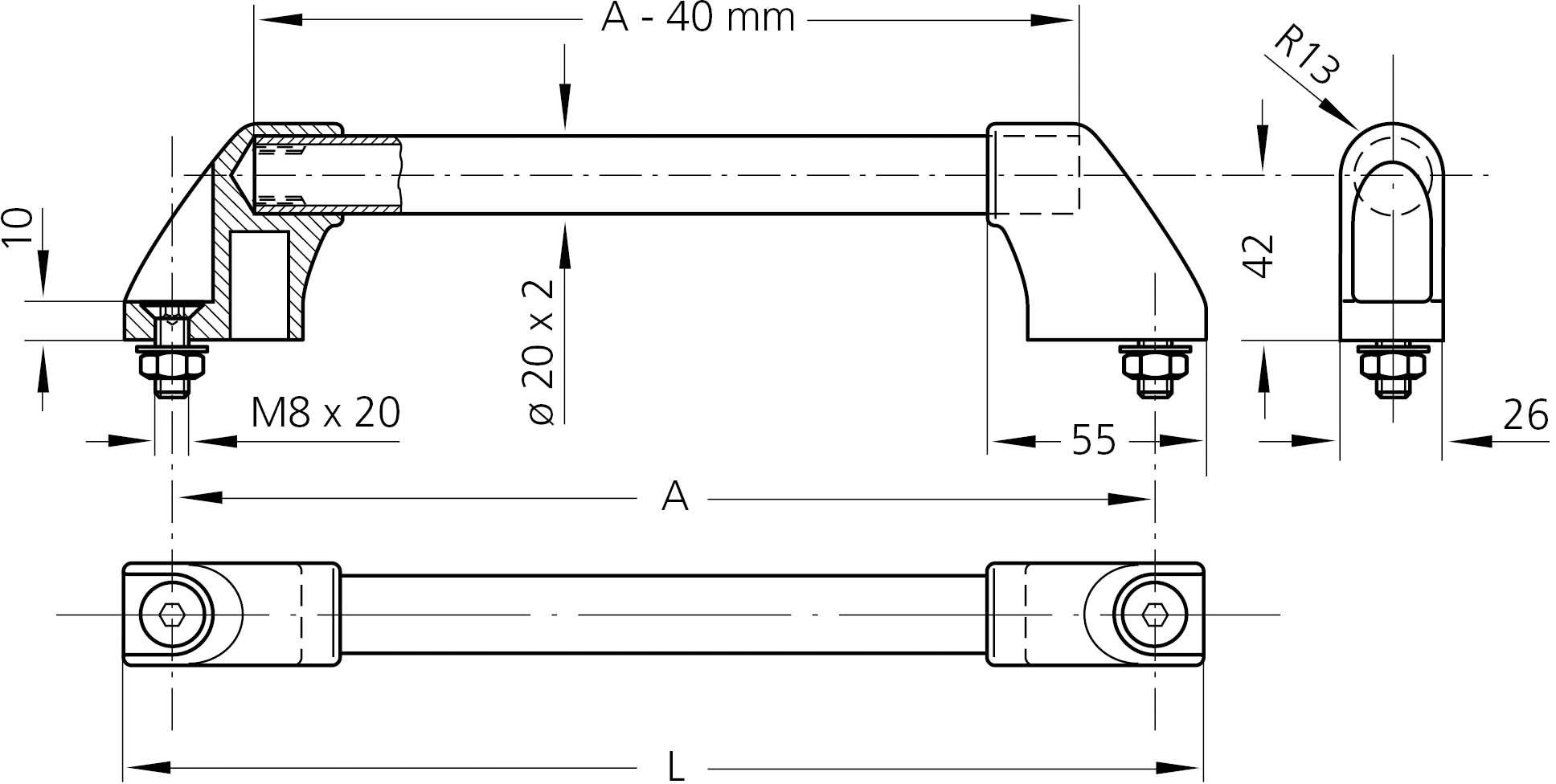

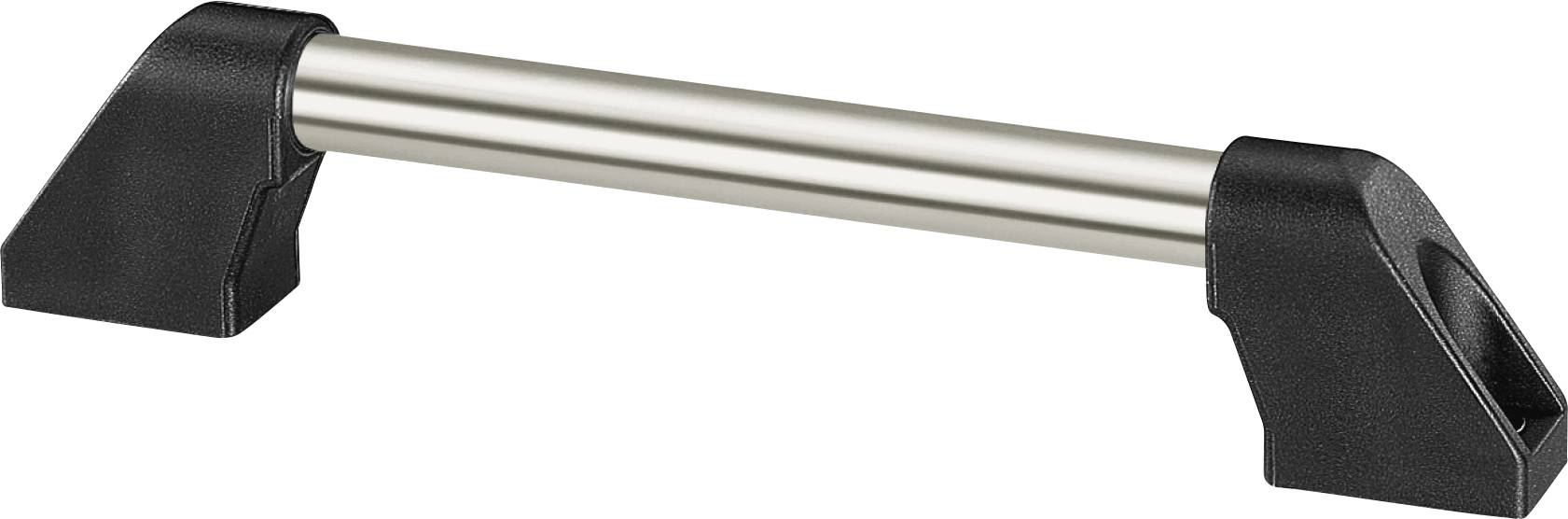

Image similar
Rohde RP-20.500.62 Universal handle Black, Silver (L x W x H) 524 x 20 x 55 mm 2 pc(s)
Product type
Universal handle
Material
Aluminium
Dim
(L x W x H) 524 x 20 x 55 mm
Width
20 mm
Height
55 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
Rohde machine handle, can be plugged together
- Content 2 pcs.
Technical specifications
- Version: A
- Surface treatment: Anodized
- Material (material): AlMgSi 0.5, PA6
- Manufacturer's color: Thigh black bridge silver
- Mounting method: c:Round bore
- Series name: RP-20
- Grip type (series): Grip series RP
- Hole diameter: M8
- Dim
(L x W x H) 524 x 20 x 55 mm
- Product type
Universal handle
- Material
Aluminium
- Width
20 mm
- Height
55 mm
- Length
524 mm
- Hole spacing
500 mm
- Factory colour
Black
Silver
- Content
2 pc(s)
- Hole Ø
8 mm
- Max. load capacity
500 N
- Type
RP-20.500.62
Documents & Downloads
Datasheet
Datasheet 2344187 Rohde RP-20.500.62 Universal handle Black, Silver (L x W x H) 524 x 20 x 55 mm 2 pc(s)
User & Safety Instructions
User & Safety Instructions 2344187 Rohde RP-20.500.62 Universal handle Black, Silver (L x W x H) 524 x 20 x 55 mm 2 pc(s)
Description
Material:
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced, black, similar
RAL 9005, semi-matt, with fine structure. Connecting pipes
Aluminum AlMgSi 0.5.
Design features:
The grip leg RP has in the
Pipe mounting area 4 clamping strips, when pressing the in
Round tubes are cut off
and achieve a precise fit
Seat.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
This text is machine translated.
Handle legs made of heavy-duty
Polyamide PA 6, glass-ball reinforced, black, similar
RAL 9005, semi-matt, with fine structure. Connecting pipes
Aluminum AlMgSi 0.5.
Design features:
The grip leg RP has in the
Pipe mounting area 4 clamping strips, when pressing the in
Round tubes are cut off
and achieve a precise fit
Seat.
Type A:
Connection pipe ground and
Anodised with natural colours
Type B:
Connection pipe with corrugated
Plastic cover.
This text is machine translated.
Scope of delivery
- Delivery scope
- Includes black zinc plated
- Countersunk screws (chrome VI free)
- With inner hexagon M8 x 20
- DIN 7991, galvanized below leg -
- din 125 washers and nuts
- DIN 934
