Name: Roline 19" wall cabinet (W x H x D) 600 x 912 x 600 mm 18 U Grey
Brand: Roline
SKU: 3414678

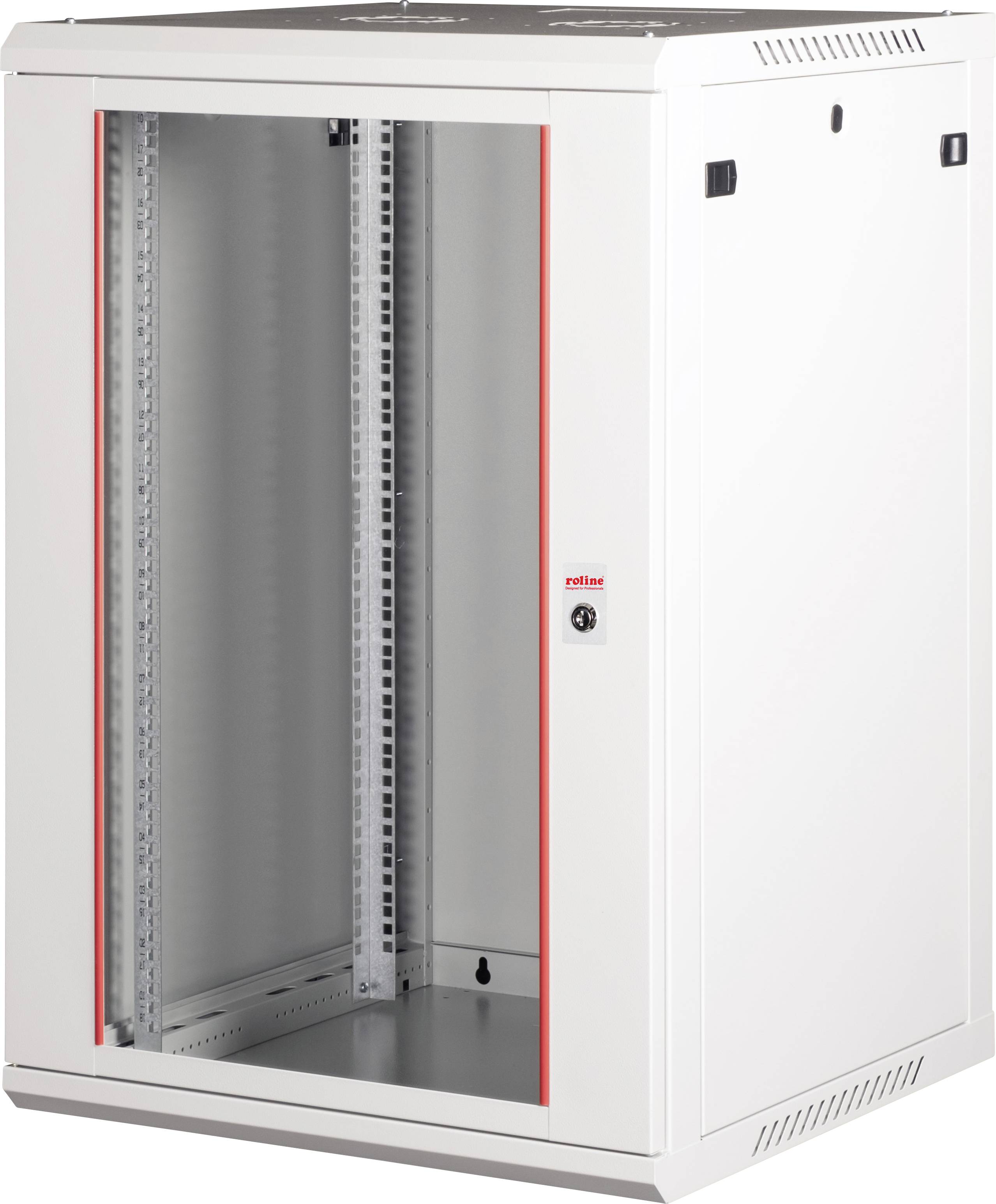

A white metal server rack with a glass front door, showing an empty interior suitable for network equipment installation.

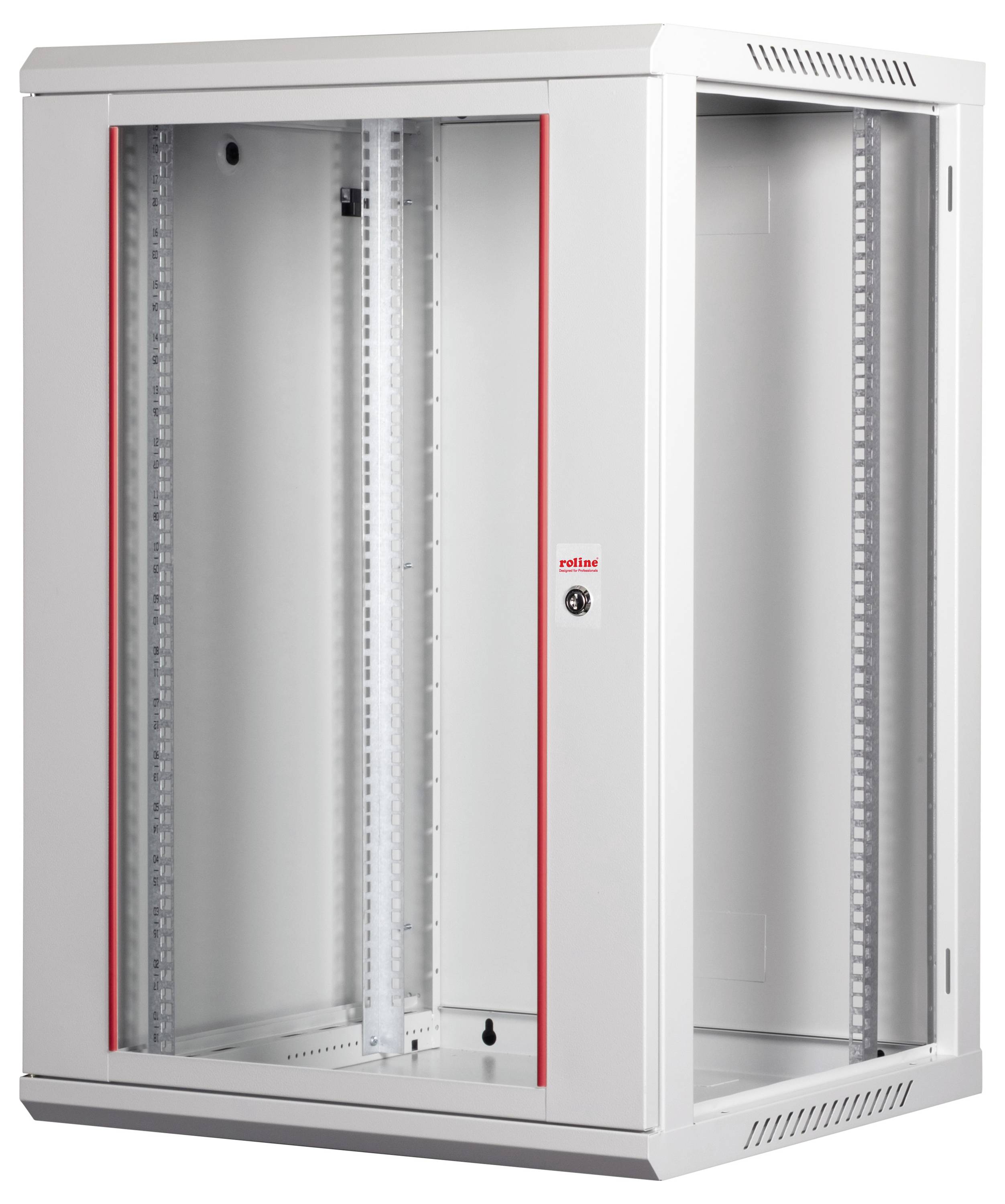

'A gray metal wall-mounted server rack with a glass door, visible red lines, vented sides, and an open front for hardware installation.'

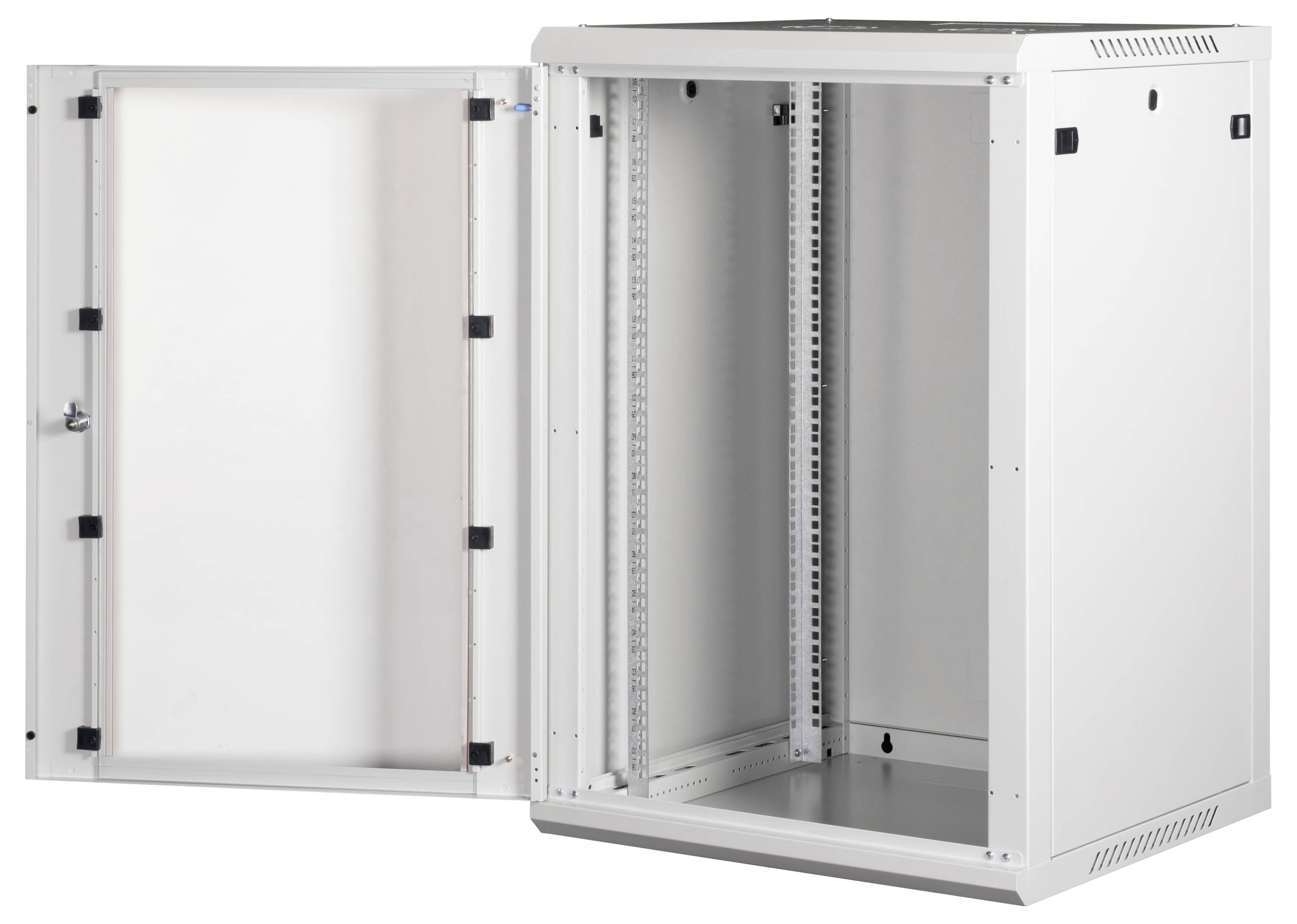

A white, open metal server rack with a side-hinged door, showing empty slots for mounting electronic equipment.

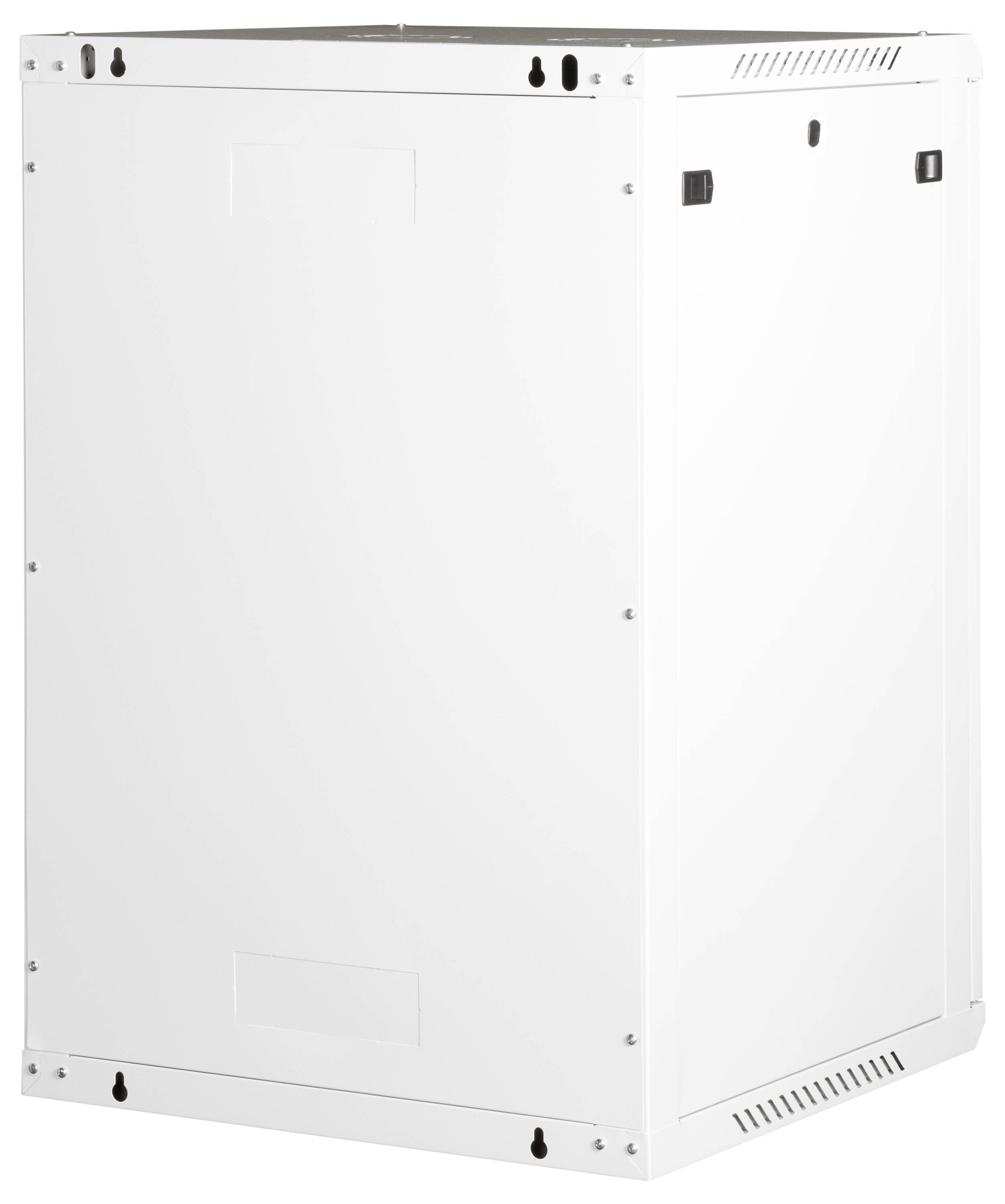

'A large, rectangular, white server cabinet with ventilation slots and mounting holes, designed for housing electronic equipment.'

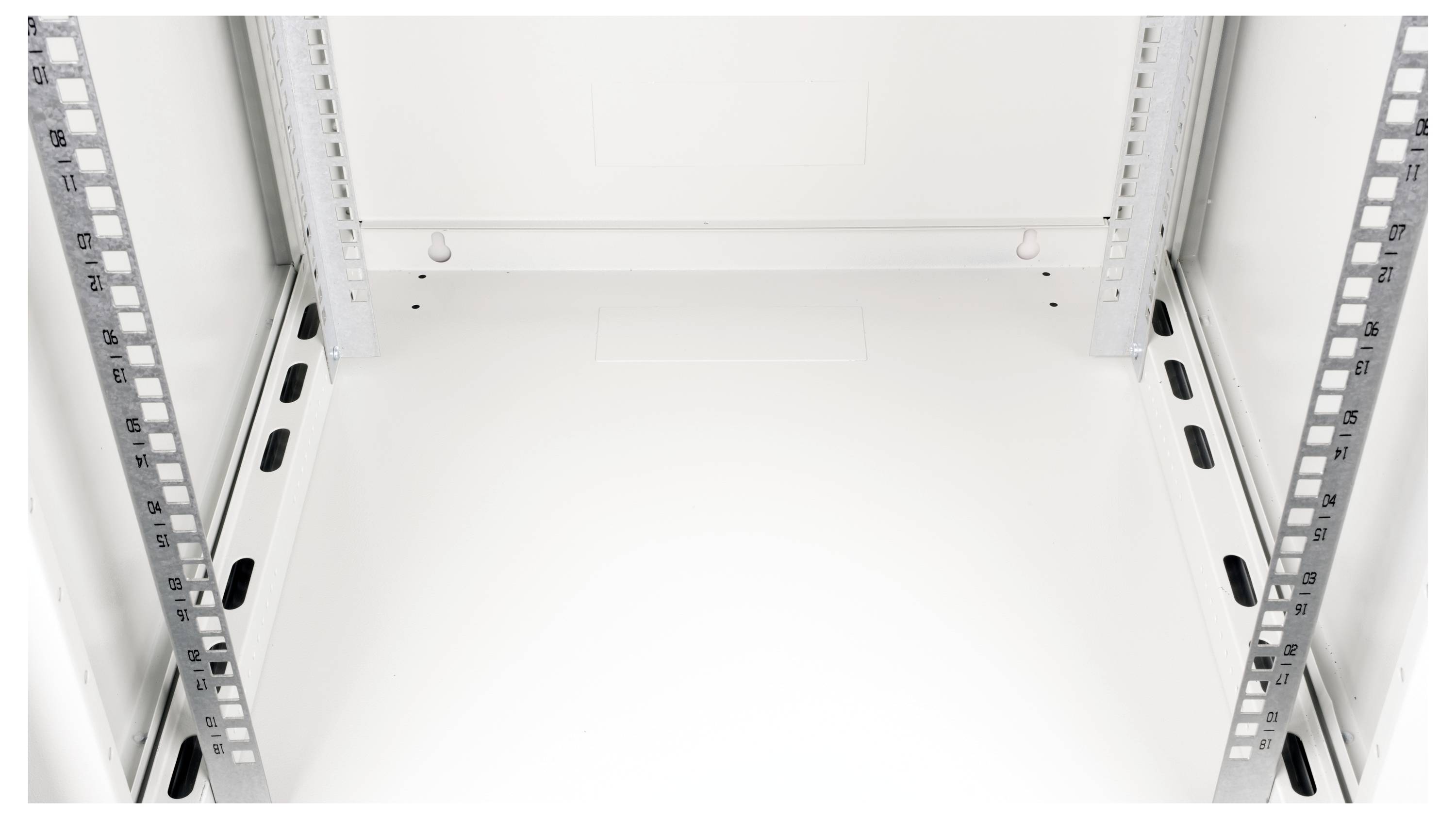

Empty white server rack enclosure with metal rails on each side, numerous slots for securing equipment. Ready for installation.

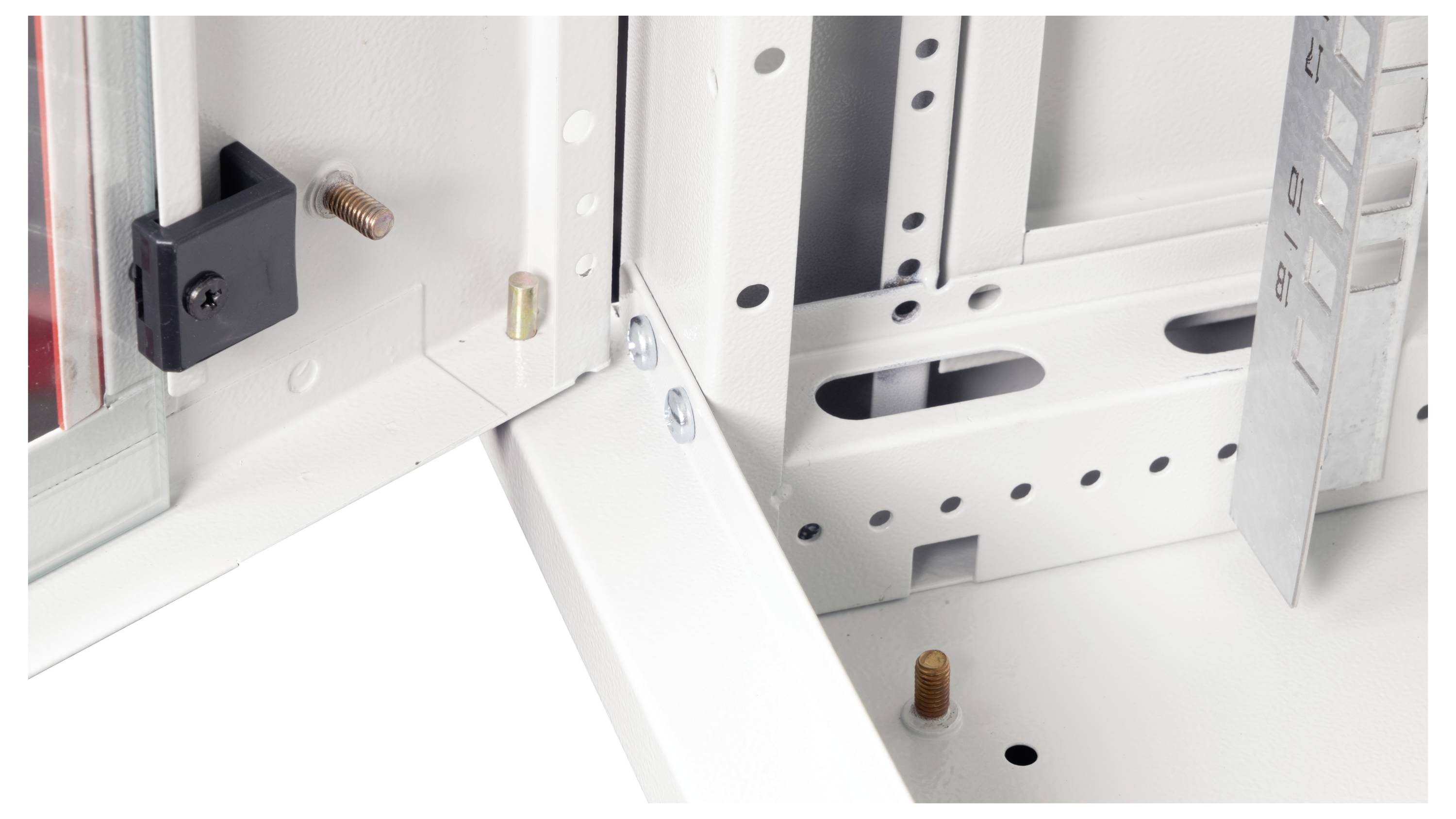

Close-up of a metal cabinet corner showing a hinge mechanism and a ruler indicating adjustable rack positions within the cabinet.

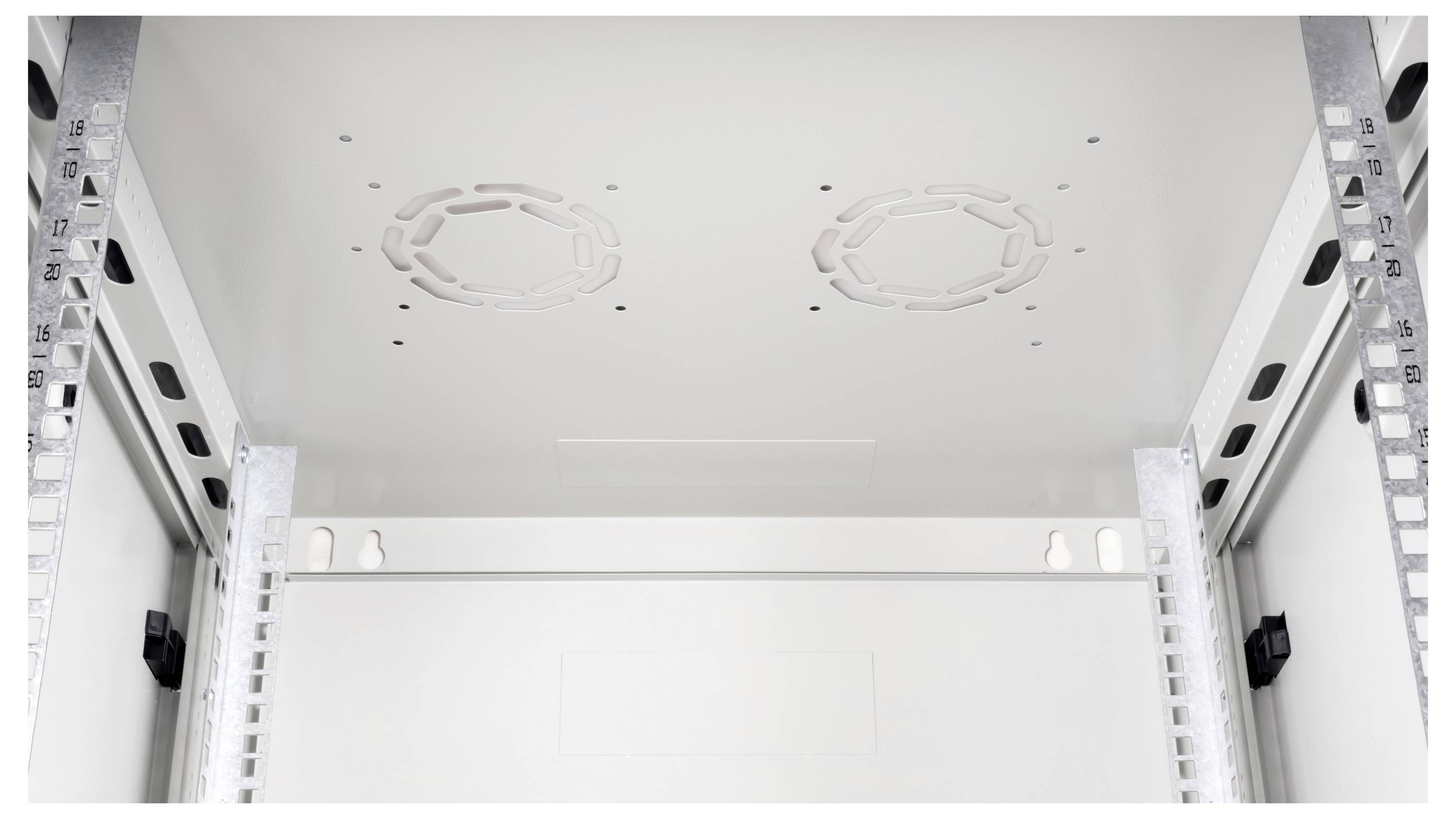

An empty gray metal server rack viewed from the front, showing mounting brackets and ventilation openings on the top panel.

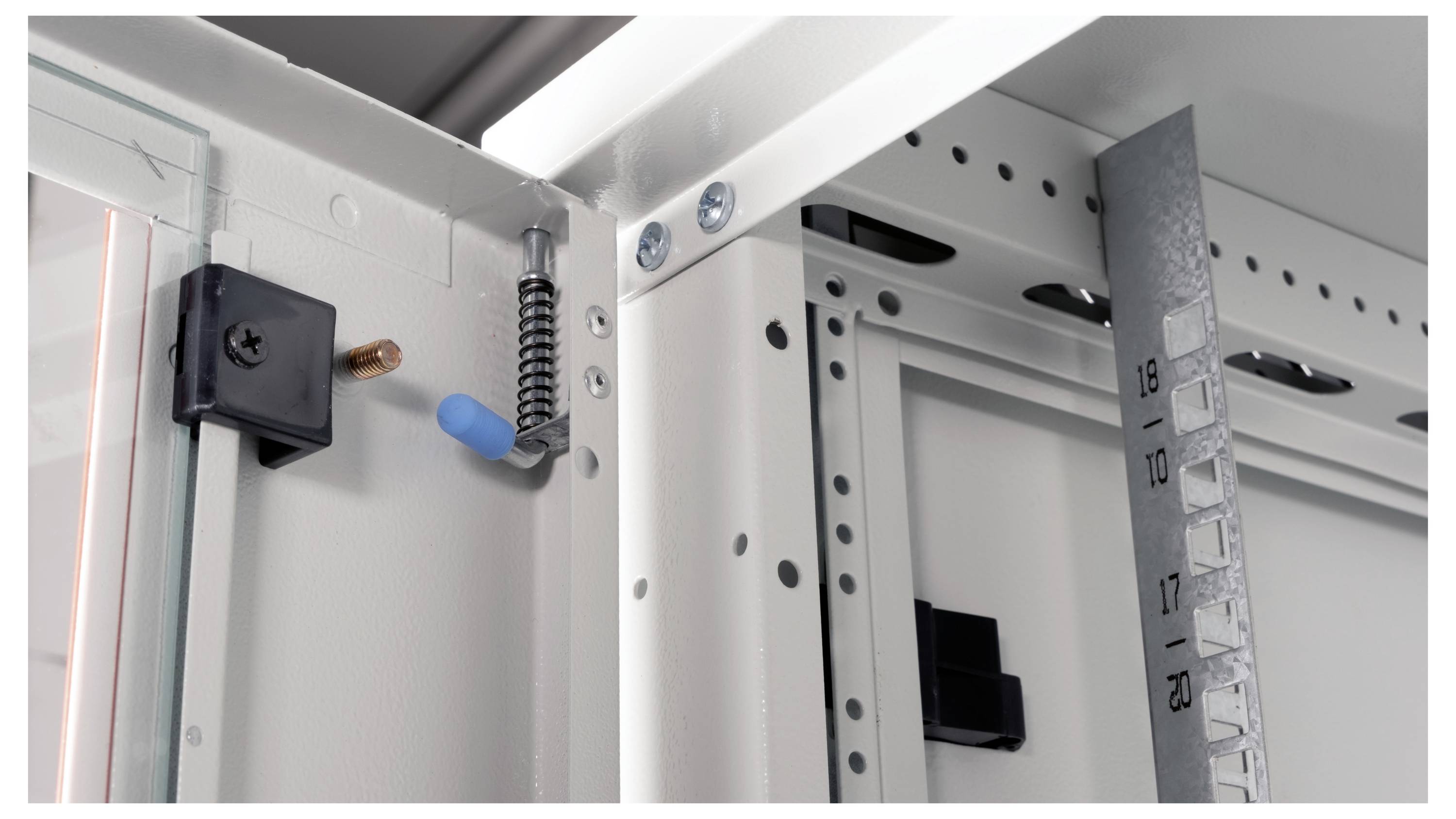

Close-up of an open electrical cabinet showing interior details like a hook for a tool, screws, and a measuring strip.

1/8

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ROLINE 19" wall housing basic plus 18HE

Capacity: 80 kg; front door made of hardened glass, lockable; side panels are provided with a quick-release lock and removable; roof with punched holes for fan modules; cable routing on roof and base possible; ventilation slots for passive ventilation; Including Mounting material;Protection class IP20;Delivery: Mounted

Technical specifications

Product type: 19" wall cabinet

Rack unit: 18 U

Width: 600 mm

Height: 912 mm

Depth: 600 mm

Dim: (W x H x D) 600 x 912 x 600 mm

Weight: 24700 g

Factory colour: Grey

Rack size: 483 mm (19")

Cable design: Round

Version: Cable

Cable use: C13/C14 appliances

Wireless charging: No

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3414678 Roline 19" wall cabinet (W x H x D) 600 x 912 x 600 mm 18 U Grey

Description

ROLINE 19 inch wall housing Basic Plus with 600 mm depth. The wall housing of the ROLINE Basic Plus series were specially designed for a flexible network wiring. This series represents an ideal balance between the ROLINE PRO and the ROLINE Basic series. The floor and roof are equipped with a punched cable inlet. In addition, the intake of a fan module is enabled by a punched area in the roof. Inside two pairs of galvanized profile rails with height units of 483 mm (19 ") are installed, which are also adjustable in depth. The robust steel construction of the cabinets consists of a thick steel sheet and is available in gray (RAL 7035) or black (RAL 9005) powder coated. The side panels are provided with a quick release fastener and removable, WAS improves the accessibility. Optionally a lock can also be built in the side walls. Wall mounting is done in two simple steps: First screw the rear panel onto the wall and then connect it to the housing. Optionally, leveling feet or rollers can be used to use the cabinets free-standing.
