Name: Roline 21.13.1152 Network switch 10 / 100 MBit/s
Brand: Roline
SKU: 2557820

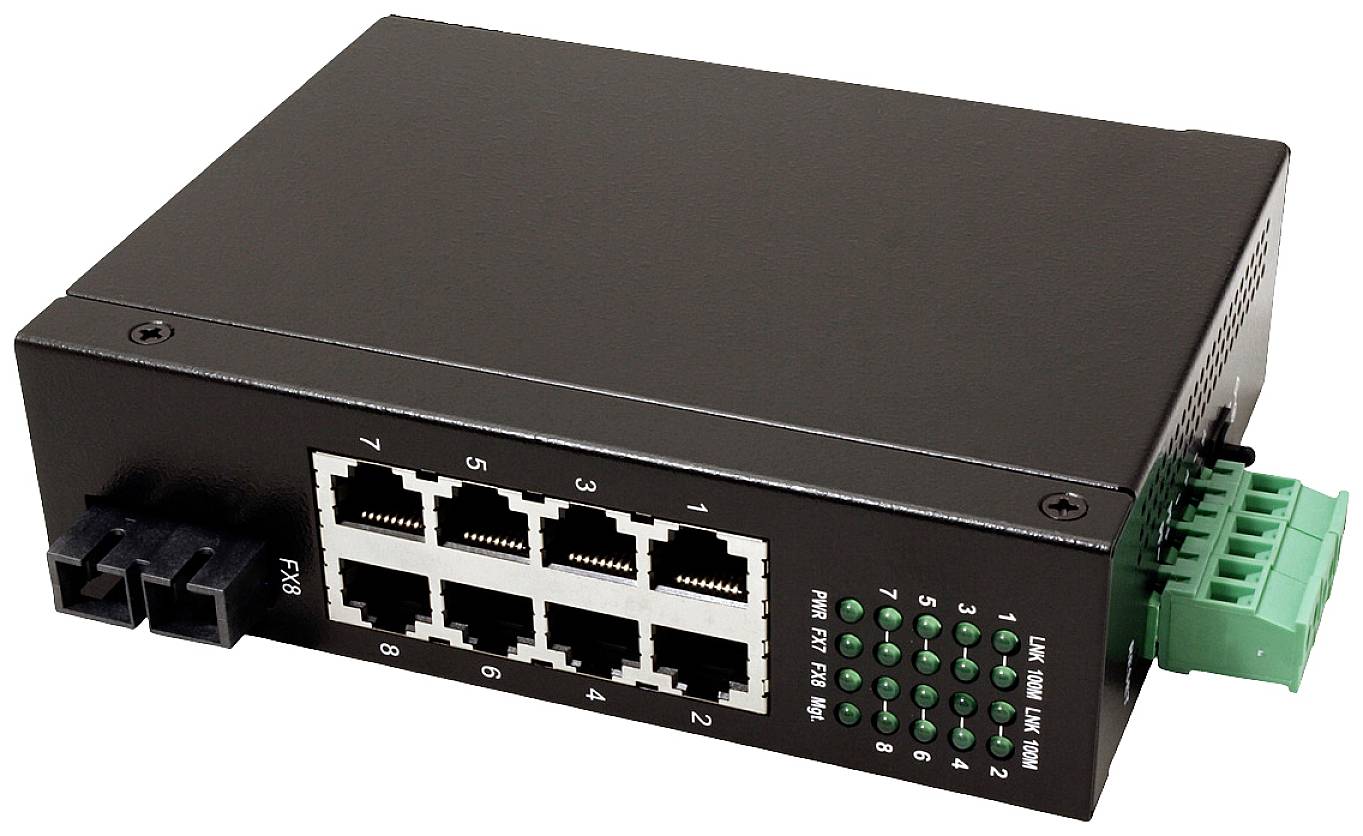

A black Ethernet switch with eight ports and a green LED indicator, displaying the network status.

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Technical specifications

Design: DIN rail

Product type: Network switch

LAN transfer rate: 10 MBit/s
100 MBit/s

Transfer rate: 10 / 100 MBit/s

Working principle: Unmanaged switch

Ethernet ports: 8

10/100 Mbps ports: 7 x

Fibre-optic ports: 1

Power supply (LOV): Power over Ethernet (PoE)

Weight: 547.17 g

Width: 40 mm

Height: 106 mm

Depth: 140 mm

Type: 21.13.1152

Interfaces: RJ45

Factory colour: Black

Max. ambient temperature: +70 °C

Min. ambient temperature: -2 °C

Cable design: Round

Version: Cable

Cable use: C13/C14 appliances

UKCA: yes

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2557820 Roline 21.13.1152 Network switch 10 / 100 MBit/s

Description

Network switch for use in industrial environments Fast Ethernet switch with 8 ports - 7x 10/100Base-T and 1x 100Base-FX multimode for use in industrial environments DIN rail mounting Operating voltage: +7 to +30VDC: 6.5W (max.) Operating temperature range: - 20 °C - +70 °C Input DC via terminal block or DC hollow plug (6.3 mm/2.0mm) as suitable power supply, we recommend the DIN rail power supply NDR-75-24 (21.13.1311)

This text is machine translated.
