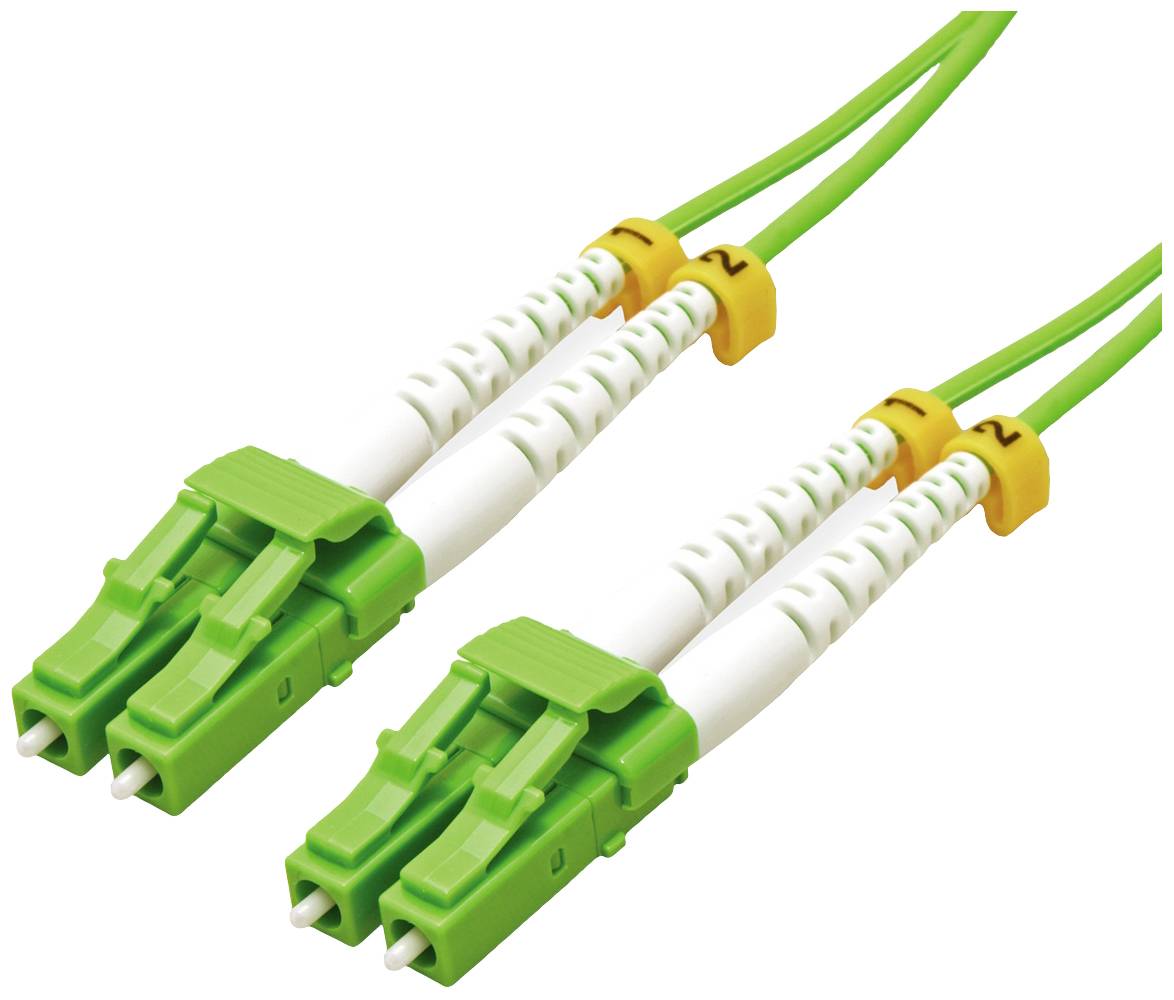

Roline 21.15.9276 Fibreglass FO Cable 7.00 m Green [2x LC plug - 2x LC plug] 50/125 µ Multimode OM5
EAN:
Part number:
Item no:
Highlights & Details
Roline 21159276 glass fiber cable 7 m 2x LC OM5 green
- Security for the future! The OM5 fiber optic cables with very low attenuation offer excellent quality at very high bandwidths of up to 100 Gbit/s.
- Ethernet, Fibre Channel, and OIF applications up to 150 meters - extends the system cost benefits for extremely long backbones and medium-length campus backbones
- Material and sheathing in ROLINE quality
- Duplex cable with fiber type multimode 50/125μm OM5
- The cables are fitted with high-quality plugs and achieve the best values with insertion loss and Reflexion
- Attenuation 850nm ≤ 2.3 dB / km, 953nm ≤ 1.7 dB / km, 1300nm ≤ 0.6 dB / km
- Outer diameter: 2.0 mm
- UPC polished
- Bandwidth: 4700 MHz-km (this bandwidth is based on application-specific implementation of EMBC requirements)
- Sheath color: Green
Technical specifications
- Product type
FO Cable
- Connection type
Fibreglass
- No. of A connectors
2 x
- Type A
LC plug
- No. of B connections
2 x
- Type B
LC plug
- Fibre type
50/125 µ
Multimode OM5
Duplex
- Halogen-free
Yes
- Cable length
7.00 m
- Factory colour
Green
- Content
1 pc(s)
- Connector version
straight
- Cable design
Round
- Cable features
low flue gas emission
Halogen-free
Duplex
Flame-retardant
FO
- Cable use
FO
- Version
Cable
- LAN transfer rate
100000 MBit/s
LC
- Weight
53.4 g
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2887659 Roline 21.15.9276 Fibreglass FO Cable 7.00 m Green [2x LC plug - 2x LC plug] 50/125 µ Multimode OM5
Description
Unlike copper cables, FO cables are much less suceptible to adverse conditions. FO doesn't interfere with electronic devices. The low attenuation of FO cables allows for long-distance transmissions.
Features
- Cable length 7 m
- Fibre optic type OM5
- Connection 1: 2x LC
- Connection 2: 2x LC
- Hole diameter 50 µm
- Full duplex
