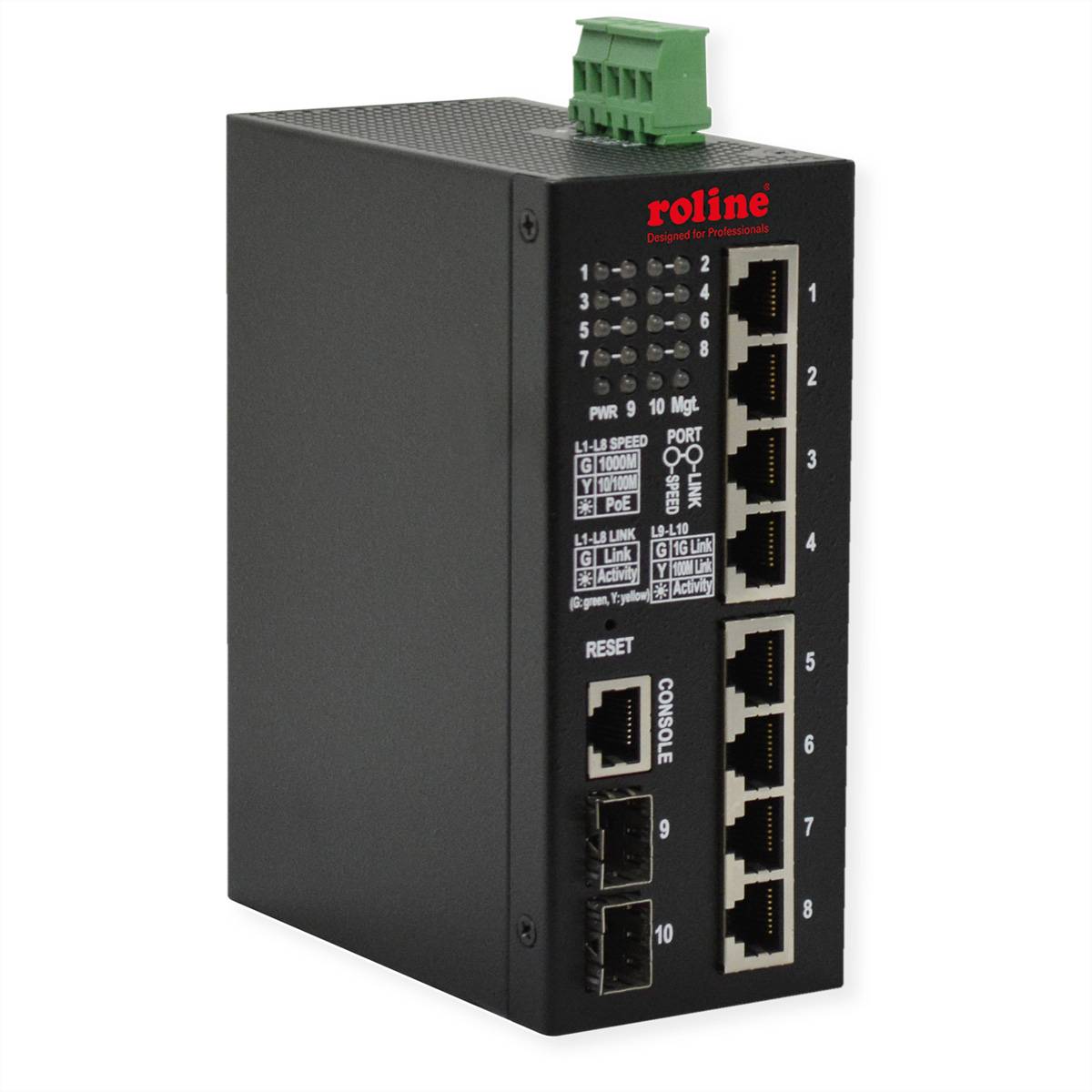

Name: Roline industrial gigabit switch, 10 ports, PoE+, Smart managed, 240W
Brand: Roline
SKU: 3798268

Roline industrial gigabit switch, 10 ports, PoE+, Smart managed, 240W-0

Roline industrial gigabit switch, 10 ports, PoE+, Smart managed, 240W-1

1/2

Datasheet (PDF)

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

ROLINE 21.13.1131 Network switch Managed L2 Gigabit Ethernet (10/100/1000) Power over Ethernet (PoE), black

Managed L2
Quality of Service (QoS) support
Number of basic switching RJ-45 Ethernet ports: 8 console port: RJ-45
DC/PoE power supply included Power over Ethernet (PoE)

Technical specifications

Power source DC / PoE

Product type: Network switch

Weight: 768.1 g

Width: 106 mm

Height: 60 mm

Depth: 140 mm

Type: 21.13.1131

Factory colour: Black

Cable design: Round

Version: Cable

Cable use: C13/C14 appliances

UKCA: yes

Power over Ethernet (PoE) ports quantity: 8

Operating temperature (T-T): -30 - 70 °C

Basic switching RJ-45 Ethernet ports quantity: 8

Total Power over Ethernet (PoE) budget: 240 W

Auto-negotiation: yes

Power over Ethernet (PoE) power per port: 30 W

SFP module slots quantity: 2

Flow control support: yes

Power over Ethernet (PoE): yes

Quality of Service (QoS) support: yes

Half duplex: yes

Full duplex: yes

Auto MDI/MDI-X: yes

Operating relative humidity (H-H): 5 - 95 %

VLAN support: yes

10G support: no

Storage temperature (T-T): -40 - 85 °C

Power supply included: yes

Documents & Downloads

Datasheet

Datasheet 3798268 Roline industrial gigabit switch, 10 ports, PoE+, Smart managed, 240W

User & Safety Instructions

User & Safety Instructions 3798268 Roline industrial gigabit switch, 10 ports, PoE+, Smart managed, 240W

Description

The Gigabit Ethernet Switch with 10 ports (8x RJ45 + 2x SFP) is designed for industrial use. Thanks to Gigabit bandwidth, under/over voltage protection, extended Layer 2 functions, large operating temperature range and a range of safety and management tools, the switch is perfect for industrial use. Eight ports with 10/100/1000Mbit/s copper and 2 ports 100/1000 Mbit/s SFP (Dual speed) ports plus 1x RJ45 console port. Supports all RJ45 ports PoE+ according to IEEE 802.3bt standard, PoE budget 240W. Provides PoE PSE redundancy function. Auto negotiation/Auto MDI/MDI-X detection on all RJ45 ports. Supports IGMP & MLD snooping, QoS, VLANs. Web / SNMP / Telnet management . Supports 802.3x current control (full duplex) and back pressure (half duplex). LED display unit: Power, management status; per port: Speed, link/activity/PoE status; per SFP: Speed/link/activity status. Under and overvoltage protection. Top Hat rail mounting Conforms to the standards IEEE 802.3, 802.3ab, 802.3z, 802.3x, 802.3at, 802.1x, 802.1w, 802.1D, 802.1Q Power supply (via terminal Block): +12 to +60 V DC. Power 10W (full load without PoE output) / 250W (with full PoE output). Metal housing (fan-less). Operating temperature range: -30°C to +70°C

This text is machine translated.
