Name: RST 11080436 Cable gland PG36 Polyamide 6 10 pc(s)
Brand: RST
SKU: 2256547

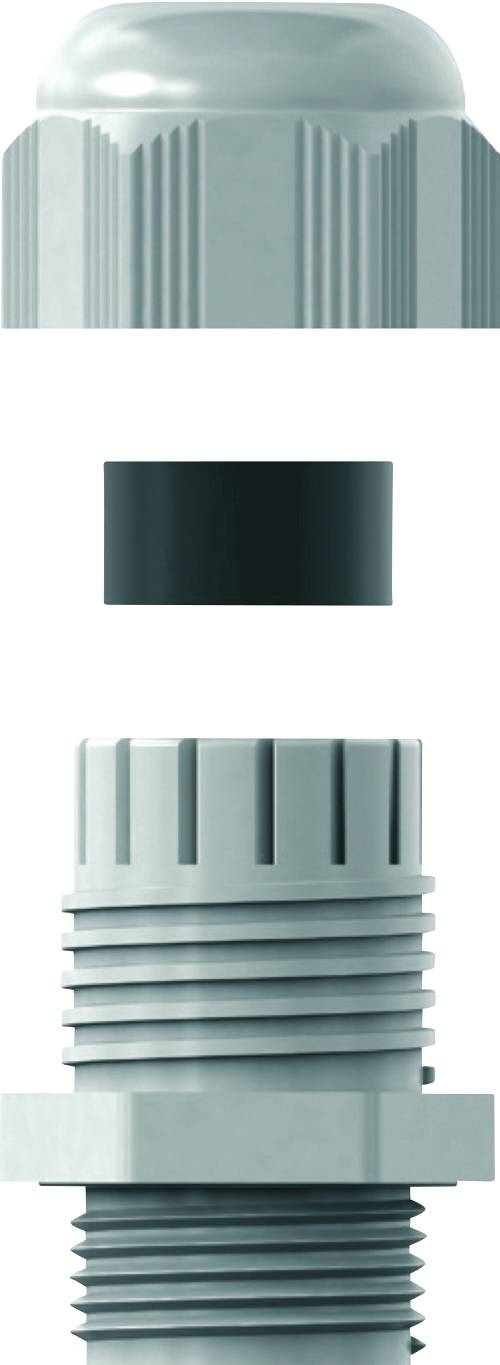

Assembly Instructions for a Cable Gland Kit: shows three parts from top to bottom, including Cap, Seal, Main Body.

Image similar

Product type

Cable gland

External thread

PG36

Material

Polyamide 6

Clamp Ø

22 mm

Terminal Ø (max.)

32 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 11080436 - Euro Top PA / PG RAL 7035 - Cable gland - 10 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: PG36

Material: Polyamide 6

Clamp Ø: 22 mm

Terminal Ø (max.): 32 mm

Thread length: 13 mm

Length: 51.5 mm

: IP66
IP68

Spanner size: 53 mm
53 mm

Content: 10 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 11080436

Type: Euro Top PA / PG RAL 7035

RAL no.: 7035
