Name: RST 11084516 Cable gland M16 x 1.5 Polyamide 6 50 pc(s)
Brand: RST
SKU: 2256707

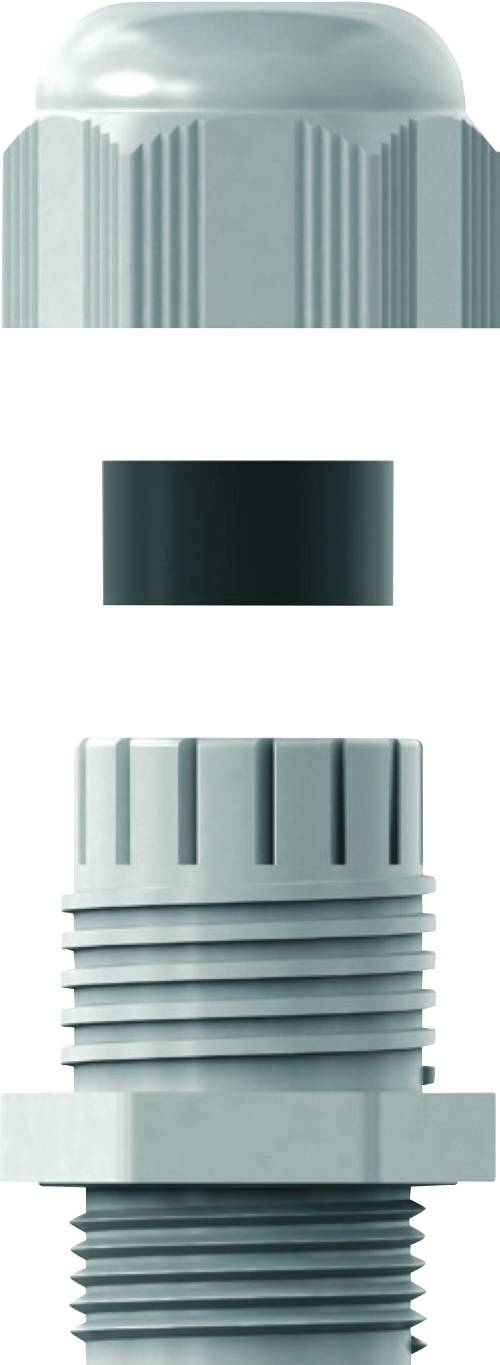

Exploded view diagram of a cable gland with three parts: cap, seal, and threaded housing, positioned on top of each other.

Image similar

Product type

Cable gland

External thread

M16 x 1.5

Material

Polyamide 6

Clamp Ø

4 mm

Terminal Ø (max.)

8 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 11084516 - Euro Top PA / M RAL 7035 - Cable gland - 50 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: M16 x 1.5

Material: Polyamide 6

Clamp Ø: 4 mm

Terminal Ø (max.): 8 mm

Thread length: 8 mm

Length: 25 mm

: IP66
IP68

Spanner size: 19 mm
19 mm

Content: 50 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 11084516

Type: Euro Top PA / M RAL 7035

RAL no.: 7035
