Name: RST 11180012 Cable gland 1/2" NPT Polyamide 6 50 pc(s)
Brand: RST
SKU: 2256595

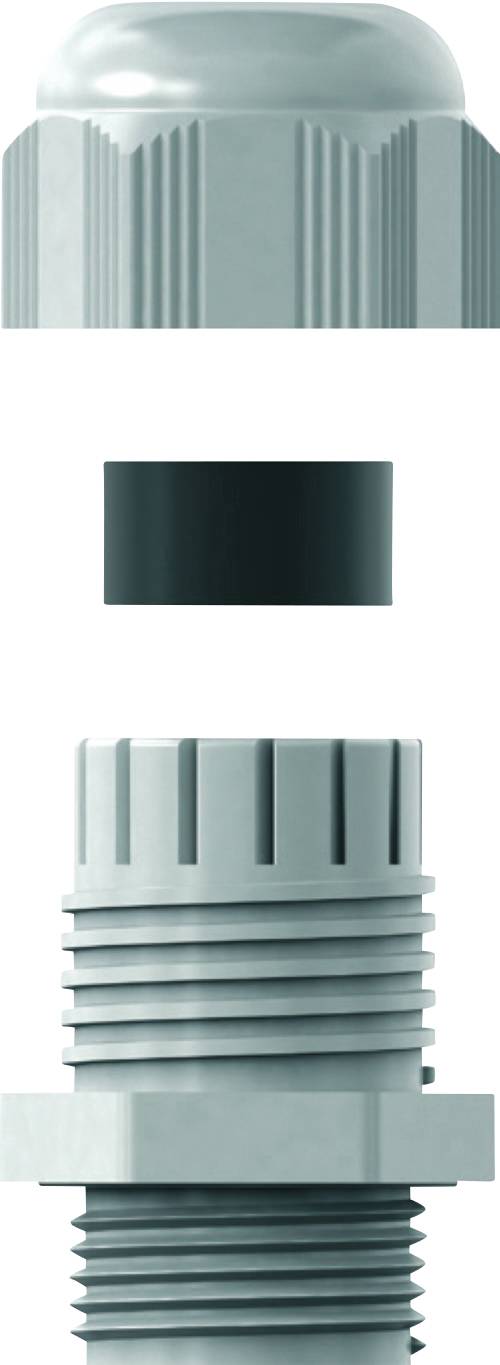

Exploded view of a cylindrical mechanical component, consisting of three individual parts: upper cap, middle ring, and lower thread.

Image similar

Product type

Cable gland

External thread

1/2" NPT

Material

Polyamide 6

Clamp Ø

5 mm

Terminal Ø (max.)

9 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 11180012 - Euro Top PA / NPT RAL 7035 - Cable gland - 50 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: 1/2" NPT

Material: Polyamide 6

Clamp Ø: 5 mm

Terminal Ø (max.): 9 mm

Thread length: 15 mm

Length: 29 mm

: IP66
IP68

Spanner size: 24 mm
24 mm

Content: 50 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 11180012

Type: Euro Top PA / NPT RAL 7035

RAL no.: 7035

Documents & Downloads

Datasheet

Datasheet 2256595 RST 11180012 Cable gland 1/2" NPT Polyamide 6 50 pc(s)

User & Safety Instructions

User & Safety Instructions 2256595 RST 11180012 Cable gland 1/2" NPT Polyamide 6 50 pc(s)

RST 11180012 Cable gland 1/2" NPT Polyamide 6 50 pc(s)
