Name: RST 11180413 Cable gland PG13.5 Polyamide 6 50 pc(s)
Brand: RST
SKU: 2256579

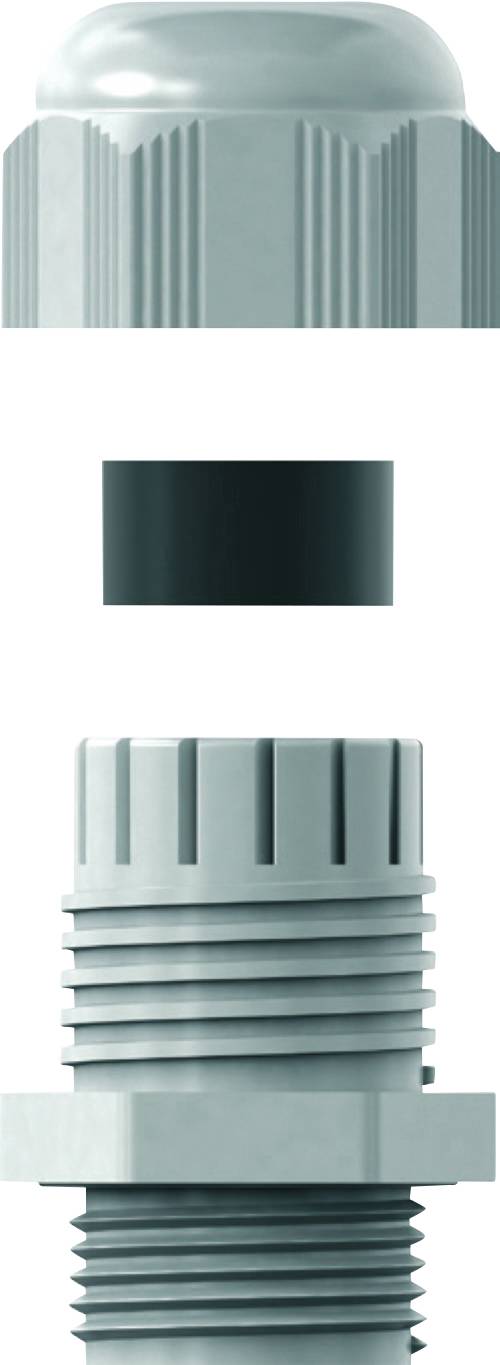

Dismantled construction of a threaded pipe adapter with seal. The top section, seal, and bottom section with thread are visible.

Image similar

Product type

Cable gland

External thread

PG13.5

Material

Polyamide 6

Clamp Ø

5 mm

Terminal Ø (max.)

9 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 11180413 - Euro Top PA / PG RAL 7035 - Cable gland - 50 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: PG13.5

Material: Polyamide 6

Clamp Ø: 5 mm

Terminal Ø (max.): 9 mm

Thread length: 10 mm

Length: 29 mm

: IP66
IP68

Spanner size: 24 mm
24 mm

Content: 50 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 11180413

Type: Euro Top PA / PG RAL 7035

RAL no.: 7035
