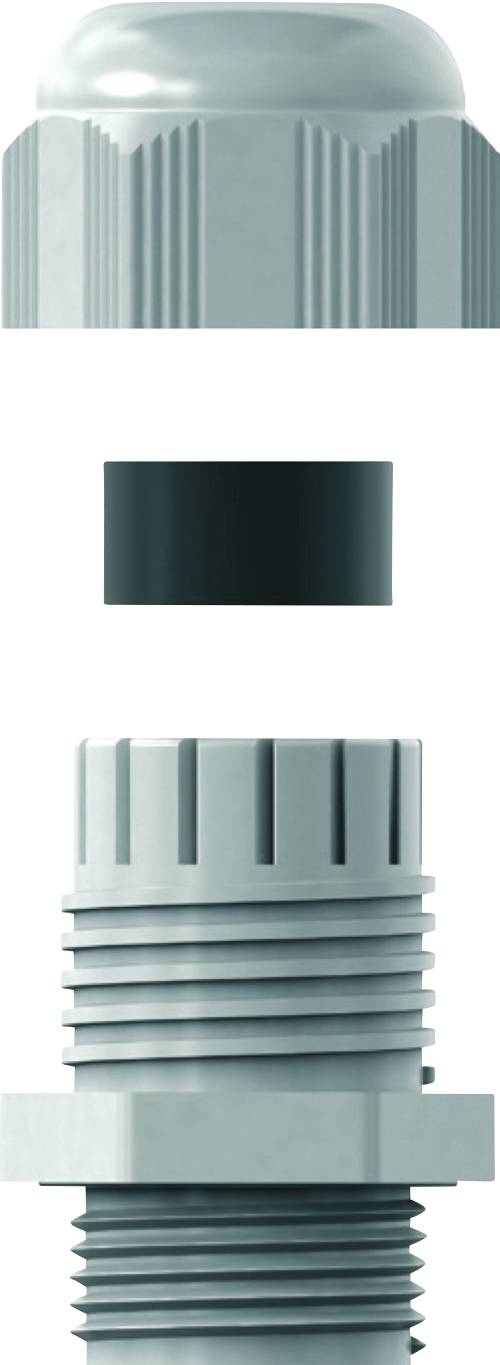

RST 11180540 Cable gland M40 x 1.5 Polyamide 6 10 pc(s)
Product type
Cable gland
External thread
M40 x 1.5
Material
Polyamide 6
Clamp Ø
20 mm
Terminal Ø (max.)
26 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 11180540 - Euro Top PA / M RAL 7035 - Cable screwing - 10 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B
- Product type
Cable gland
- External thread
M40 x 1.5
- Material
Polyamide 6
- Clamp Ø
20 mm
- Terminal Ø (max.)
26 mm
- Thread length
18 mm
- Length
51.5 mm
IP66
IP68
- Spanner size
53 mm
53 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
11180540
- Type
Euro Top PA / M RAL 7035
- RAL no.
7035
