Name: RST 11180563 Cable gland M63 x 1.5 Polyamide 6 10 pc(s)
Brand: RST
SKU: 2256516

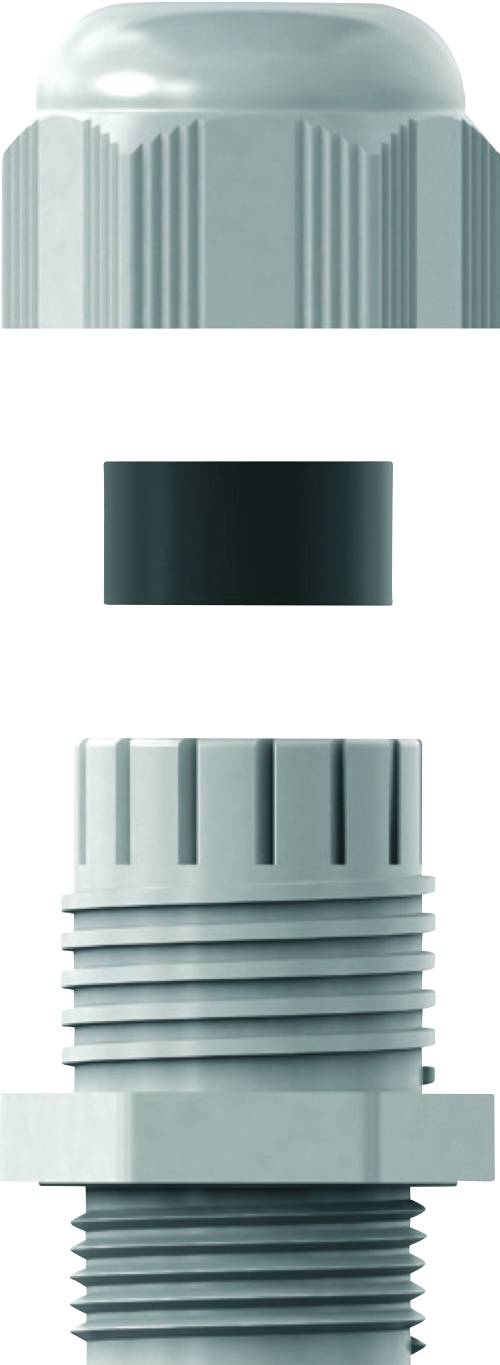

'Exploded diagram of a threaded connection with a cap, ring, and threaded component, showing different screw segments.'

Image similar

Product type

Cable gland

External thread

M63 x 1.5

Material

Polyamide 6

Clamp Ø

29 mm

Terminal Ø (max.)

35 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 11180563 - Euro Top PA / M RAL 7035 - Cable gland - 10 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: M63 x 1.5

Material: Polyamide 6

Clamp Ø: 29 mm

Terminal Ø (max.): 35 mm

Thread length: 18 mm

Length: 53 mm

: IP66
IP68

Spanner size: 65 mm
65 mm

Content: 10 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 11180563

Type: Euro Top PA / M RAL 7035

RAL no.: 7035
