Image similar

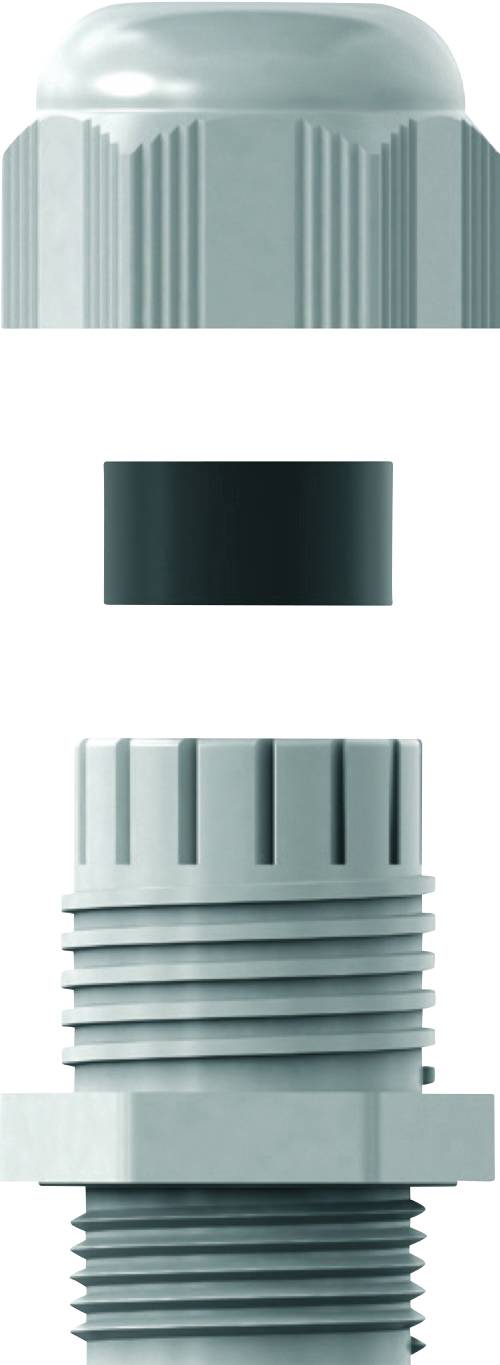

RST 12180532 Cable gland M32 x 1.5 Polyamide 6 20 pc(s)
Product type
Cable gland
External thread
M32 x 1.5
Material
Polyamide 6
Clamp Ø
12 mm
Terminal Ø (max.)
20 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 12180532 - Euro Top PA / M RAL 7001 - Cable gland - 20 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B
- Product type
Cable gland
- External thread
M32 x 1.5
- Material
Polyamide 6
- Clamp Ø
12 mm
- Terminal Ø (max.)
20 mm
- Thread length
15 mm
- Length
41 mm
IP66
IP68
- Spanner size
42 mm
42 mm
- Content
20 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
12180532
- Type
Euro Top PA / M RAL 7001
- RAL no.
7001
Documents & Downloads
Datasheet
Datasheet 2256745 RST 12180532 Cable gland M32 x 1.5 Polyamide 6 20 pc(s)
User & Safety Instructions
User & Safety Instructions 2256745 RST 12180532 Cable gland M32 x 1.5 Polyamide 6 20 pc(s)
