Name: RST 13180407 Cable gland PG7 Polyamide 6 100 pc(s)
Brand: RST
SKU: 2256655

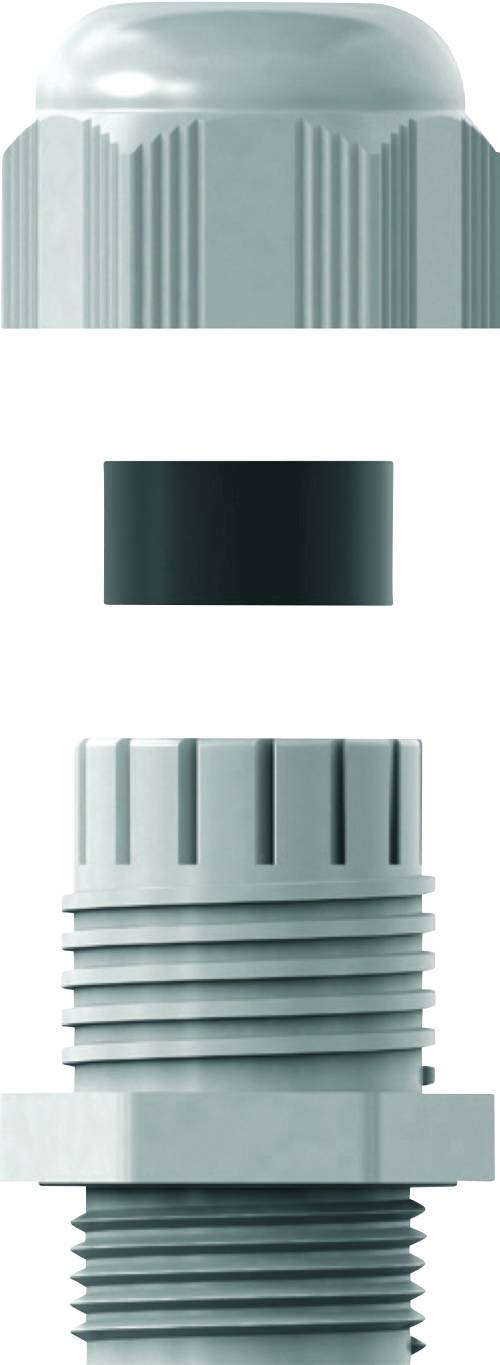

A technical representation of a three-part pipe connector. A cap at the top, a sealing ring in the middle, and a threaded connection at the bottom.

Image similar

Product type

Cable gland

External thread

PG7

Material

Polyamide 6

Clamp Ø

2 mm

Terminal Ø (max.)

5 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 13180407 - Euro Top PA / PG RAL 9005 - Cable gland - 100 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: PG7

Material: Polyamide 6

Clamp Ø: 2 mm

Terminal Ø (max.): 5 mm

Thread length: 8 mm

Length: 22 mm

: IP66
IP68

Spanner size: 15 mm
15 mm

Content: 100 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 13180407

Type: Euro Top PA / PG RAL 9005

RAL no.: 9005
