Name: RST 13180550 Cable gland M50 x 1.5 Polyamide 6 10 pc(s)
Brand: RST
SKU: 2256660

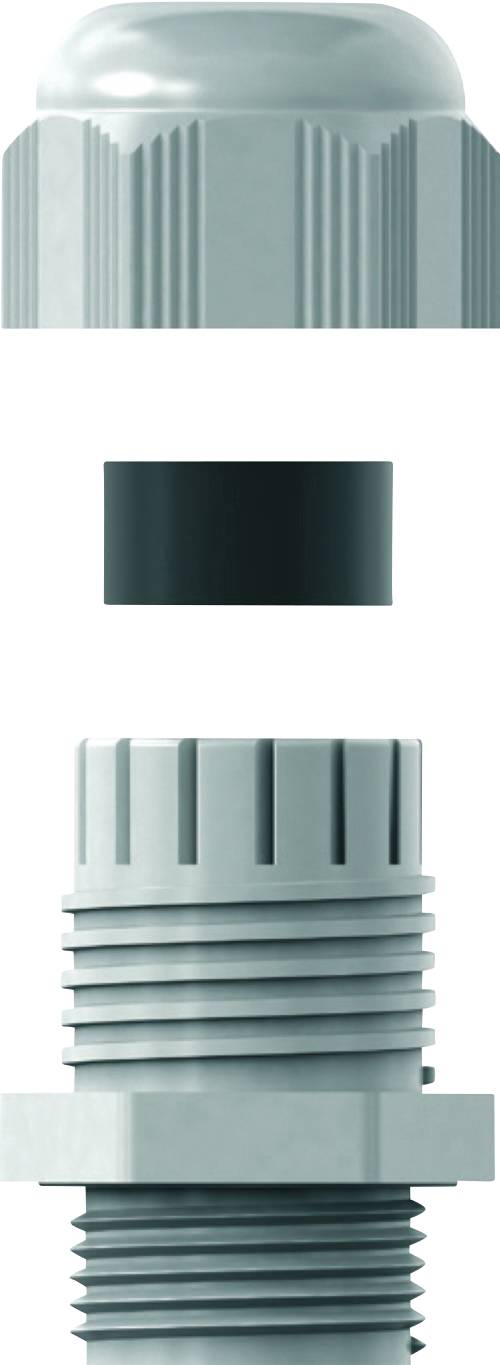

Exploded diagram of a cable gland consisting of cap, seal, and threaded body. Suitable for secure cable connections.

Image similar

Product type

Cable gland

External thread

M50 x 1.5

Material

Polyamide 6

Clamp Ø

25 mm

Terminal Ø (max.)

31 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 13180550 - Euro Top PA / M RAL 9005 - Cable screwing - 10 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: M50 x 1.5

Material: Polyamide 6

Clamp Ø: 25 mm

Terminal Ø (max.): 31 mm

Thread length: 18 mm

Length: 53 mm

: IP66
IP68

Spanner size: 60 mm
60 mm

Content: 10 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 13180550

Type: Euro Top PA / M RAL 9005

RAL no.: 9005
