Name: RST 13480516 Cable gland M16 x 1.5 Polyamide 6 50 pc(s)
Brand: RST
SKU: 2256504

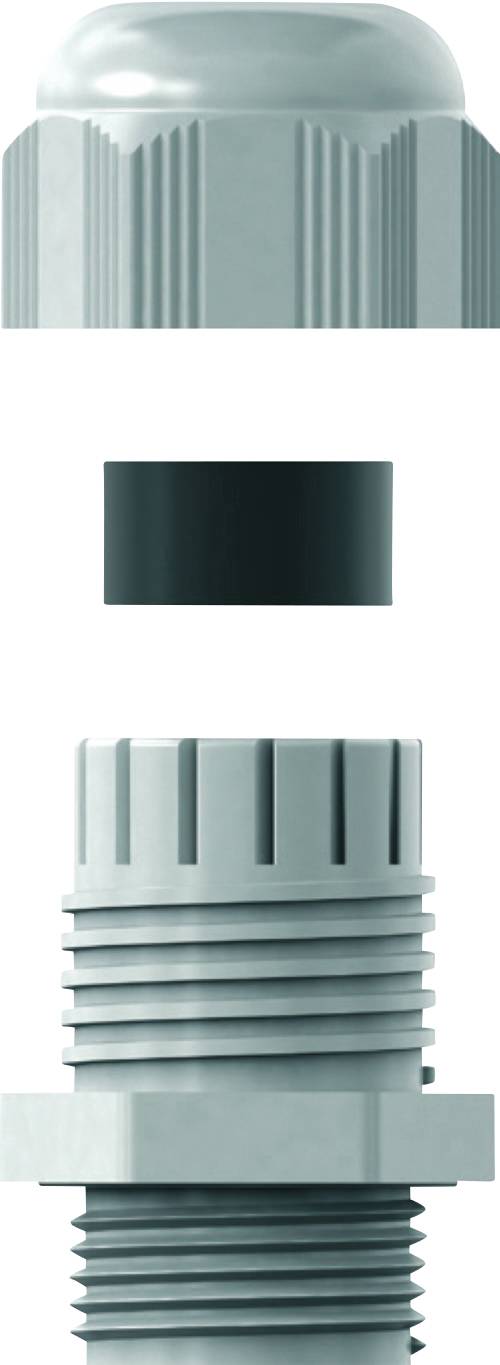

Exploded diagram of a cable gland system. At the top, a knurled nut, in the middle a sealing ring, at the bottom the housing with thread.

Image similar

Product type

Cable gland

External thread

M16 x 1.5

Material

Polyamide 6

Clamp Ø

5 mm

Terminal Ø (max.)

10 mm

Datasheet (PDF)

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Report legal concerns

Highlights & Details

RST 13480516 - Euro Top PA / M Long thread RAL 9005 - Cable screwing - 50 pcs

Our service for you

Technical specifications

Material Seal insert: Chloroprene
operating temperature min: -40 °C
operating temperature max: +100 °C
Note: Cable gland, tested and approved among others according to EN 62444 and UL514B

Product type: Cable gland

External thread: M16 x 1.5

Material: Polyamide 6

Clamp Ø: 5 mm

Terminal Ø (max.): 10 mm

Thread length: 15 mm

Length: 30 mm

: IP66
IP68

Spanner size: 22 mm
22 mm

Content: 50 pc(s)

RoHS-compliant: Yes

Manufacturer part #: 13480516

Type: Euro Top PA / M Langgewinde RAL 9005

RAL no.: 9005
