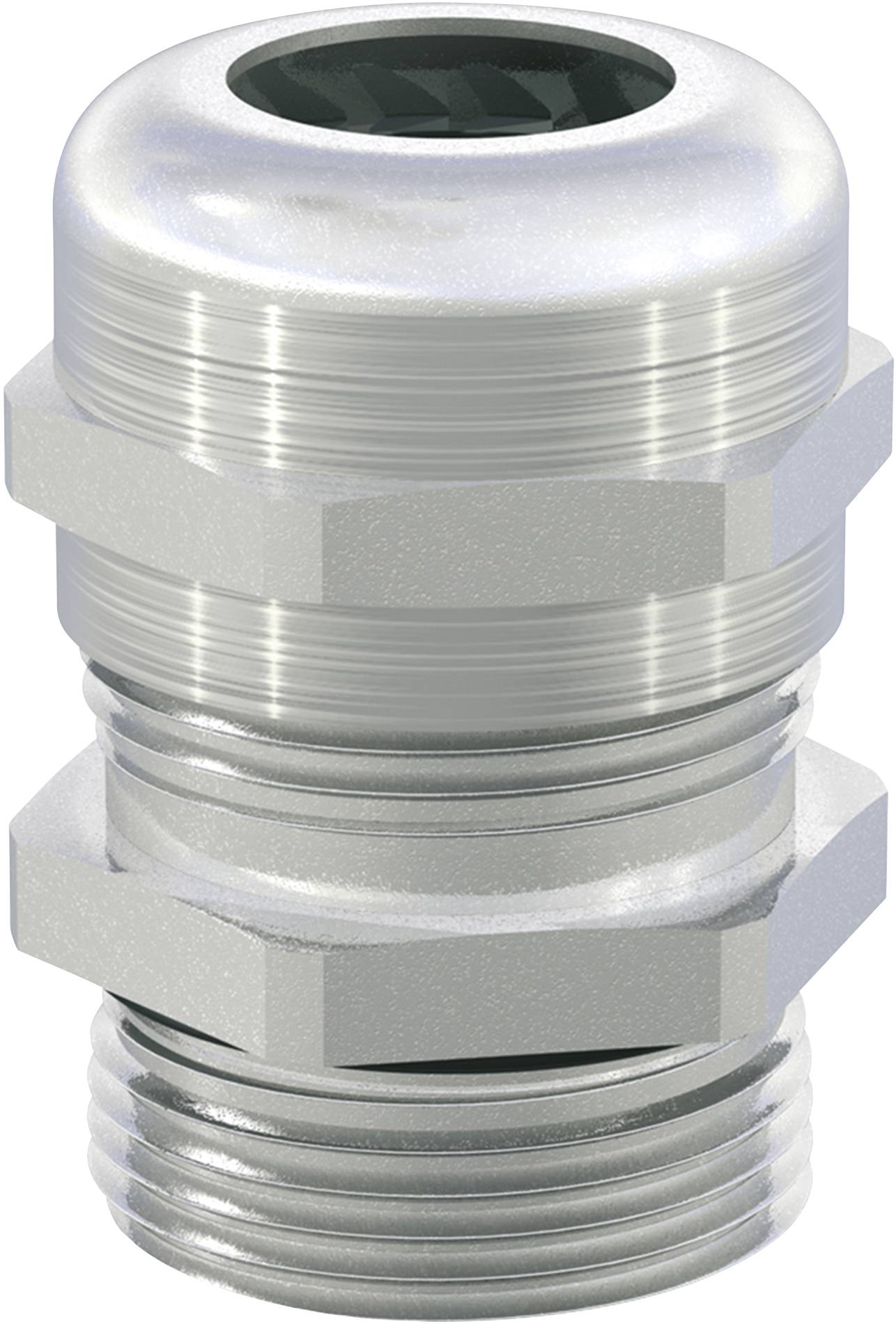

RST 60080421 Cable gland PG21 Brass (Ni-plated) 25 pc(s)
Product type
Cable gland
External thread
PG21
Material
Brass (Ni-plated)
Clamp Ø
13 mm
Terminal Ø (max.)
18 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 60080421 - Euro Top MS / PG - Cable gland - 25 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- Material O-ring: Perbunan
- Material Clamp insert: Polyamide 6
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B.
- Product type
Cable gland
- External thread
PG21
- Material
Brass (Ni-plated)
- Clamp Ø
13 mm
- Terminal Ø (max.)
18 mm
- Thread length
7.2 mm
- Length
32.5 mm
IP66
IP68
- Spanner size
30 mm
30 mm
- Content
25 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60080421
- Type
Euro Top MS / PG
Documents & Downloads
Datasheet
Datasheet 2256633 RST 60080421 Cable gland PG21 Brass (Ni-plated) 25 pc(s)
User & Safety Instructions
User & Safety Instructions 2256633 RST 60080421 Cable gland PG21 Brass (Ni-plated) 25 pc(s)
