Image similar

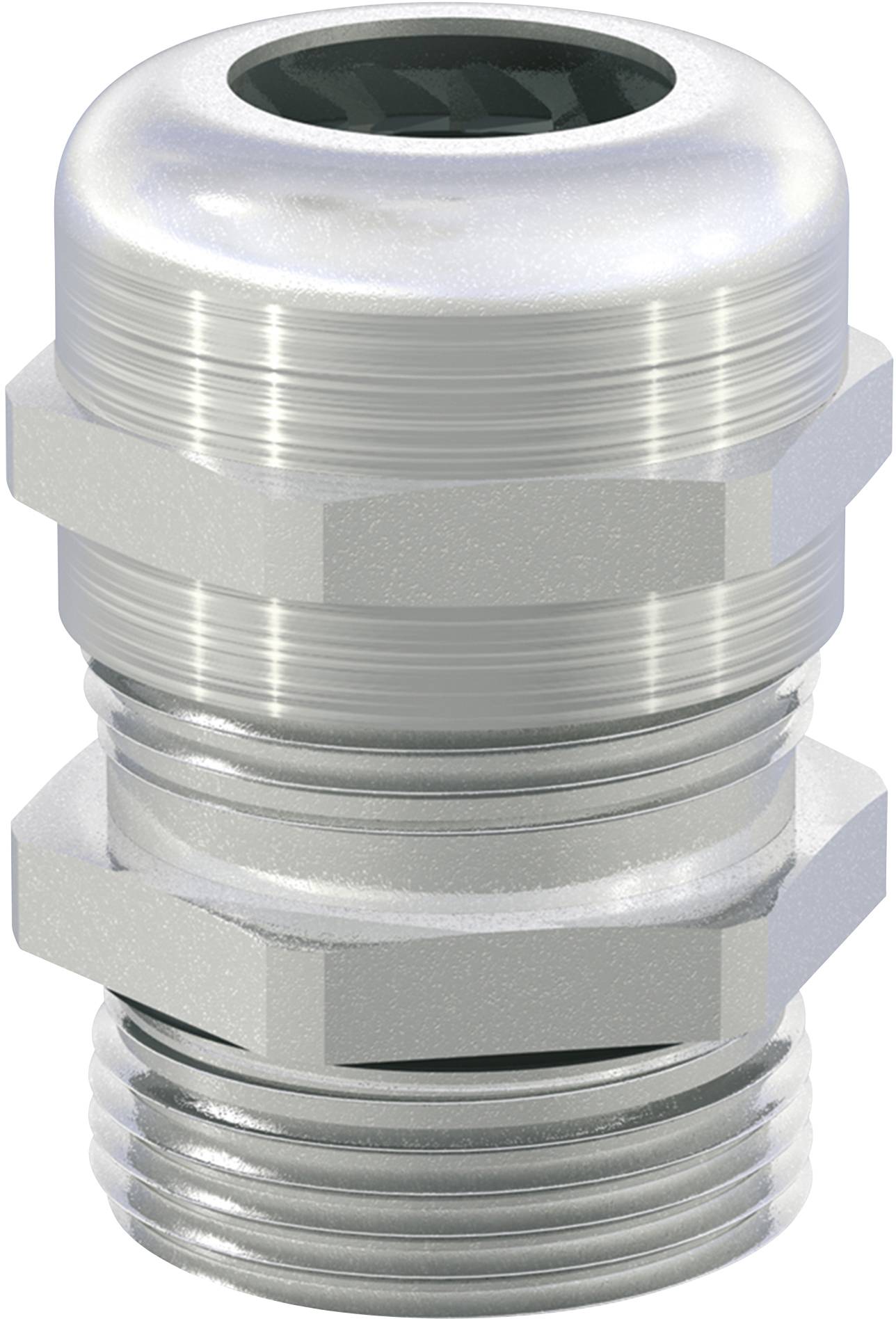

RST 60080429 Cable gland PG29 Brass (Ni-plated) 10 pc(s)
Product type
Cable gland
External thread
PG29
Material
Brass (Ni-plated)
Clamp Ø
18 mm
Terminal Ø (max.)
25 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 60080429 - Euro Top MS / PG - Cable screwing - 10 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- Material O-ring: Perbunan
- Material Clamp insert: Polyamide 6
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B.
- Product type
Cable gland
- External thread
PG29
- Material
Brass (Ni-plated)
- Clamp Ø
18 mm
- Terminal Ø (max.)
25 mm
- Thread length
8 mm
- Length
38.5 mm
IP66
IP68
- Spanner size
40 mm
40 mm
- Content
10 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60080429
- Type
Euro Top MS / PG
Documents & Downloads
Datasheet
Datasheet 2256727 RST 60080429 Cable gland PG29 Brass (Ni-plated) 10 pc(s)
User & Safety Instructions
User & Safety Instructions 2256727 RST 60080429 Cable gland PG29 Brass (Ni-plated) 10 pc(s)
