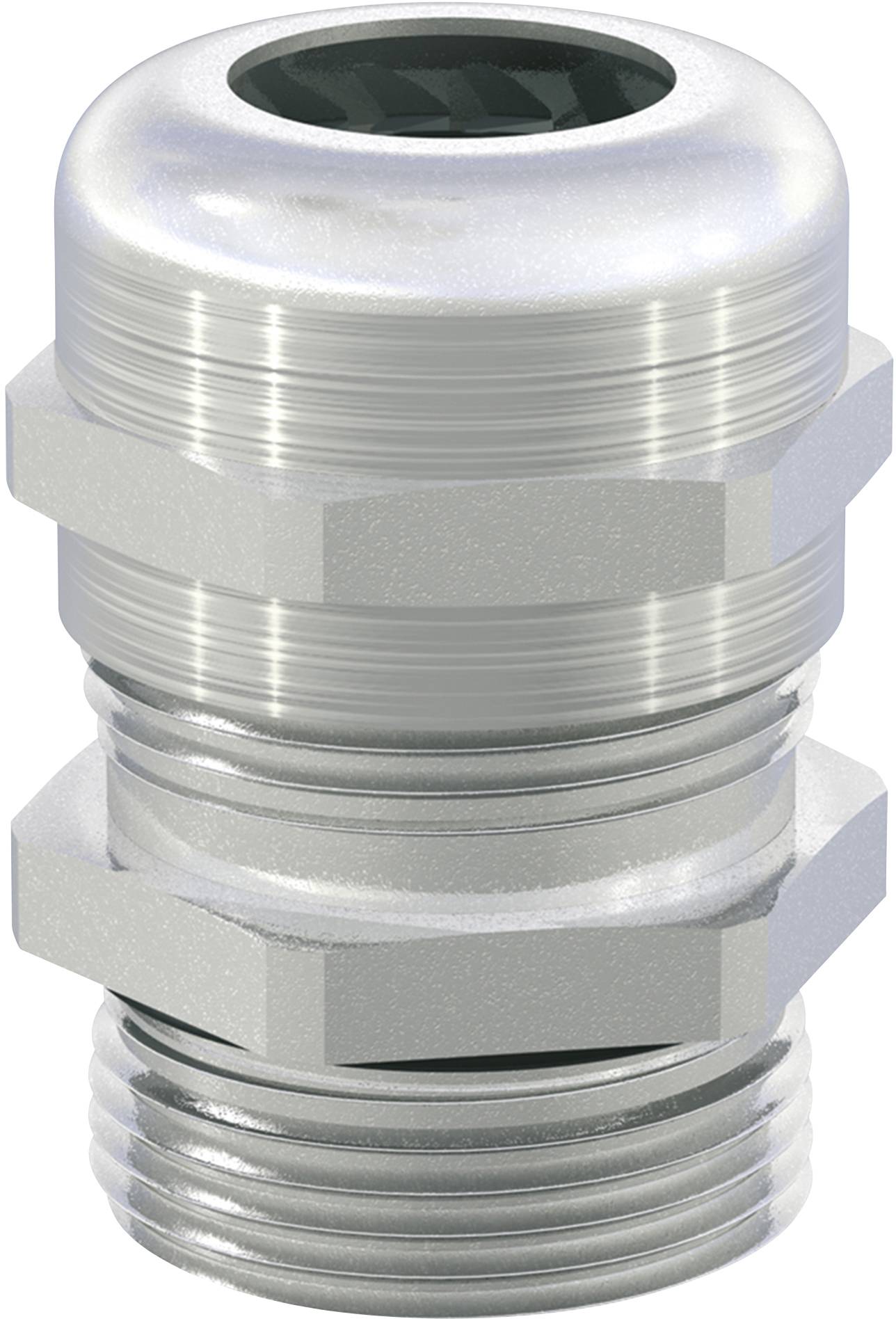

RST 60180411 Cable gland PG11 Brass (Ni-plated) 50 pc(s)
Product type
Cable gland
External thread
PG11
Material
Brass (Ni-plated)
Clamp Ø
3 mm
Terminal Ø (max.)
7 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 60180411 - Euro Top MS / PG - Cable gland - 50 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- Material O-ring: Perbunan
- Material Clamp insert: Polyamide 6
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B.
- Product type
Cable gland
- External thread
PG11
- Material
Brass (Ni-plated)
- Clamp Ø
3 mm
- Terminal Ø (max.)
7 mm
- Thread length
6 mm
- Length
26 mm
IP66
IP68
- Spanner size
20 mm
20 mm
- Content
50 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60180411
- Type
Euro Top MS / PG
Documents & Downloads
Datasheet
Datasheet 2256565 RST 60180411 Cable gland PG11 Brass (Ni-plated) 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2256565 RST 60180411 Cable gland PG11 Brass (Ni-plated) 50 pc(s)
