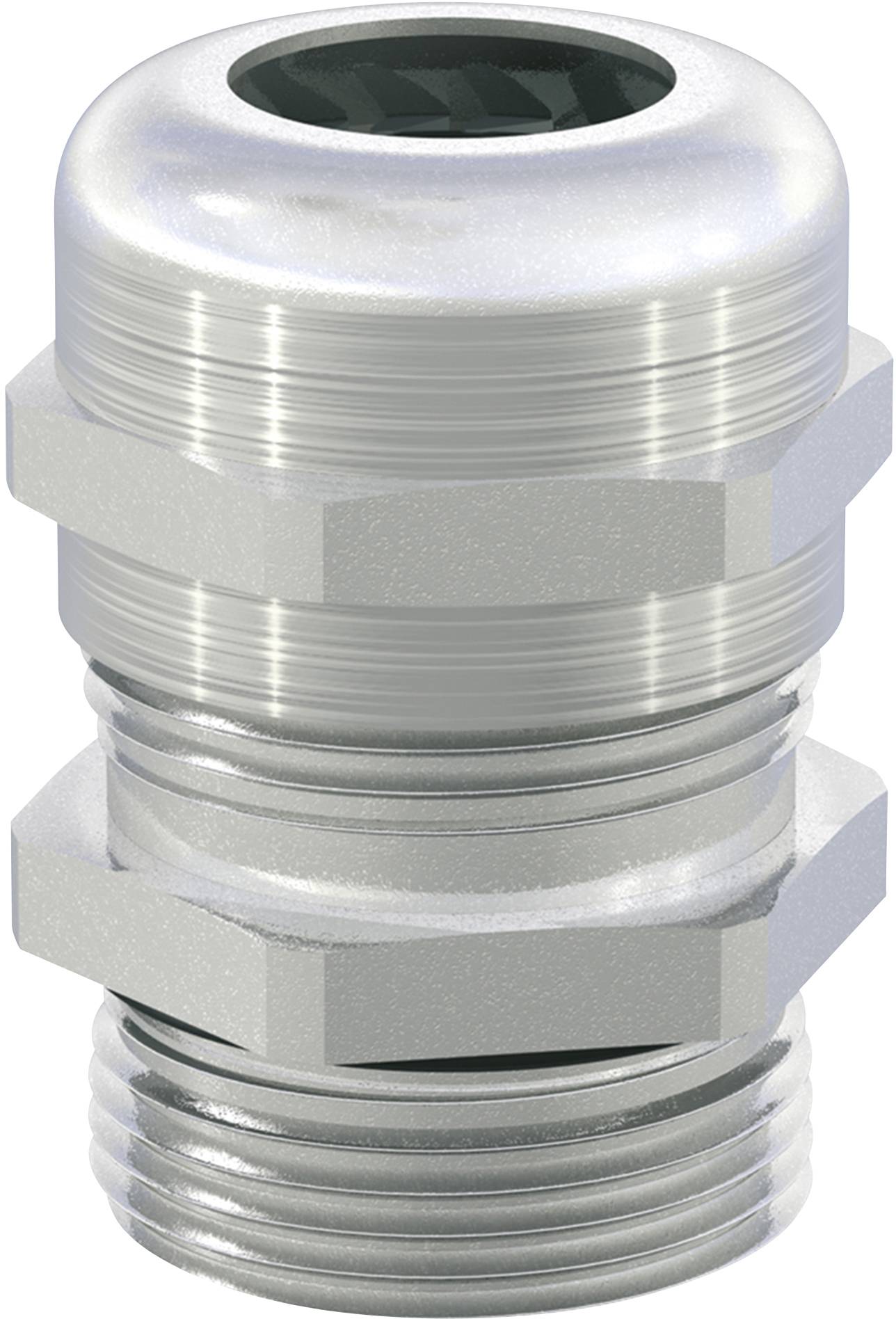

RST 60180512 Cable gland M12 x 1.5 Brass (Ni-plated) 50 pc(s)
Product type
Cable gland
External thread
M12 x 1.5
Material
Brass (Ni-plated)
Clamp Ø
2 mm
Terminal Ø (max.)
5 mm
Datasheet (PDF)
EAN:
Part number:
Item no:
Highlights & Details
RST 60180512 - Euro Top MS / M - Cable screwing - 50 pcs
Our service for you
Technical specifications
- Material Seal insert: Chloroprene
- Material O-ring: Perbunan
- Material Clamp insert: Polyamide 6
- operating temperature min: -40 °C
- operating temperature max: +100 °C
- Note: Cable gland, tested and approved among others according to EN 62444 and UL514B.
- Product type
Cable gland
- External thread
M12 x 1.5
- Material
Brass (Ni-plated)
- Clamp Ø
2 mm
- Terminal Ø (max.)
5 mm
- Thread length
6 mm
- Length
22 mm
IP66
IP68
IP69
- Spanner size
14 mm
14 mm
- Content
50 pc(s)
- RoHS-compliant
Yes
- Manufacturer part #
60180512
- Type
Euro Top MS / M
Documents & Downloads
Datasheet
Datasheet 2256559 RST 60180512 Cable gland M12 x 1.5 Brass (Ni-plated) 50 pc(s)
User & Safety Instructions
User & Safety Instructions 2256559 RST 60180512 Cable gland M12 x 1.5 Brass (Ni-plated) 50 pc(s)
