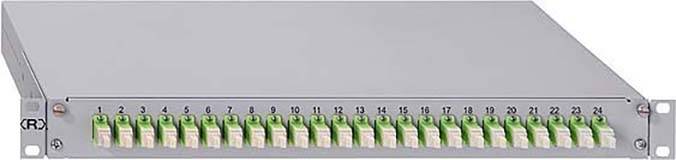

Rutenbeck 6xLC-D OM3 aqua LC Partly equipped 1 U
EAN:
Part number:
Item no:
Technical specifications
- Suitable for number of couplings/adapters: 24
- With number of couplings/adapters: 6
- With front plate: Yes
- With housing: Yes
- With pigtails: Yes
- Mounting type 482.6 mm (19 inch) installation
- Product type
FO splice box
LC
- Patch panel design
Partly equipped
Duplex
Multimode OM3
- Fibre type
50/125 µ
- Cable feed
reverse
- Rack unit
1 U
- Factory colour
Grey
- Length
44 mm
- Width
231 mm
- Height
482 mm
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2298148 Rutenbeck 6xLC-D OM3 aqua LC Partly equipped 1 U
Description
Splicebox, extendable, 19Zoll/1HE, 6xLC-D, OM3, aqua, powder-coated steel sheet casing, factory port identification, with slide extension, pull-out depth approx. 20 cm, can be tilted downwards when open, can be closed with knurled screws, 40 mm resettable box, splice box for holding 12 or 24 pigtails, with max. 4 spliceboxes (fixed), inserted crimp holder Ready for splicing with offset and inserted pigtails incl. 6 x LC-D ceramic couplings, LC fiber pigtails G50/125 Ám, 2 m, MM PC, grade B, with measurement protocol for all fibers incl. serial number, 18 mounted blanking plugs, 4 x rear PG16 screw joints (2 x right/left), 1 x PG16 screw connection included in delivery, light gray (similar to RAL 7035)
