Image similar
Rutenbeck CP-UM A-12 Ap 23910112 Cable casing 236 x 303 x 56 Steel painted 1 pc(s)
Product type
Cable casing
Material
Steel
IP rating
IP21
Width
236 mm
Height
303 mm
EAN:
Part number:
Item no:
Technical specifications
- Number of cable entries: 12
- Number of modules: 12
- Type of cover: Cover
- Cover: With cut-out
- Mounting type: Surface-mounted
- Product type
Cable casing
- Material
Steel
IP21
- Width
236 mm
- Height
303 mm
- Content
1 pc(s)
- Dim
(W x H x D) 236 x 303 x 56 mm
- Material properties
painted
- Depth
56 mm
- Type
CP-UM A-12 Ap
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2294231 Rutenbeck CP-UM A-12 Ap 23910112 Cable casing 236 x 303 x 56 Steel painted 1 pc(s)
Description

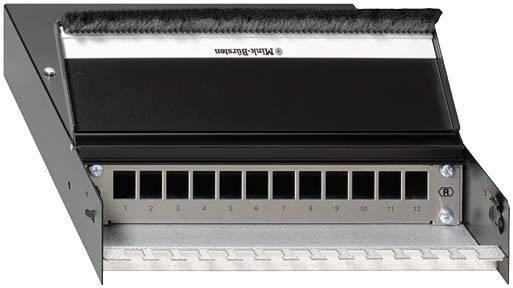

Cable splitter (consolidation point) for up to 12 universal modules UM-Cat. 6A iso A, UM-Cat. 6A iso U A and KMK keystone modules, swiveling cover for patch cable connection, with dust brushes, black (similar to RAL 9005), 236 x 303 x 56 mm, 2150 g.
