RZB Toledo Flat LED/9W-3000K 172 901486.002 LED recessed panel LED (monochrome) White
EAN:
Part number:
Item no:
Highlights & Details

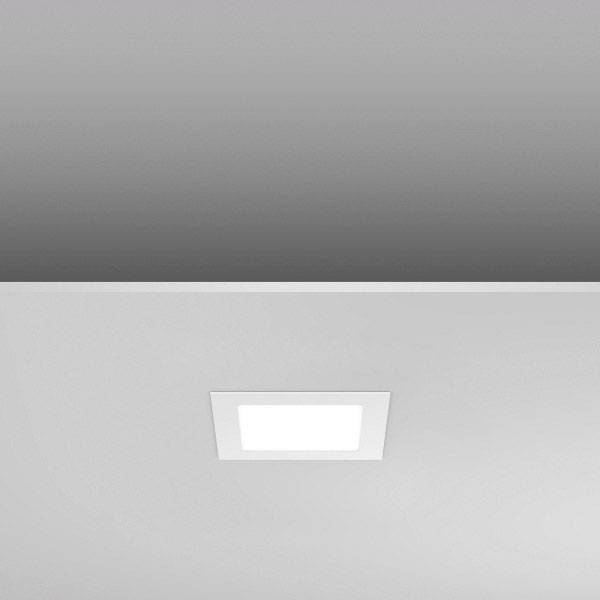

Panel-mounted downlight Toledo Flat LED/9W-3000K 172
- Total luminous flux= 730 lm
- Colour temperature= 3000 K
- White
Technical specifications
- Product type
LED recessed panel
- Bulb type
LED (monochrome)
- Factory colour
White
- Material
Aluminium
- Dim
(L x W x H) 172 x 172 x 3 mm
n.rel.
- Colour
White
- Light bulb included
Yes
3000 K
- Total luminous flux
730 lm
- Width
172 mm
- Height
3 mm
- Length
172 mm
IP40
- Protection class
II
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2234343 RZB Toledo Flat LED/9W-3000K 172 901486.002 LED recessed panel LED (monochrome) White
Description
Features
- Super-flat LED built-in downlight
- LightGuide and diffuser made of yellow-free PMMA
- Very low installation depth
- LED life 50,000 h (L70, B10)
- Color reproduction Ra 80
- Color tolerance: 4-way Macadam (4 SDCM)
- Dynamically adjustable tunable white versions from 2700 K to 6500 K
- Versions with smart+free Bluetooth control for wireless networking and operation via Android / iOS device, free app available for download
- Simple spring mounting for tool-free installation
- Suitable for direct cover with heat insulation material (Not applicable for diameter D 495 mm)
- Separate converter box via plug connection
- DALI converter can be connected to the same voltage, suitable for central emergency power supply
- Attachment casing as accessory for all sizes
- Decor cylinder made of chintz fabric to be retrofitted as accessory, optionally with polycarbonate cover plate satined
- Application areas: Hall, adjoining rooms, hotel, restaurant, meeting rooms, Private area
- Powder-coated aluminum die-cast housing
- LightGuide and plastic cover made of yellow-free plastic (PMMA)
- Plastic cover opal matt
- Ceiling mounting with spring system
- Installation depth depending on the cover thickness
- Operating device (LED converter) external via plug connection
- With light-to-LED converter 250 mm
- Lamp (LED) included in delivery
Scope of delivery
- Panel-mounted downlight Toledo Flat LED/9W-3000K 172
