Scangrip 03.5221 Line-Light 75 LED (monochrome) Work light mains-powered (optional) 10 W 600 lm
Product data sheetEAN:
Part number:
Item no:
Highlights & Details
Work light system Line-Light 75
- Can be used flexibly
- Extremely robust and durable
- Dust- and waterproof
- Expandable
Technical specifications
- 96 SMD LEDs
- Light intensity max. 1300 Lux
- Color rendering index< 80 CRI
- Beam angle 75°.
- Protection class IP67
- Shock resistance IK07
- Temperature range: -10 to +40ºC
- Dim
(Ø x L) 25 mm x 838 mm
- Product type
Work light
- LEDs
96
- Work light features
Waterproof
- Bulb type
LED (monochrome)
- Operating voltage
24 V
- Factory colour
Black
- Colour temperature type
6000 K
10 W
- Luminous flux
600 lm
- Length
838 mm
- (Ø)
25 mm
- Protection class
IP67
- Power supply (LOV)
mains-powered (optional)
A+ (A++ - E)
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2253818 Scangrip 03.5221 Line-Light 75 LED (monochrome) Work light mains-powered (optional) 10 W 600 lm
Description

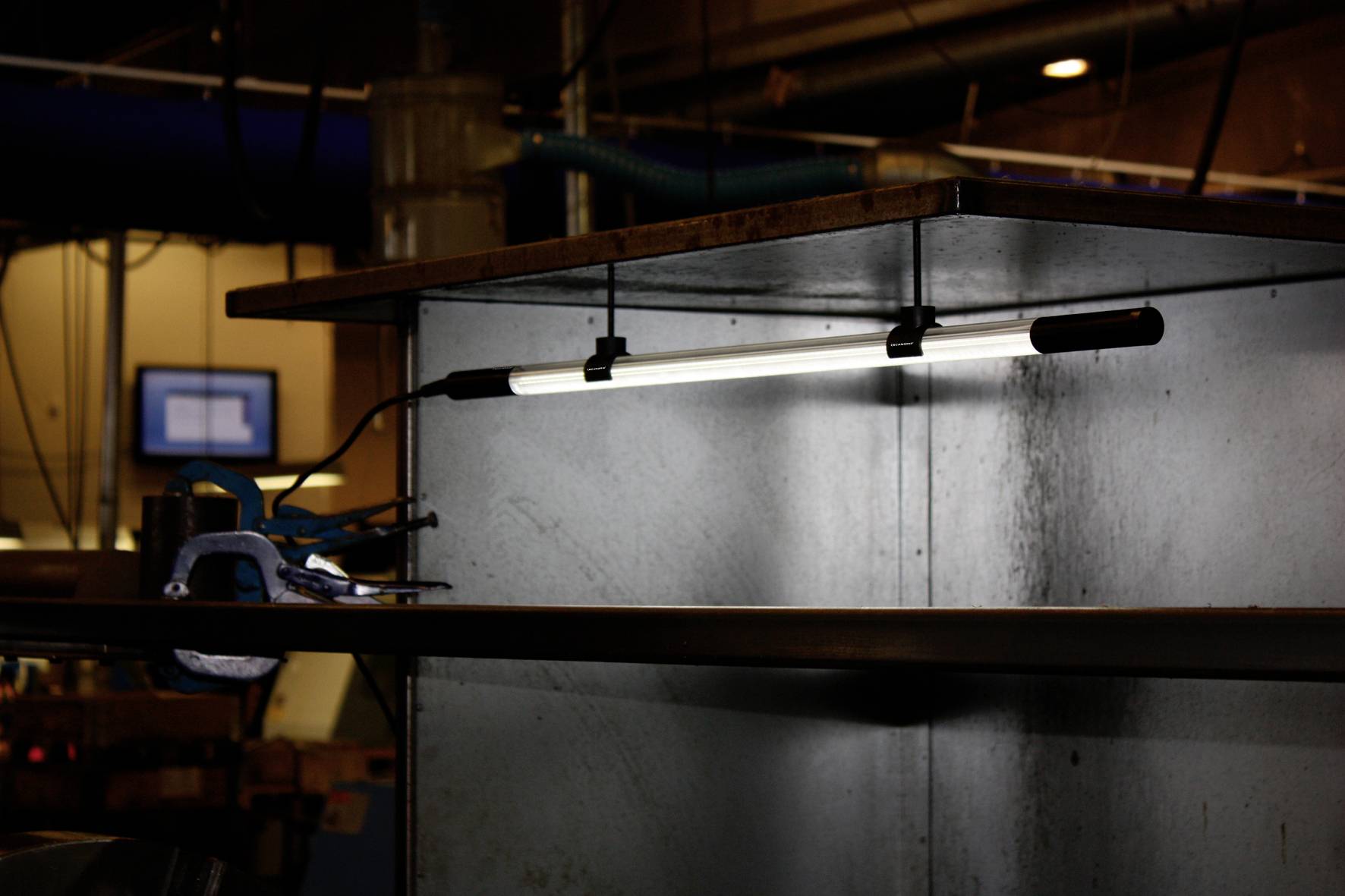

Line-Light is a flexible lighting system for universal applications wherever bright, efficient and bundled light is required at the workplace.
With a focused beam angle of 75°, Line-Light enables an extremely powerful illumination of your work area, which is almost twice as intensive as a normal 36 W fluorescent tube. The lamp can be rotated for an optimum angle of illumination and saves space.
The lamp consists of a closed and extruded acrylic profile, which is extremely robust and resistant to strong impacts, impacts and vibrations of industrial machines. The lamp is dust- and waterproof. The technical life of the LED is at least 100,000 hours.

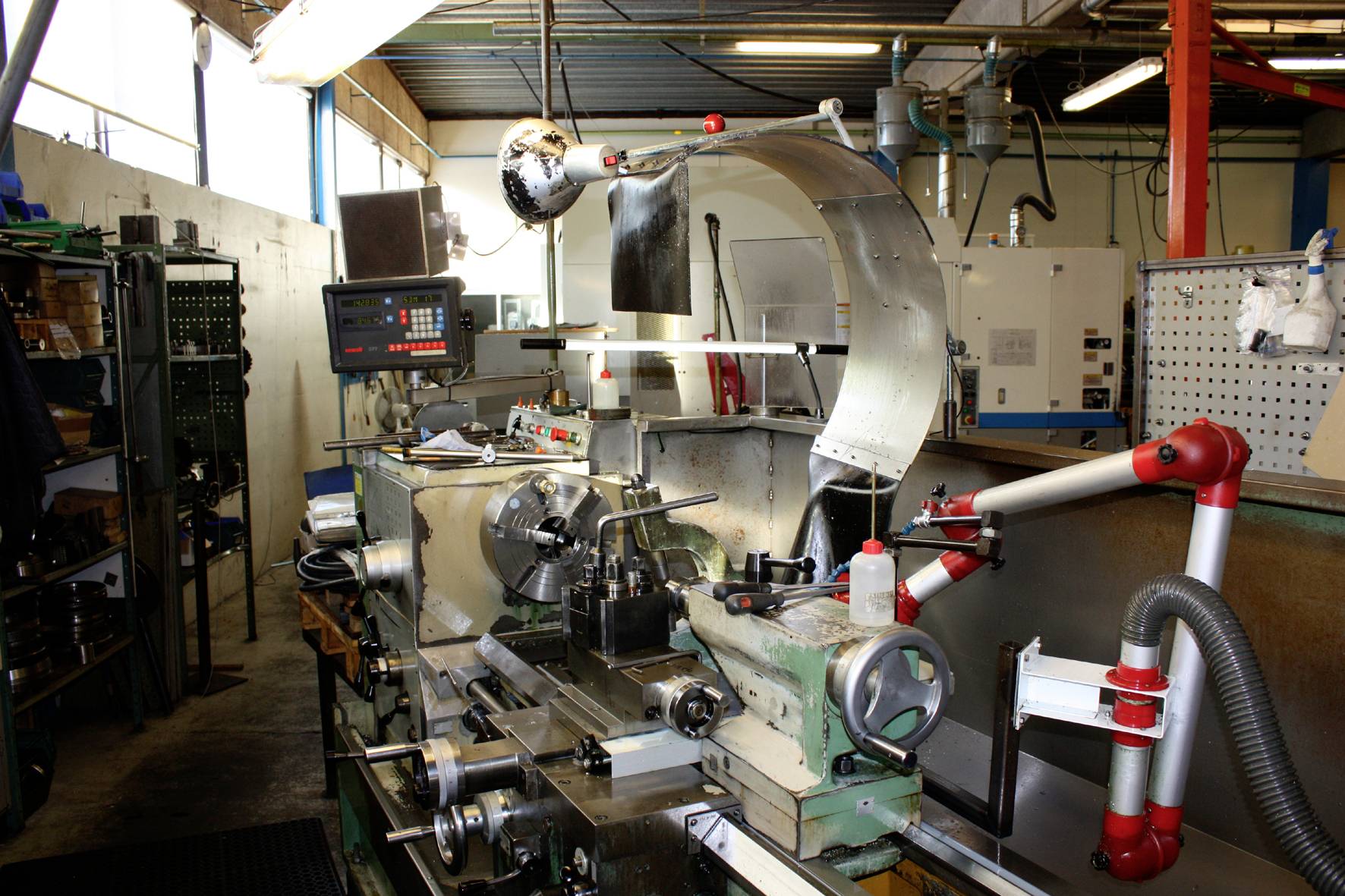

Can be used universally, e.g. on the lifting platform, workbench, workshop, at the workplace, in the delivery van, in production, etc.
This text is machine translated.
With a focused beam angle of 75°, Line-Light enables an extremely powerful illumination of your work area, which is almost twice as intensive as a normal 36 W fluorescent tube. The lamp can be rotated for an optimum angle of illumination and saves space.
The lamp consists of a closed and extruded acrylic profile, which is extremely robust and resistant to strong impacts, impacts and vibrations of industrial machines. The lamp is dust- and waterproof. The technical life of the LED is at least 100,000 hours.
Can be used universally, e.g. on the lifting platform, workbench, workshop, at the workplace, in the delivery van, in production, etc.
This text is machine translated.
Scope of delivery
- Line light 75 · Instructions
- This text is machine translated.
