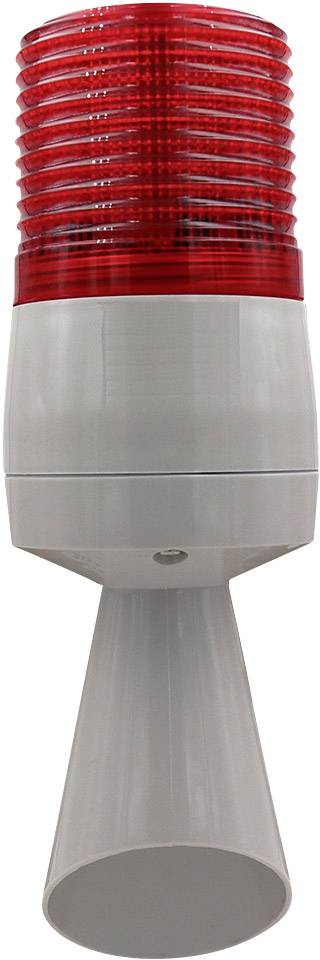

Schabus Hooter 200994 200994 230 V
EAN:
Part number:
Item no:
Number
Total (€ 117.64 / piece)
€ 117.64
plus VAT.
Only 10 Piece(s) available
Technical specifications
- Operating voltage:230 V AC / 50 Hz
- Casing: Gray, ABS
- Calotte color: Red, polycarbonate
- Cable feed 400 mm, 3 wires
- Cable feed: Surface-mounted or flush-mounted
- Mounting types: Sound outlet at the bottom
- Protection class: IP54 for vertical mounting
- Temperature range: -20 to +50 degrees
- Sound pressure: Max. 100 dB (1 m)
- Flashing frequency: 1.0 - 1.2 Hz
- Dim. (H x W), hole spacing 233 x 83 mm, 44 mm
- Product type
Hooter
- Operating voltage
230 V
- Type
200994
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 2239482 Schabus Hooter 200994 200994 230 V
Conformity certificate
Conformity certificate 2239482 Schabus Hooter 200994 200994 230 V
Description
Combination electric small horn with flashing light for universal optical/acoustic applications.
This text is machine translated.
This text is machine translated.
Features
- Signal lamp - 70 mm diameter, optionally flashing / luminous
- Sound and light can be controlled separately.
