Schabus Light LED 200894 200894 Red Flasher 230 V AC
EAN:
Part number:
Item no:
Datasheet (PDF)
Number
Total (€ 84.03 / piece)
€ 96.64
-13 %
€ 84.03
plus VAT.
Only 4 Piece(s) available
Technical specifications
- Operating voltage 230 VAC / 50-60Hz
- Connection cable 4 mm.
- Flashing frequency: 1.0-1.2 Hz
- Functional range: -20 degrees / + 50 degrees
- Dimensions of light bulb: Diameter 83 mm x H 95 mm
- Max. Distance from the wall: 114 mm
- Height without flange 157 mm
- Material flange and housing: ABS
- Light body material: Polycarbonate red
- Product type
Light
- Operating voltage
230 V AC
- Colour
Red
- (Ø)
83 mm
- Height
95 mm
- Features
LED
IP65
- Cable length
400 mm
- Dim
(Ø x H) 83 mm x 95 mm
- Material
Acrylonitrile butadiene styrene
- Signal type
Flasher
- Type
200894
- Max. temperature
50 °C
- Min. temperature
-20 °C
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2239477 Schabus Light LED 200894 200894 Red Flasher 230 V AC
User & Safety Instructions
User & Safety Instructions 2239477 Schabus Light LED 200894 200894 Red Flasher 230 V AC
Description

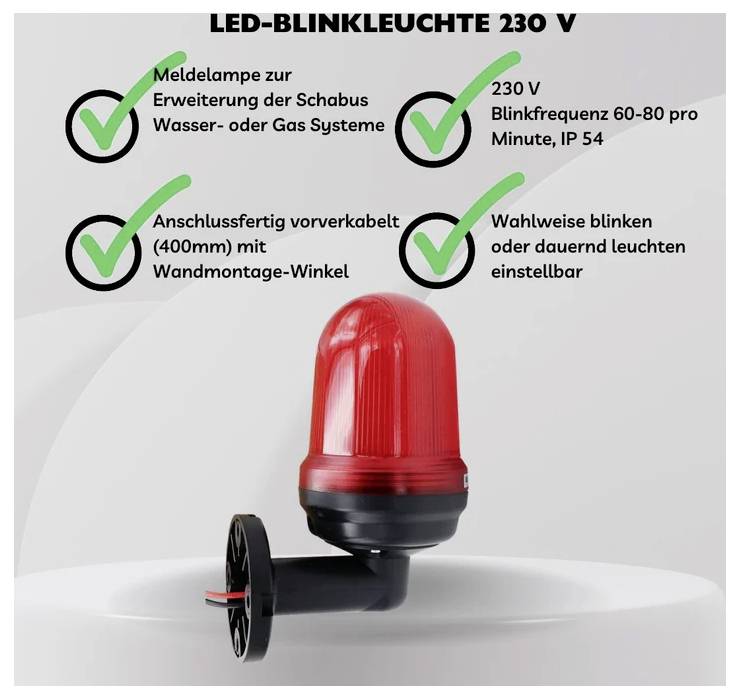

Message lamp in connection with our warning systems: For example, in the living area, it can be shown that a problem has occurred in the basement. The lamp for 230 V AC operation is pre-wired ready for connection (400 mm cable) and supplied with wall mounting bracket. A switch is used to select whether the lamp should flash (40 - 80 per minute) or be permanently lit. High-quality, ultra-bright LEDs that are not operated at their light limit stand for a long service life.
Although the IP65 degree of protection of the flashing light is generally suitable for use in harsh environments, we recommend installing it under a canopy at least to protect it from permanent humidity.
This text is machine translated.
