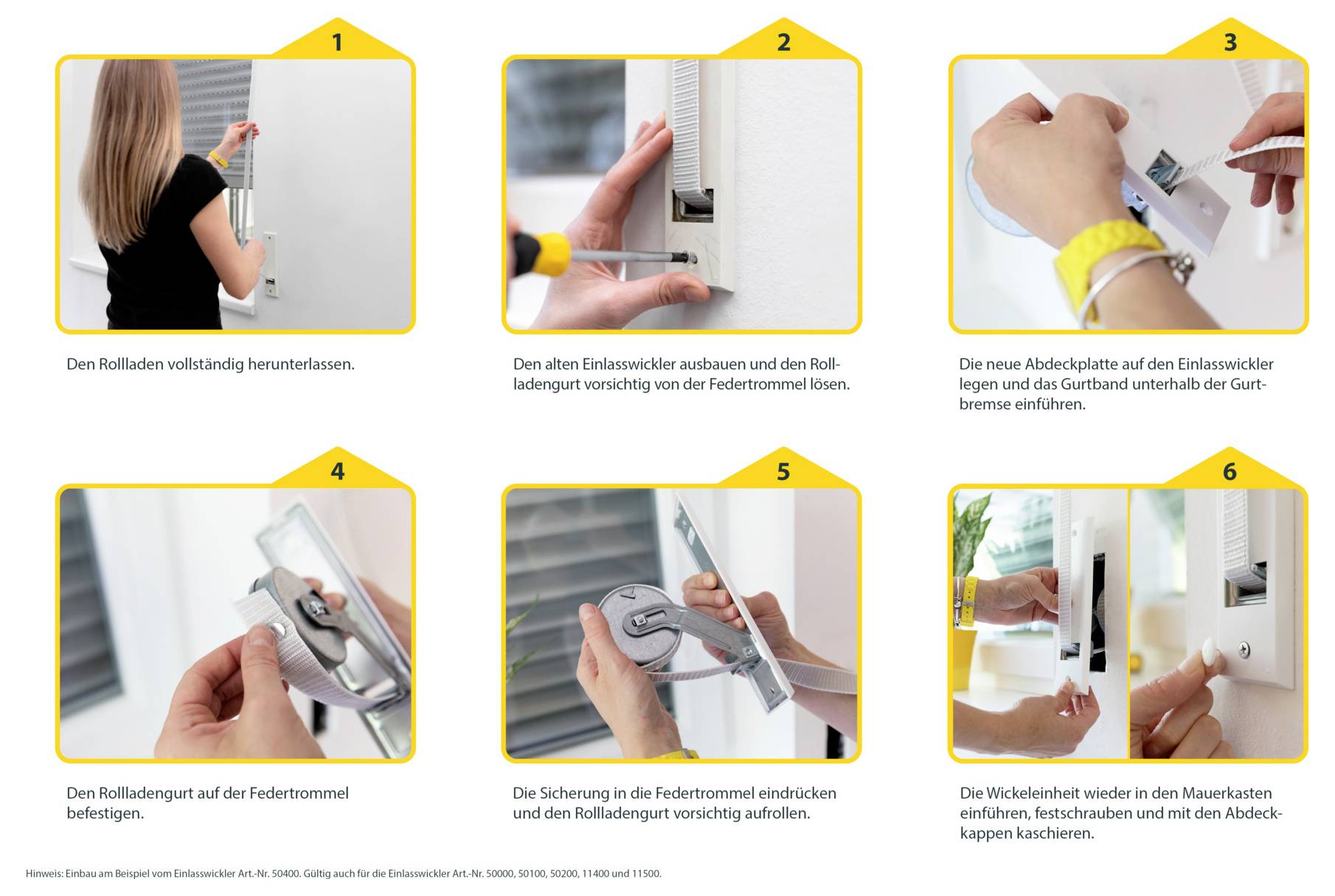

Illustrated 6-step instructions for replacing a roller shutter strap: release the old strap, remove the cover and roller, insert the new strap, secure it, wind it onto the drum, then reinstall the cover.

Six-step illustrated guide for replacing a roller shutter winder, showing how to remove the old unit and install the new winding mechanism and strap.

Instructional infographic showing 6 steps to replace a roller shutter strap: lower blind, open the winder, thread the new strap, secure it to the drum, tension the spring, and reinstall the unit.

Six-step illustrated guide to replace a roller shutter cord: lower shutter, remove old winder, thread new cover and cord, attach to spring drum, lock safety tab, and reinsert casing.

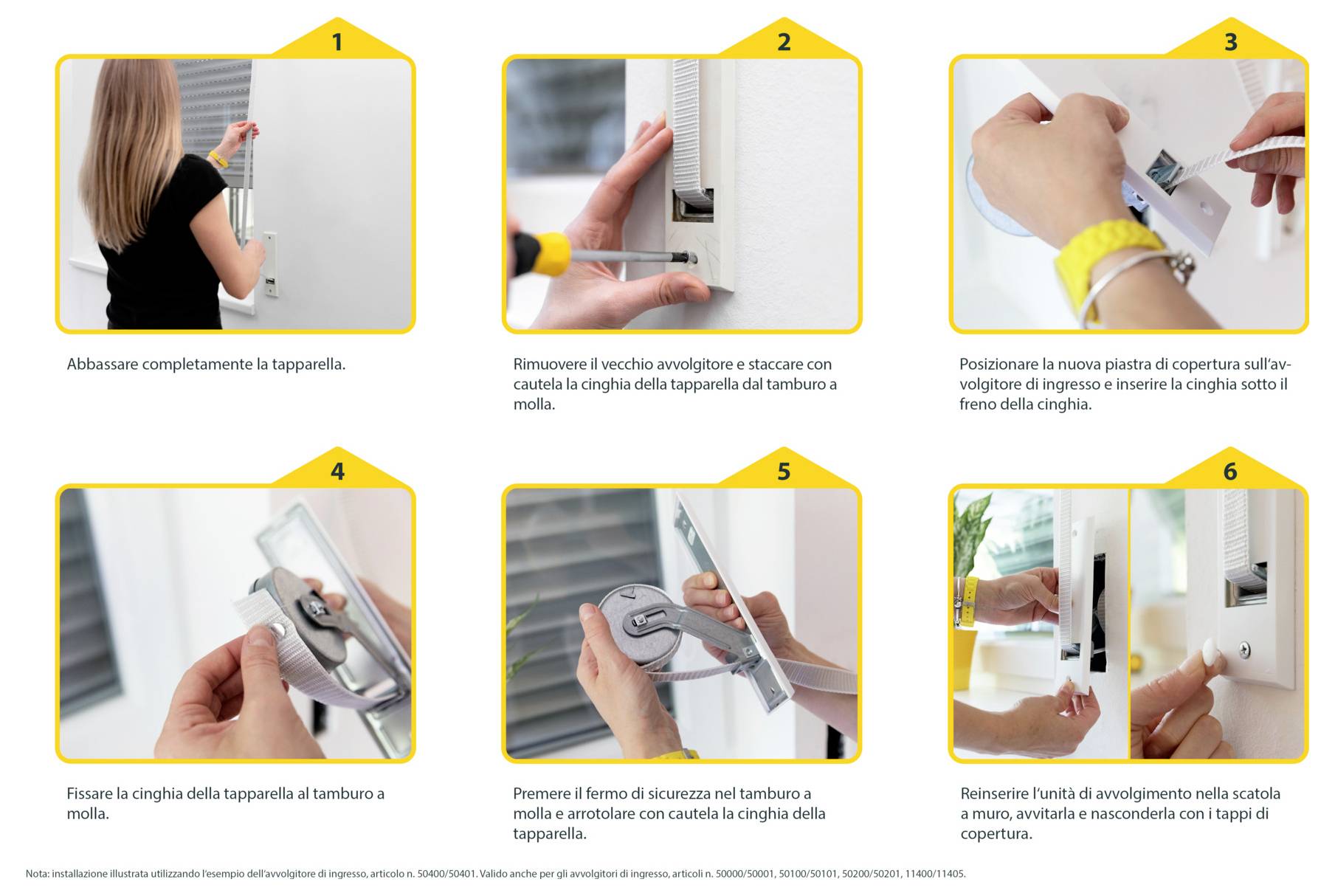

Step-by-step guide showing how to replace a roller shutter strap, with six numbered photos of hands removing parts, attaching the new strap, and reassembling the mechanism.

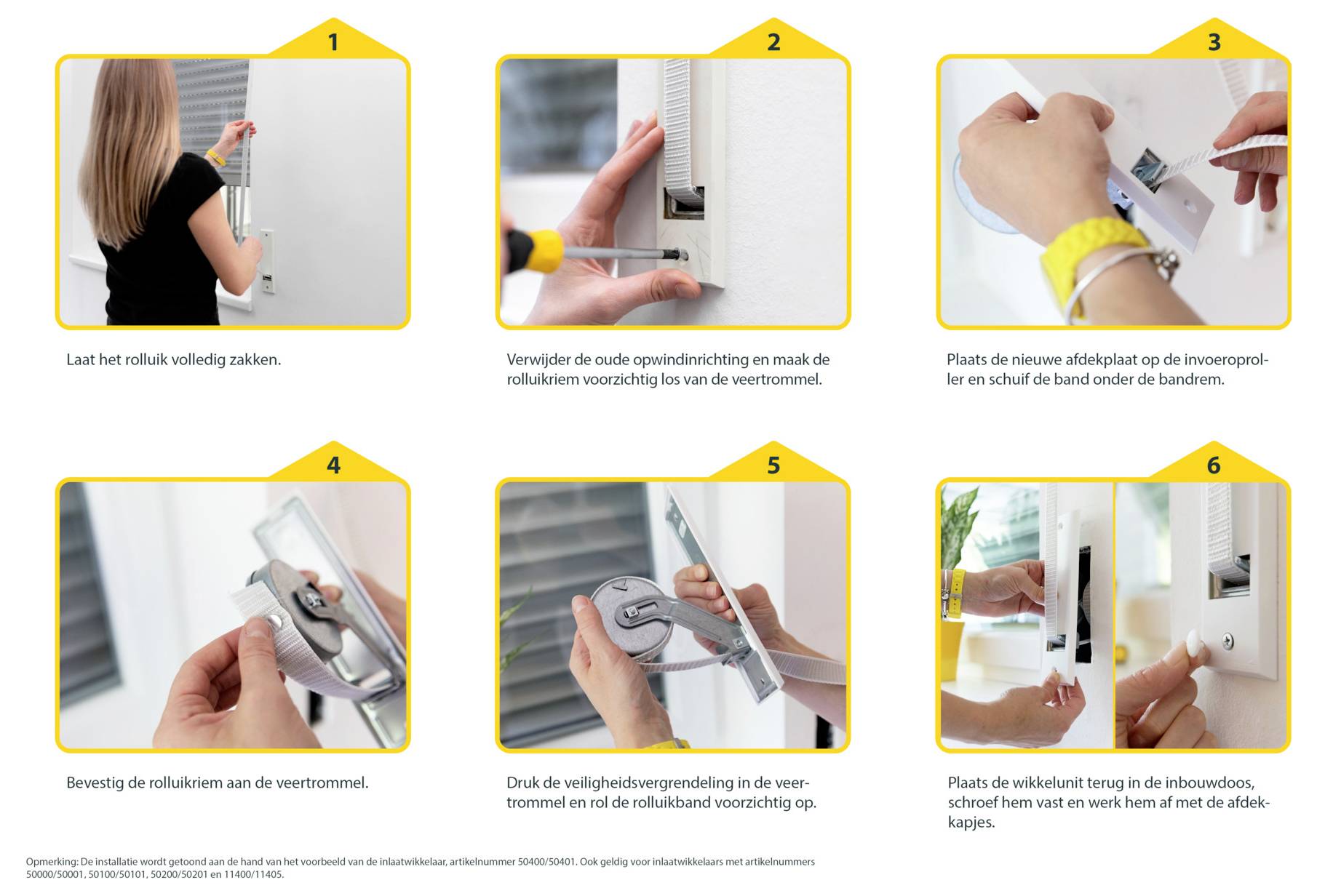

Instructional graphic showing 6 steps to replace a roller blind: remove old stop, fit new end cap, attach adhesive strip, secure roller tube, press safety lock, and reinstall in the window frame.

Six-step illustrated guide to replacing roller blind tape: remove blind, detach old tape, fit new tape with adjustment slider, wrap it around the drum, secure the lock, and reattach to the wall bracket.

Step-by-step guide showing how to remove and reinstall a window blind: release the blind, remove the end cap and spring mechanism, then reattach and secure it.

1/14

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

12 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 4.49 / piece)

€ 4.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

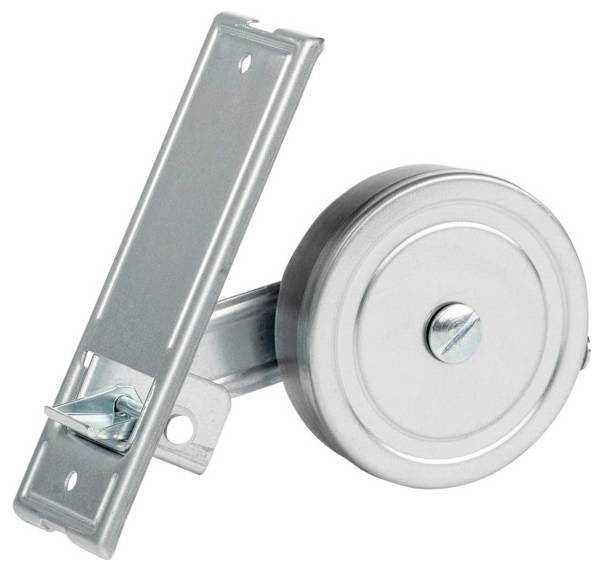

Schellenberg inlet winder Maxi, hole spacing 10.5 cm, flush-mounted shutter belt winder, galvanized, 50100

Robust intake winder for blinds up to 2.30 m height;Maxi shutter system, 105 mm hole distance; max. 5.0 m belt length and 23 mm belt width; pre-stressed spring, installation depth adjustable between 108 and 128 mm; individually expandable with separately available Schellenberg cover plate

Technical specifications

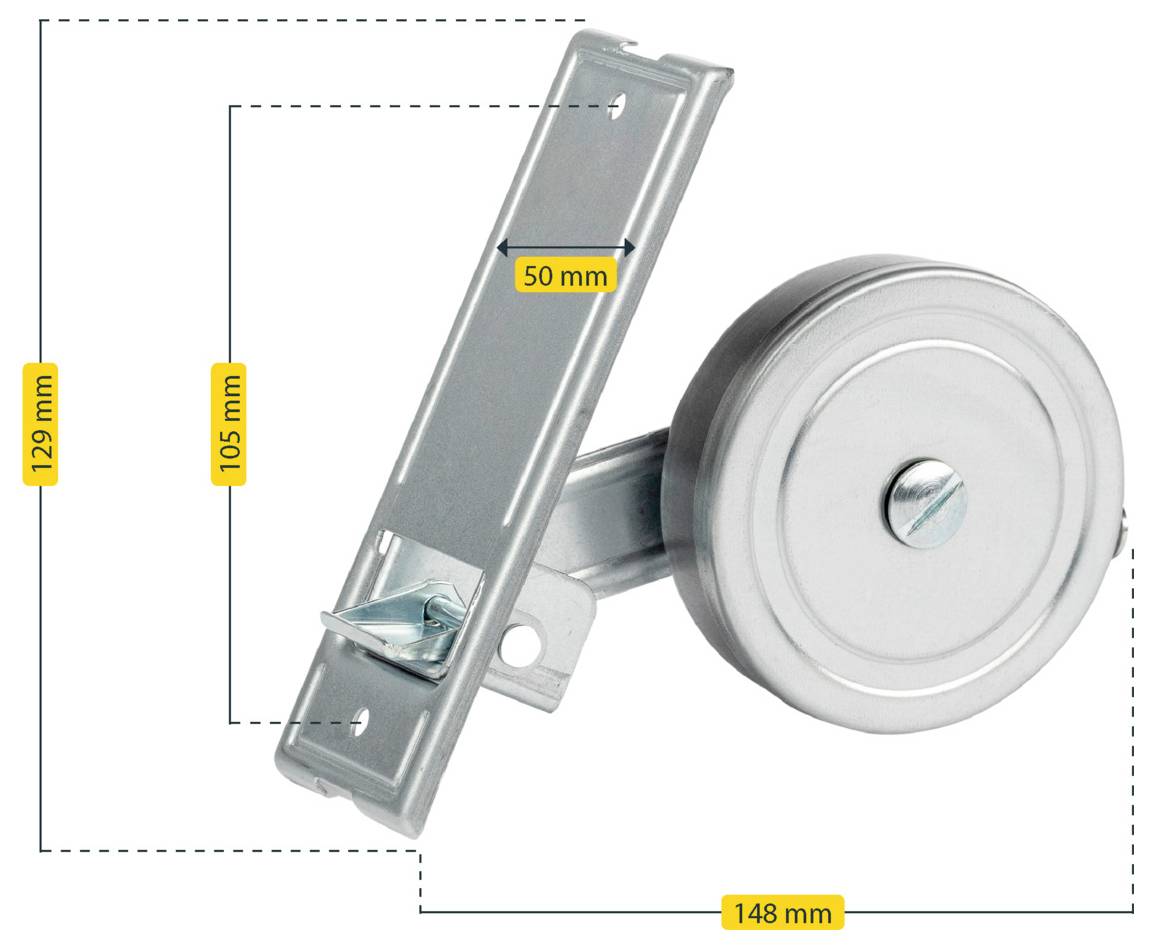

Hole spacing 105 mm (10.5 cm)
Belt width: Suitable for 18–23 mm

Product type: Roller blinds systems

Compatible with: Schellenberg Mini

Factory colour: Silver

Mounting type: Flush mount

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3820498 Schellenberg 50100 Roller blinds systems Compatible with Schellenberg Mini

Description

This galvanized steel intake winder is particularly robust and durable. It is compatible with the Maxi shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum is suitable for shutters up to a height of 2.30 m and a maximum belt length of 5.0 m. The belt winder is installed flush-mounted in a suitable wall box and has a hole distance of 105 mm. The installation depth is variable, since the spring drum can be moved up to 2 cm if required. The spring of the belt winder is pre-stressed to enable easy installation of the strap. No cover plate is included in the delivery for an individual design of the belt winder matching to your living environment. These are available separately in various designs with suitable hole spacing.
