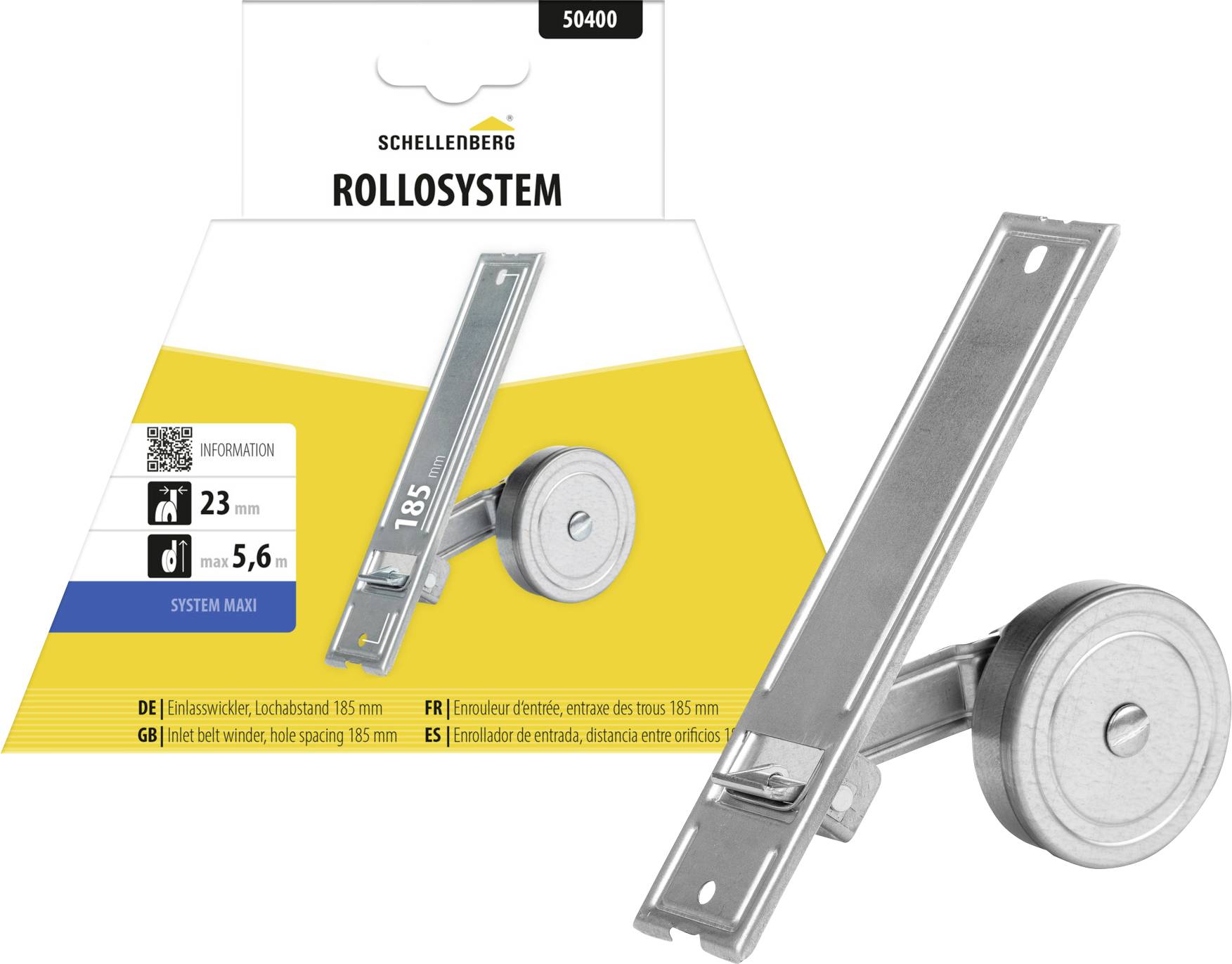

Product package and photo of a Schellenberg 'ROLLSYSTEM' window blind roller mechanism with metal bracket and wheel, showing 23 mm and max 5.6 m specifications.

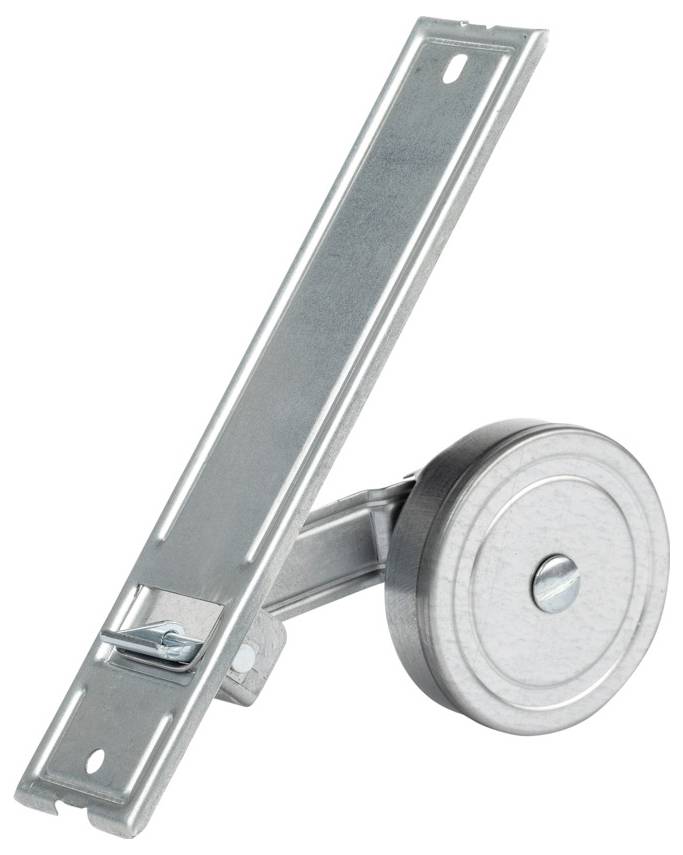

Metal garage door roller bracket with attached wheel, shown on a white background.

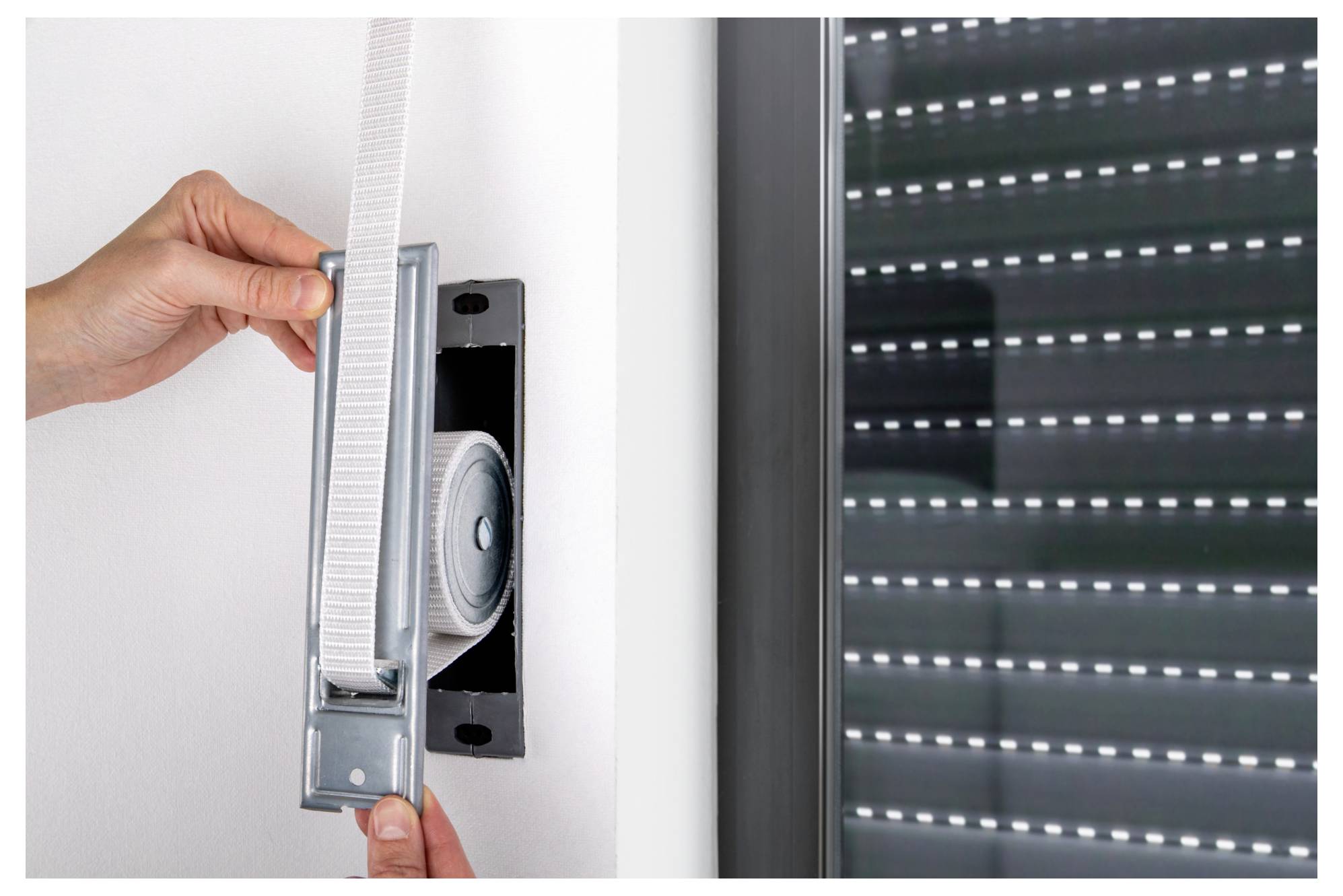

Hand installing a metal window blind chain mechanism into a wall mount beside a closed shutter blind.

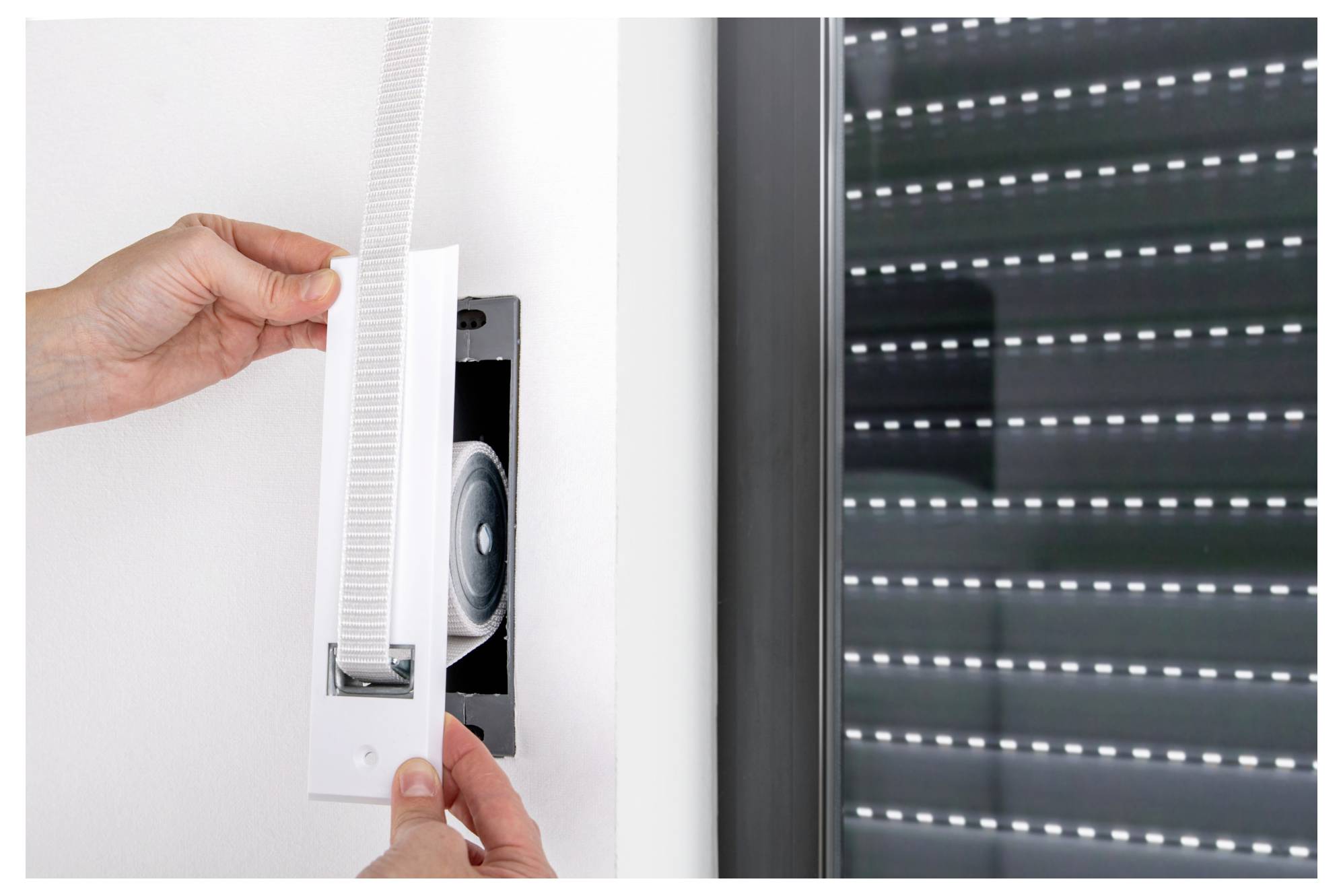

Hands installing a wall-mounted ventilation cover or air vent beside a window blind.<br>

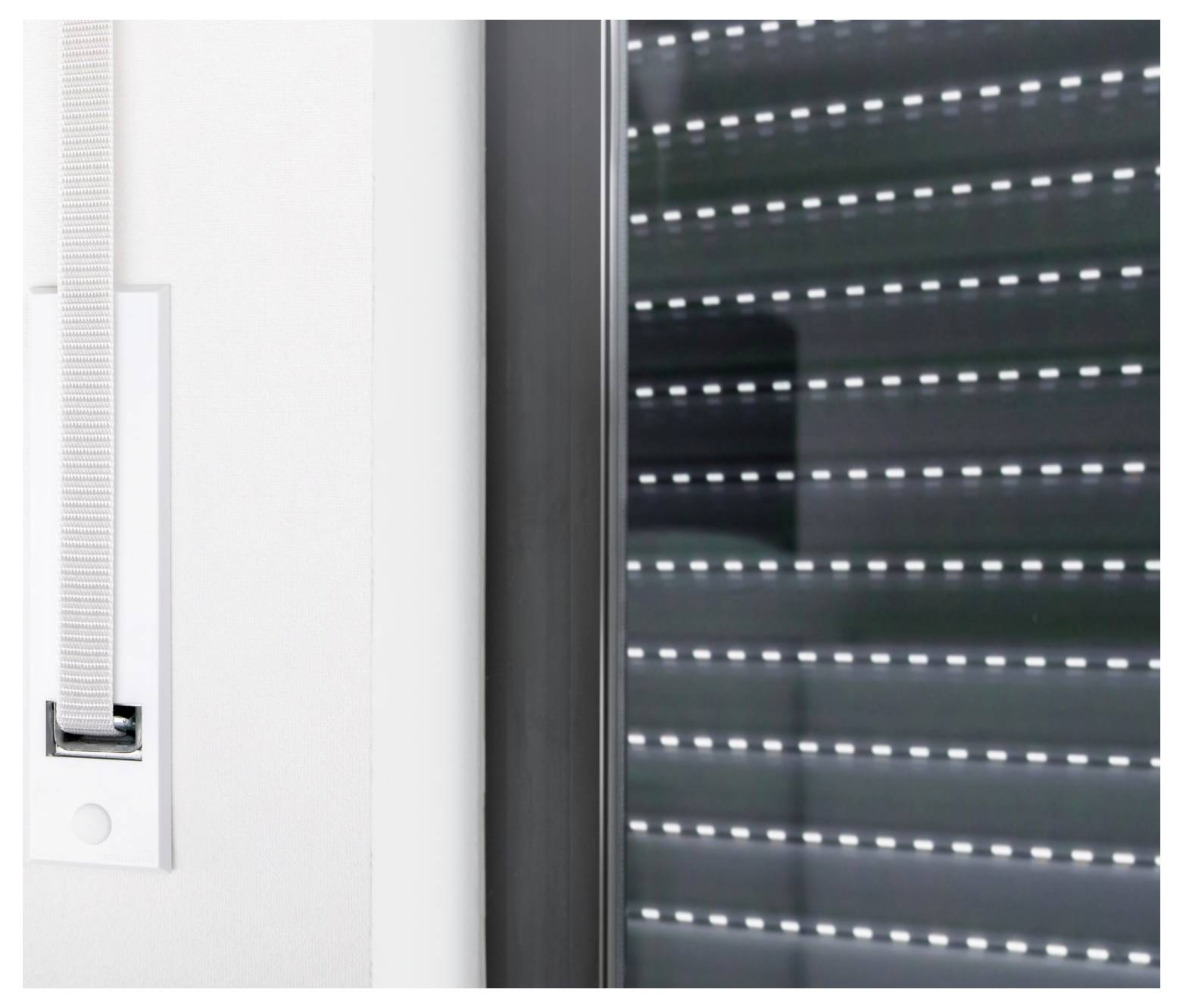

Close-up of a white window blind control next to a window with closed dark slatted blinds.

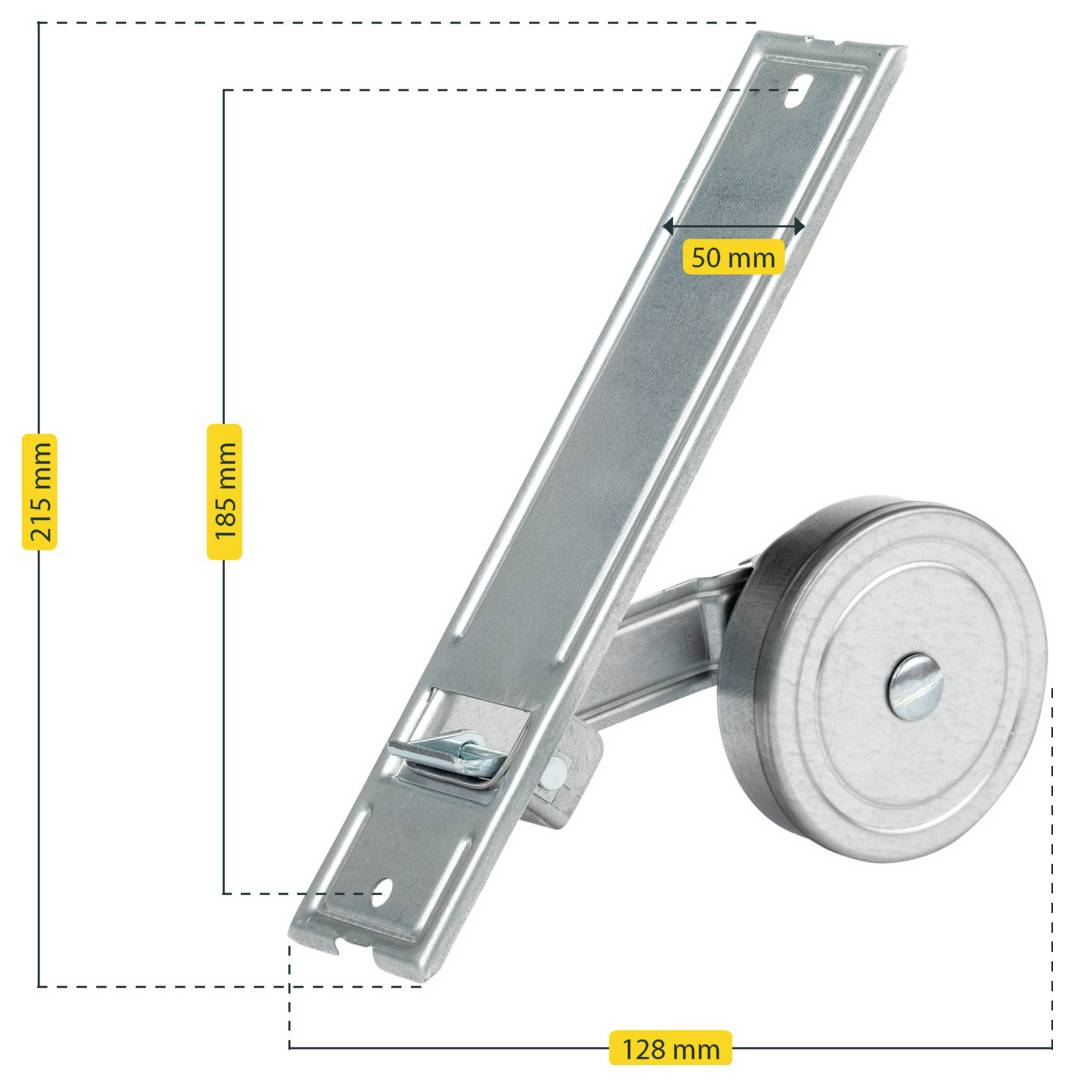

Metal wheel roller bracket with dimensions shown: 215 mm overall height, 185 mm bracket length, 128 mm width, and 50 mm wheel offset.

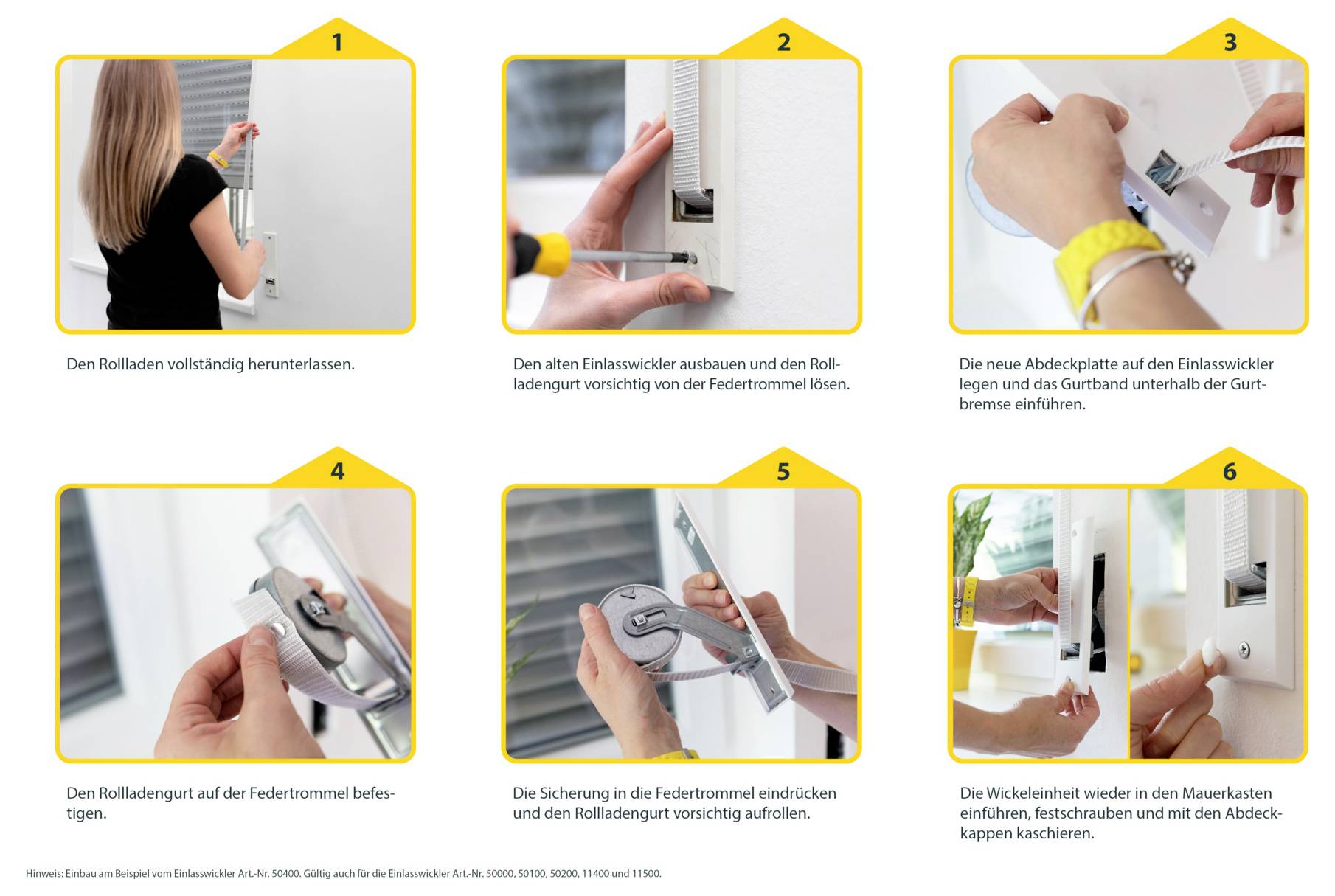

Six-step pictorial guide for replacing a roller shutter cord winder, showing removal, opening, threading, securing, winding, and reassembly.

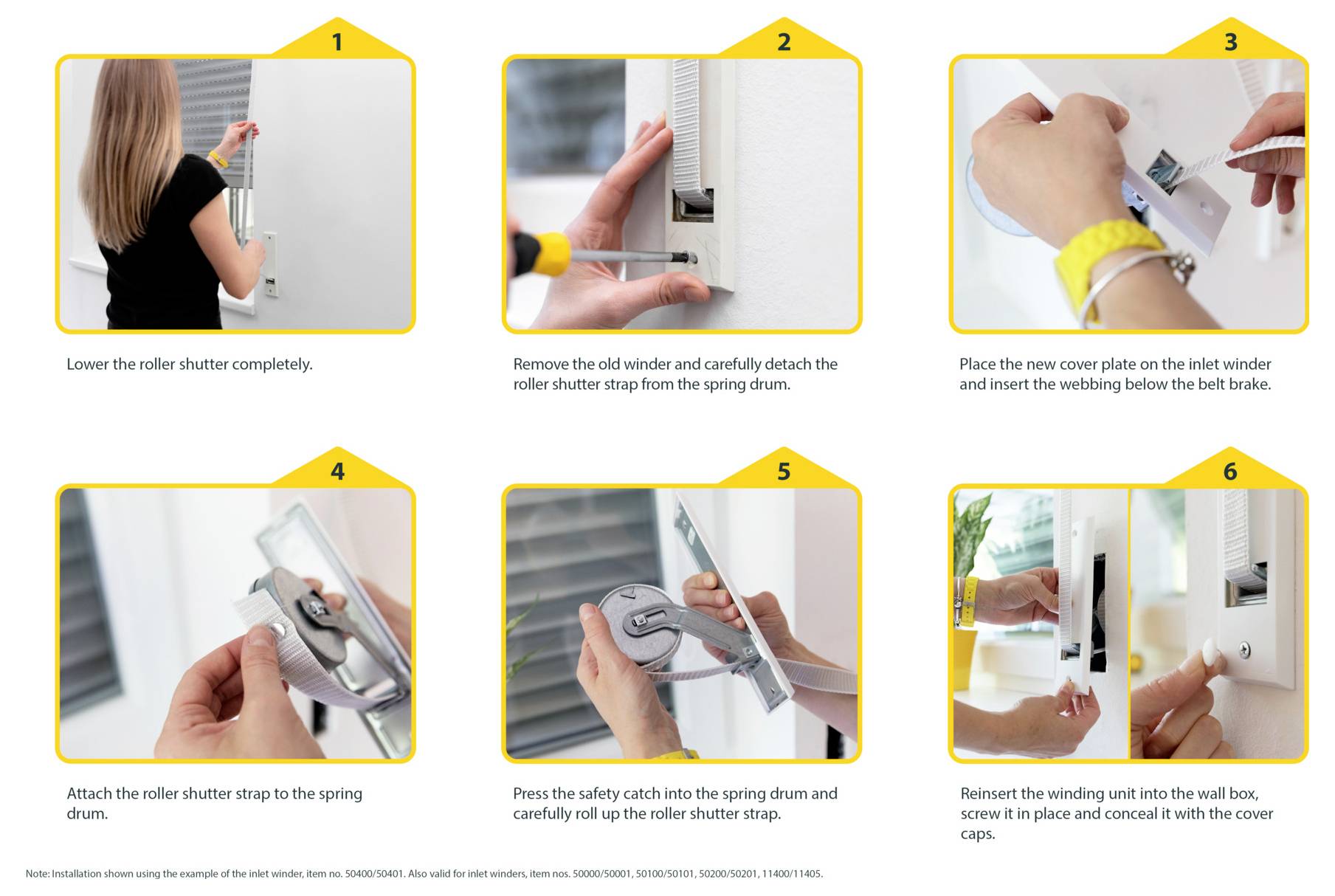

Instructional six-step diagram showing how to replace a roller shutter winder strap, with numbered photos and captions for each step.

1/8

Dispatches on Fri, 18 Sep

Sales and shipping:

Conrad Electronic Terms & Conditions

Quantity (Piece(s))

Savings

Package size (plus VAT.)

Volume discounts vary depending on the seller

You save € 0.00

Number

Piece(s)

Total (€ 7.97 / piece)

€ 7.97

plus VAT.

Report legal concerns

Highlights & Details

Schellenberg inlet winder Maxi, hole spacing 18.5 cm, flush-mounted shutter belt winder, galvanized, 50400

Robust intake winder for blinds up to 2.30 m height;Maxi shutter system, 185 mm hole distance; max. 5.6 m belt length and 23 mm belt width; pre-stressed spring, installation depth adjustable between 115 and 135 mm; individually expandable with separately available Schellenberg cover plate

Technical specifications

Hole spacing 18.5 cm (185 mm)

Product type: Roller blinds systems

Compatible with: Schellenberg Maxi

Belt width: 23 mm

Belt length: 5.6 m

Factory colour: Silver

Mounting type: Flush mount

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3820500 Schellenberg 50400 Roller blinds systems Compatible with Schellenberg Maxi

Description

This galvanized steel intake winder is particularly robust and durable. It is compatible with the Maxi shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum is suitable for shutters up to a height of 2.30 m, WAS corresponds to a maximum belt length of approx. 5.6 m.
The belt winder is installed flush-mounted in a suitable wall box and has a hole distance of 185 mm. The installation depth is variable, since the spring drum can be moved up to 2 cm if required. The spring of the belt winder is pre-stressed to enable easy installation of the strap.
No cover plate is included in the delivery for an individual design of the belt winder matching to your living environment. These are available separately in various designs with suitable hole spacing.
