Name: Schellenberg 50200 Roller blinds systems Compatible with Schellenberg Maxi
Brand: Schellenberg
SKU: 3820499
Availability: InStock

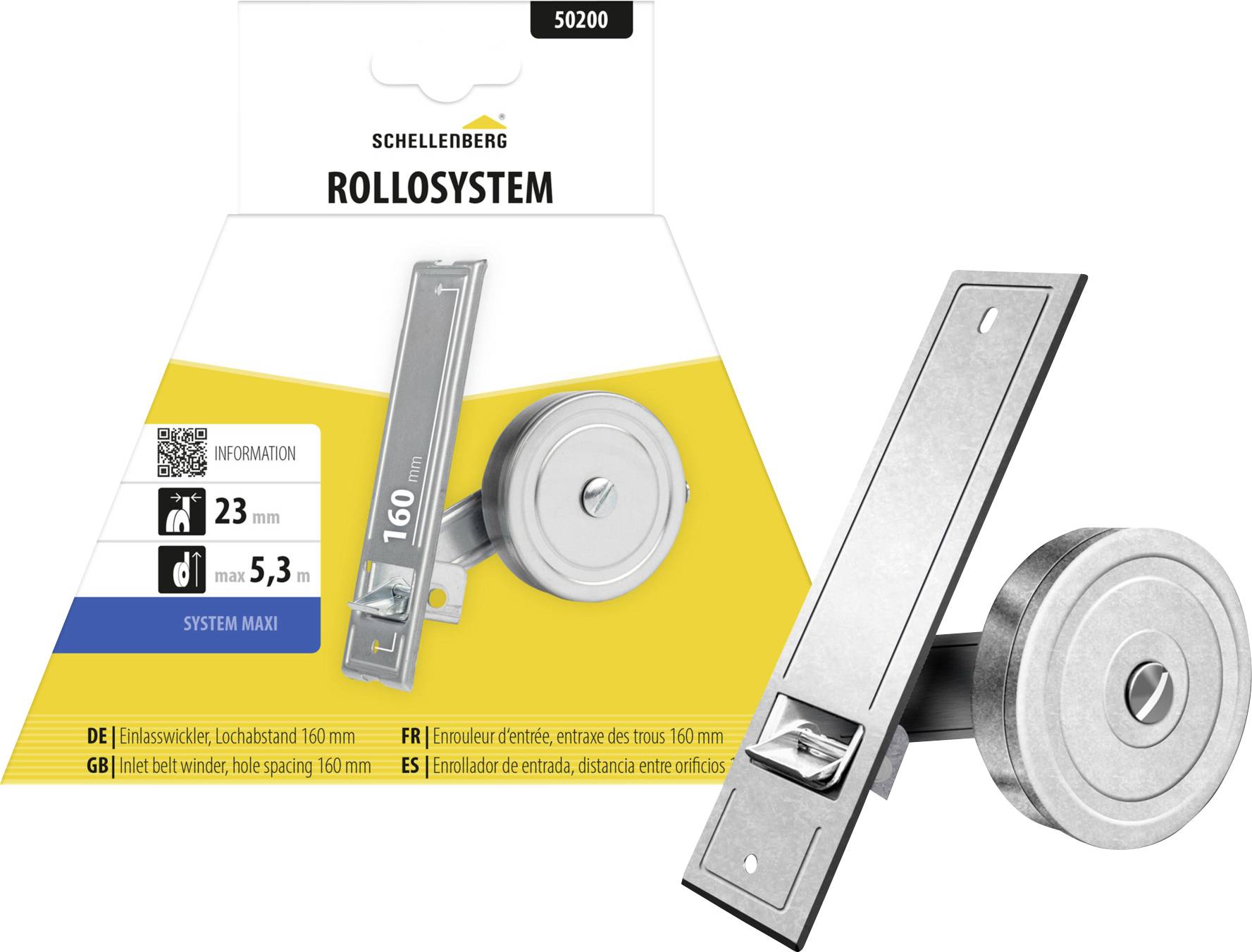

Product packaging for Schellenberg roll shutter system, showing a silver roller and bracket labeled '160 mm' and 'max. 5.3 m' with product number 50200.

Metal door lockset with a lever handle and round deadbolt shown on a white background.

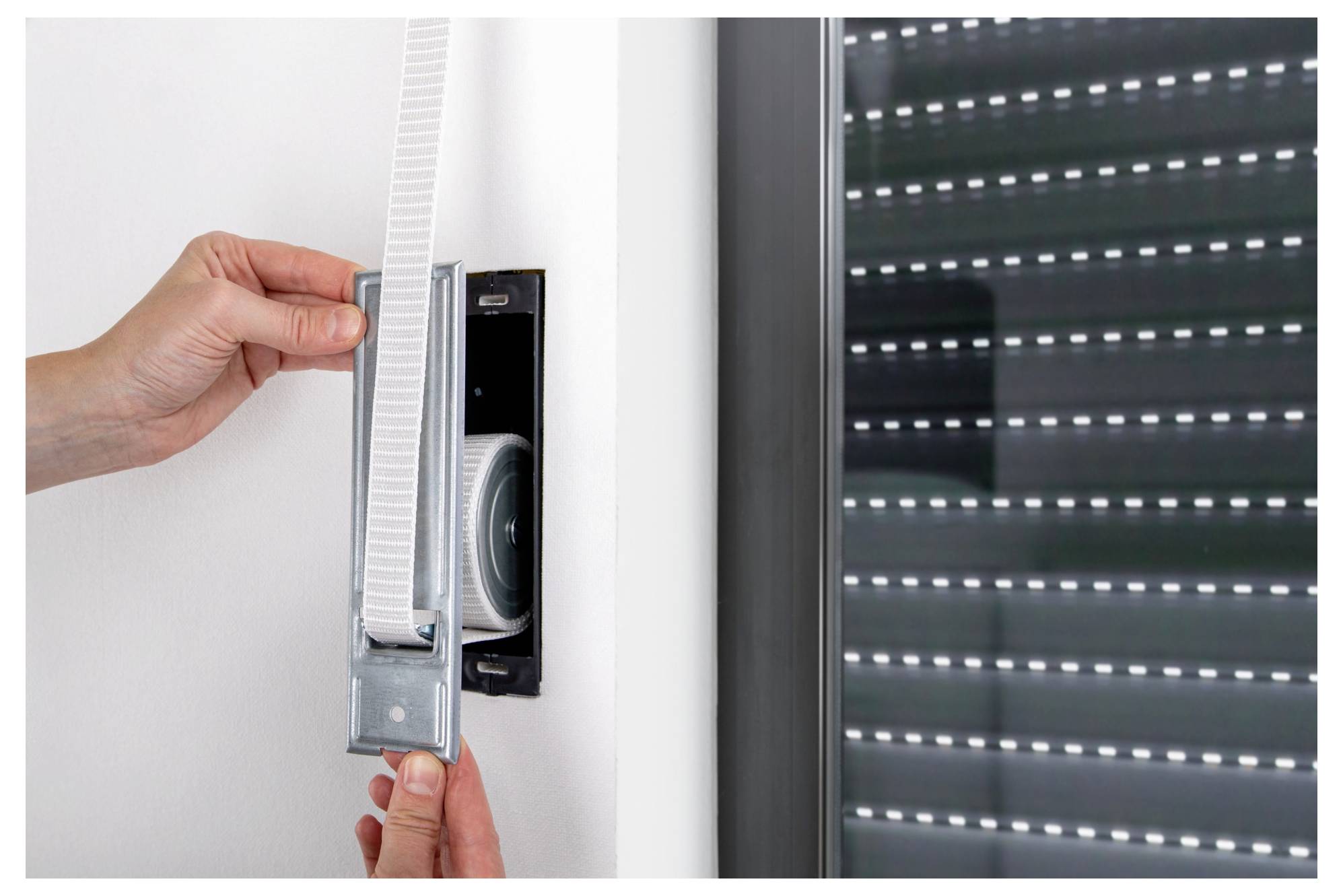

A hand adjusting a window shutter strap on a wall-mounted crank beside a closed window.

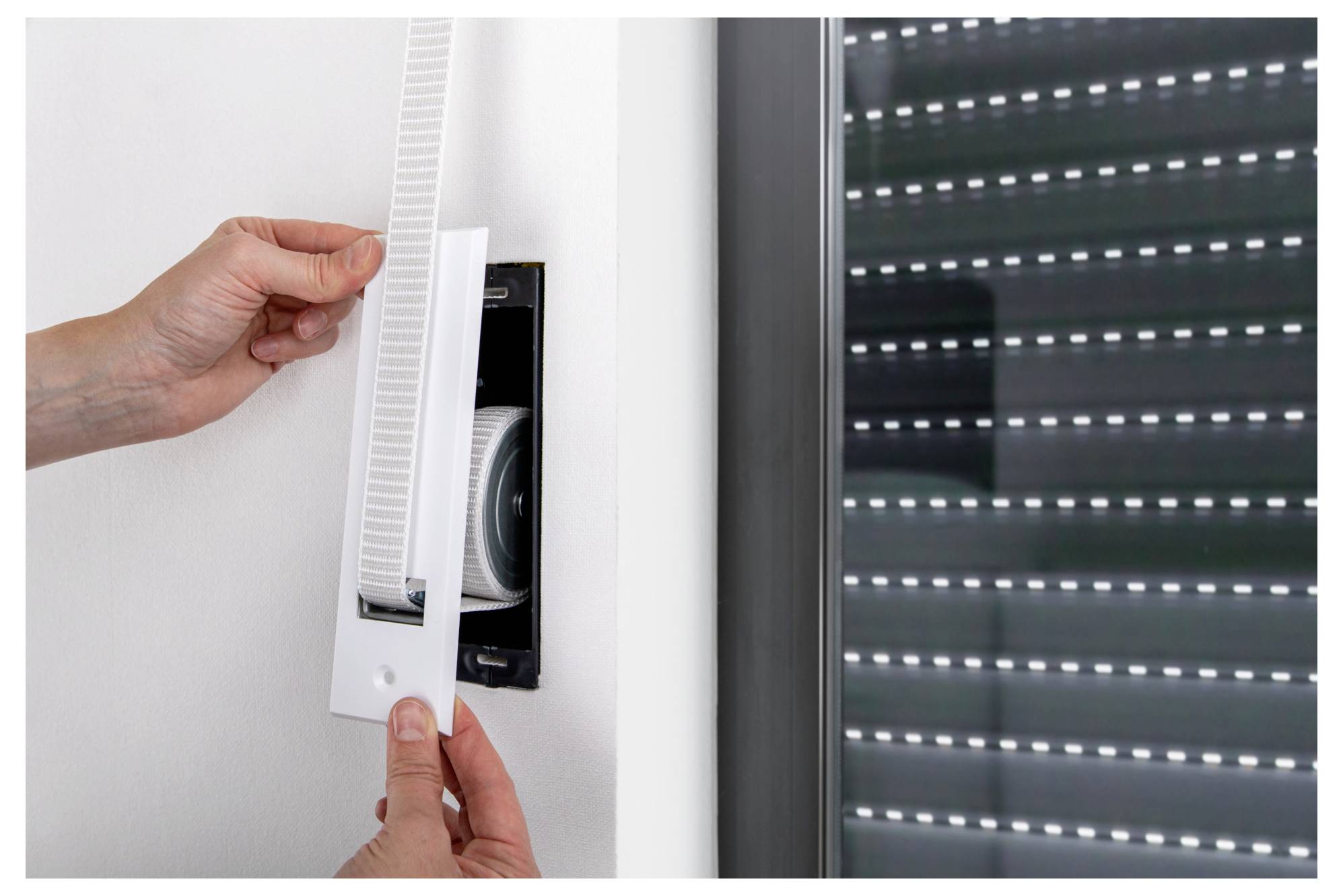

Hands installing a white wall vent cover over a recessed opening beside a window shutter.

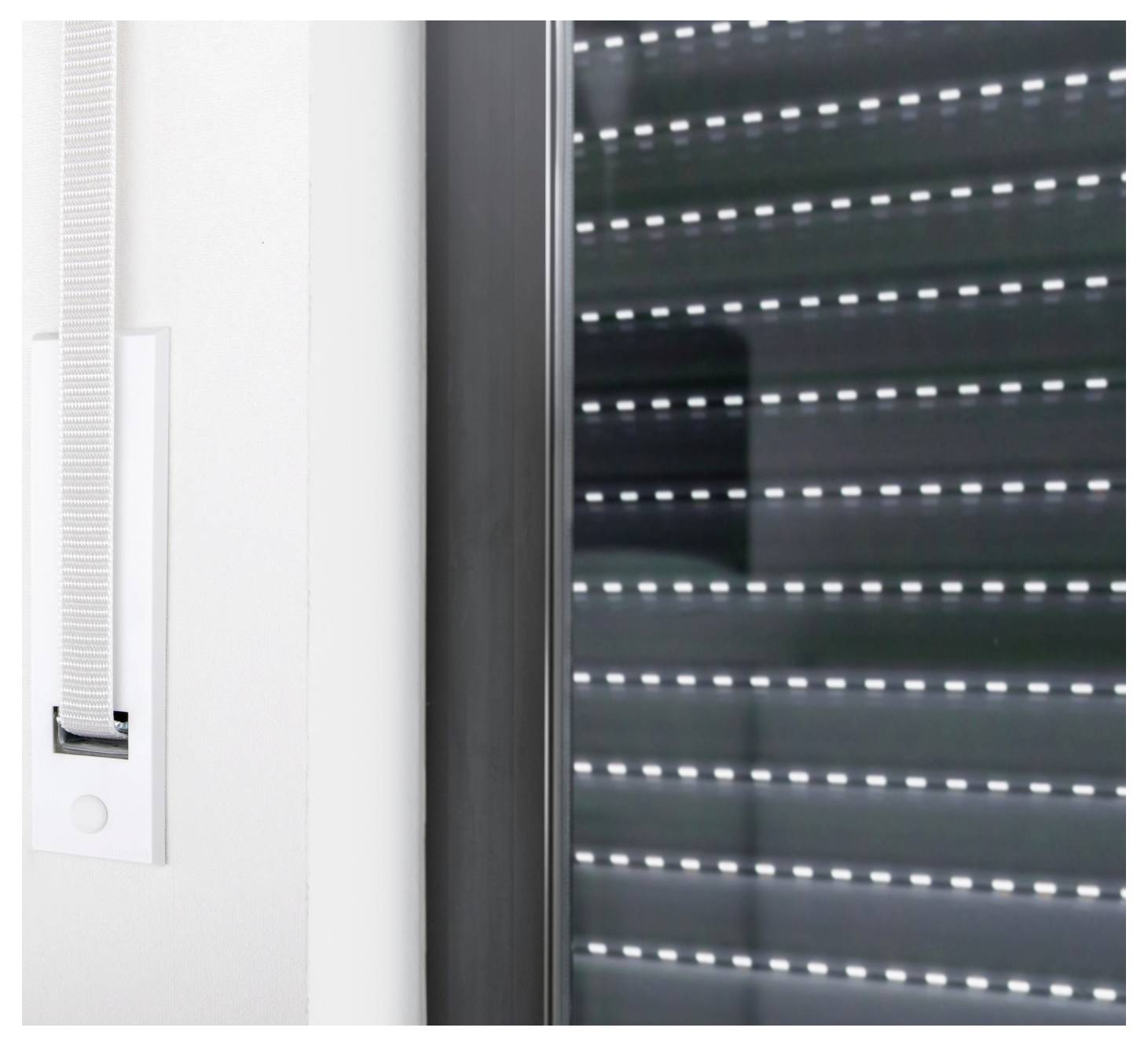

Close-up of a white window blind pull switch beside a window with closed dark slatted shutters.

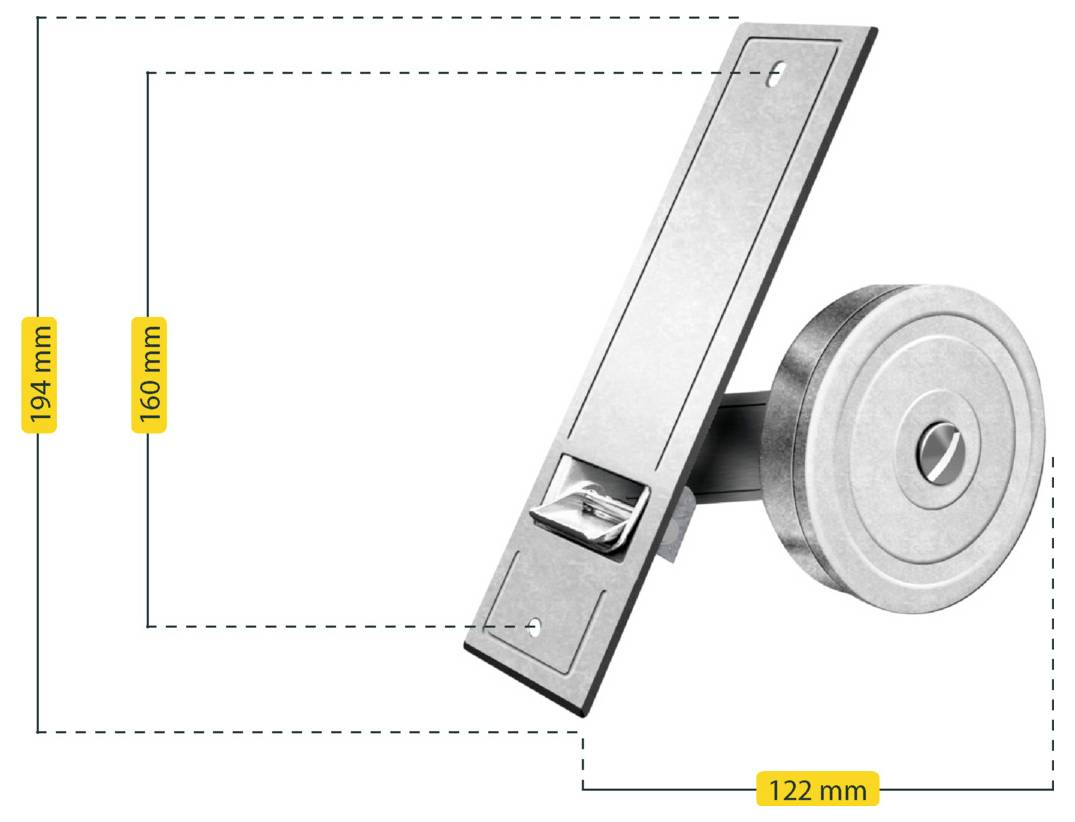

Technical diagram of a door pull handle with circular mounting base, labeled dimensions 194 mm height, 160 mm handle length, and 122 mm depth.

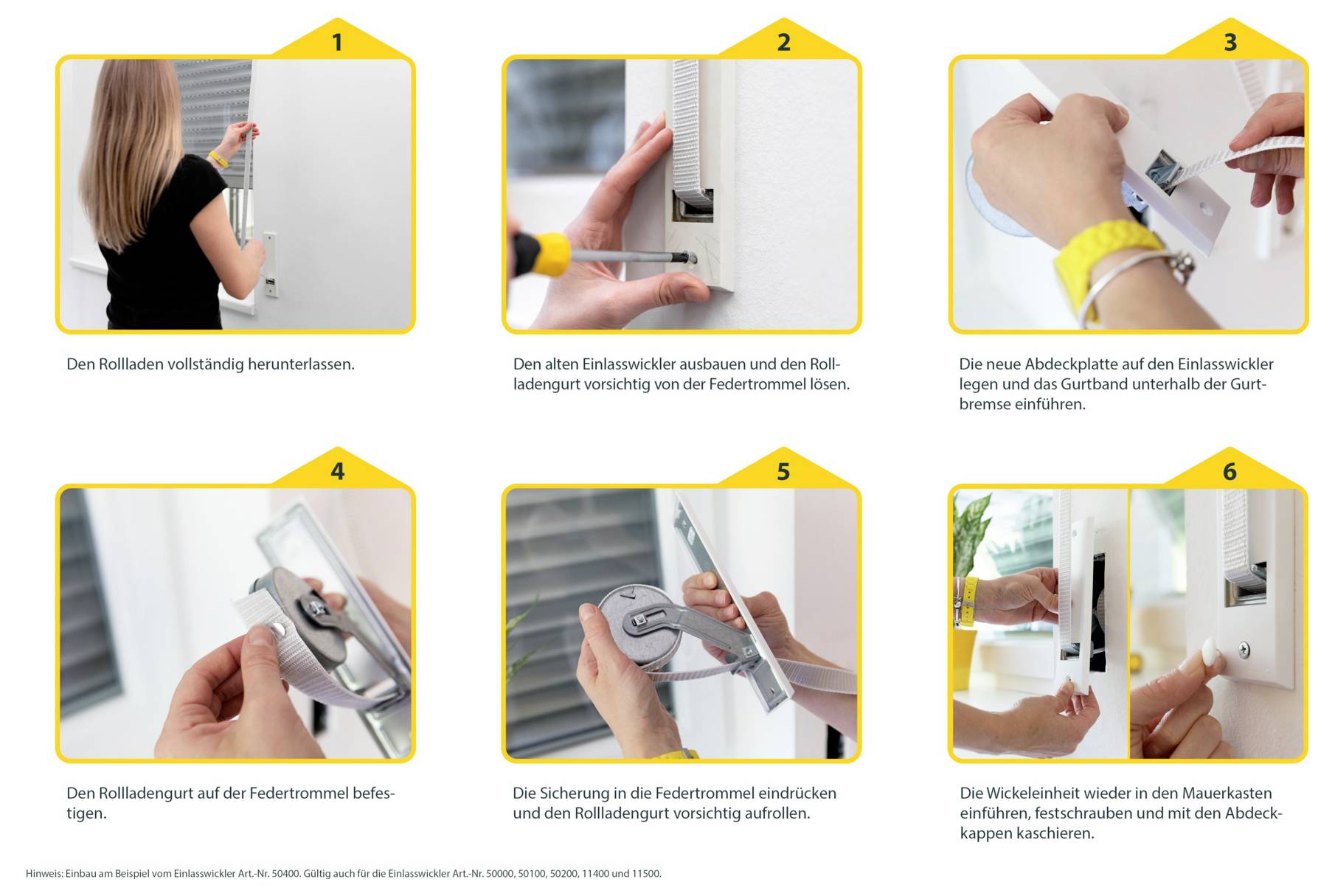

Six-step illustrated guide for removing and reinstalling a roller shutter: open housing, remove roller, insert new strap, attach new roller, secure and wind, then reinstall in wall box.

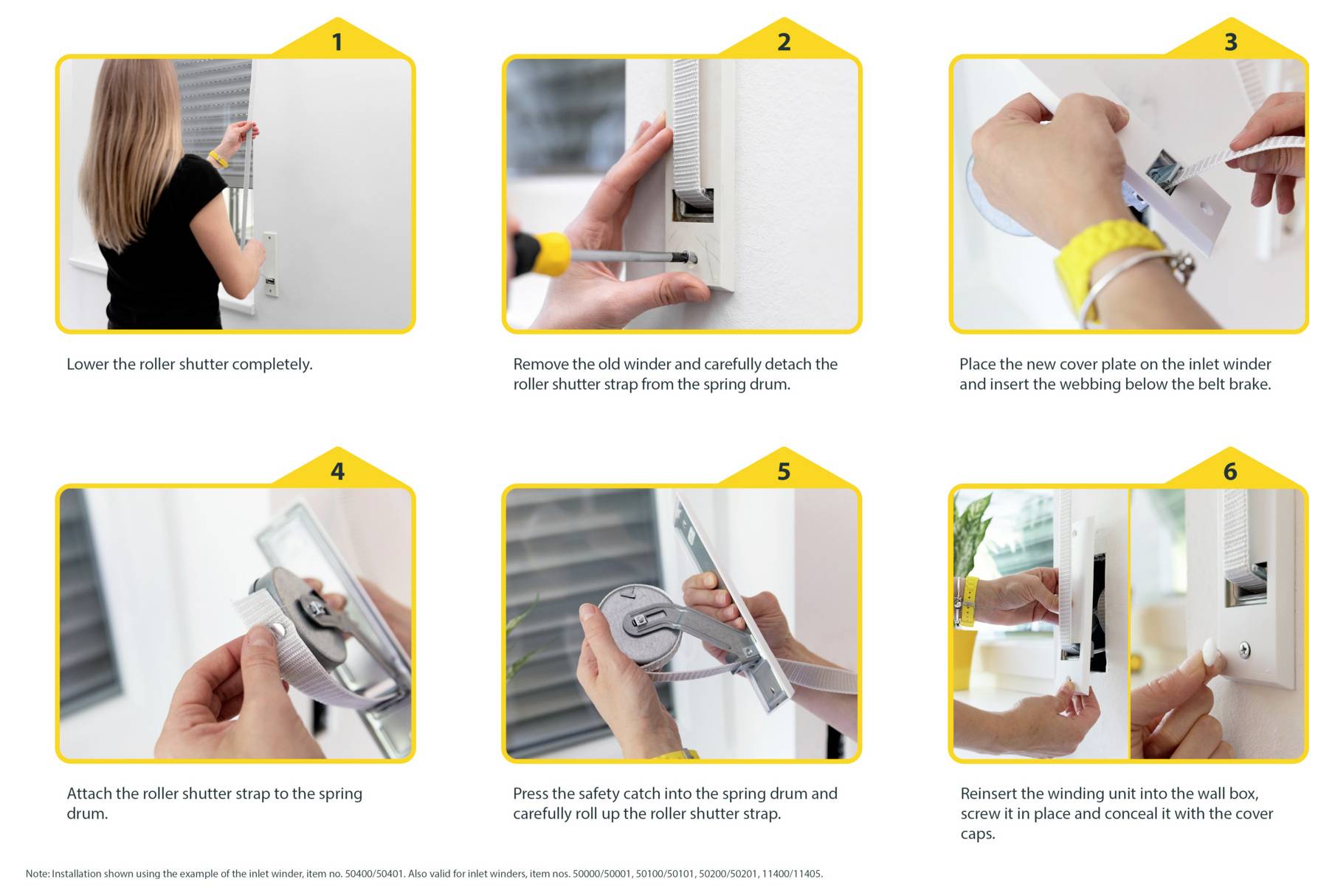

Six-step illustrated guide for replacing a roller shutter winder: lower shutter, remove old winder, install new cover plate, attach strap to spring drum, secure safety catch, and reinstall unit.

1/8

EAN:

Part number:

Item no:

Fast track dispatch on Thu 29 Oct

9 Piece(s)

Sales and shipping:

Conrad ElectronicTerms & Conditions

Number

Piece(s)

Total (€ 6.49 / piece)

€ 6.49

incl. VAT

Only 9 Piece(s) available

14-day return policy included

Report legal concerns

Highlights & Details

Schellenberg inlet winder Maxi, hole spacing 16.0 cm, flush-mounted shutter belt winder, galvanized, 50200

Robust intake winder for blinds up to 2.30 m height;Maxi shutter system, 160 mm hole distance; max. 5.3 m belt length and 23 mm belt width; pre-stressed spring, installation depth adjustable between 115 and 135 mm; individually expandable with separately available Schellenberg cover plate

Technical specifications

Hole spacing 160 mm (16.0 cm)
Belt width: Suitable for 18–23 mm

Product type: Roller blinds systems

Compatible with: Schellenberg Maxi

Factory colour: Silver

Mounting type: Flush mount

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 3820499 Schellenberg 50200 Roller blinds systems Compatible with Schellenberg Maxi

Description

This galvanized steel intake winder is particularly robust and durable. It is compatible with the Maxi shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum is suitable for shutters up to a height of 2.30 m, WAS corresponds to a maximum belt length of 5.3 m.
The belt winder is installed flush-mounted in a suitable wall box and has a hole distance of 160 mm. The installation depth is variable, since the drum can be moved up to 2 cm if needed. The spring of the belt winder is pre-stressed to enable easy installation of the strap.
No cover plate is included in the delivery for an individual design of the belt winder matching to your living environment. These are available separately in various designs with suitable hole spacing.
