Name: Schellenberg 50401 Belt winder Compatible with Schellenberg Maxi
Brand: Schellenberg
SKU: 2624132
Availability: SoldOut

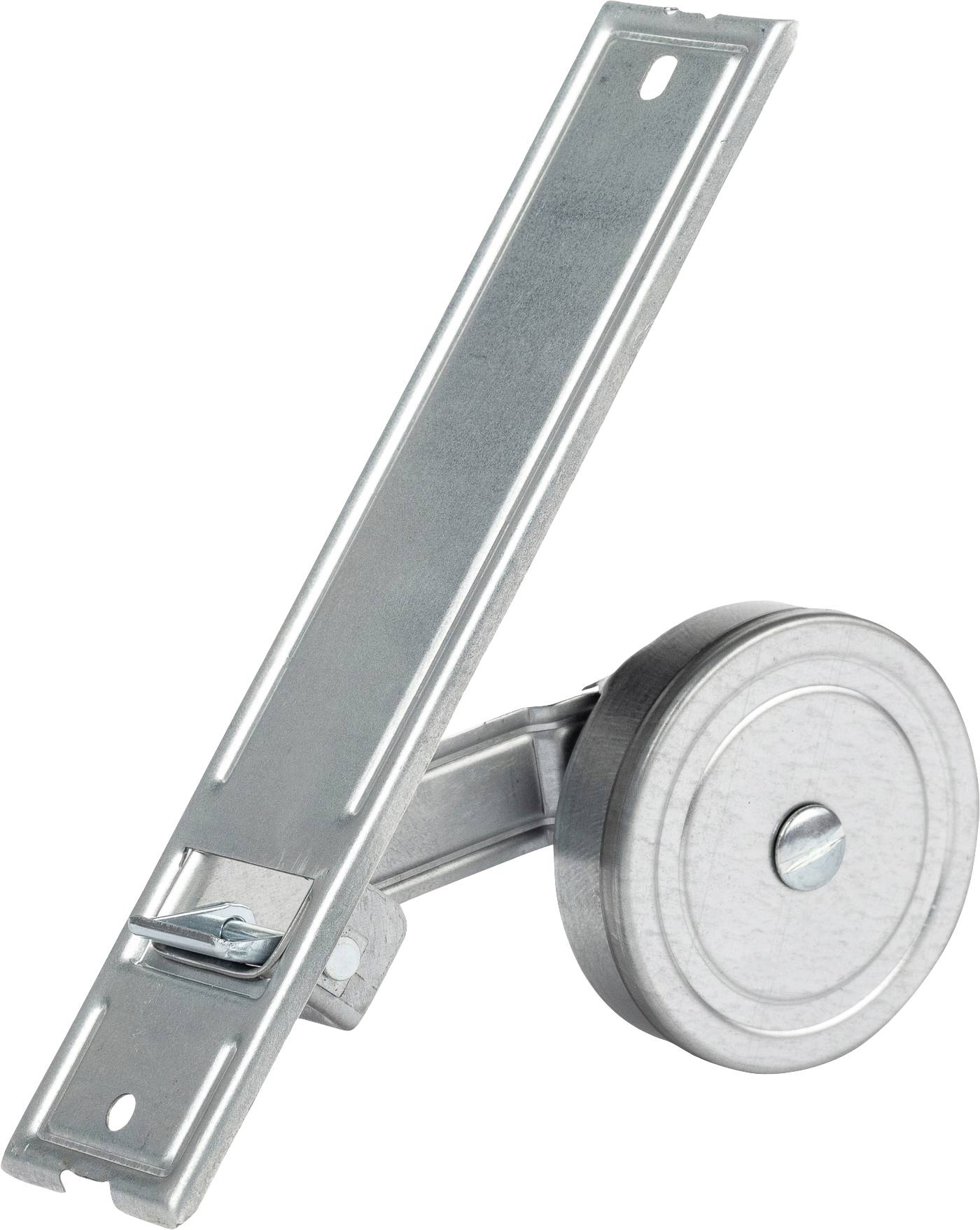

Metal sliding guide rail and roller, part of a door or sliding door mechanism. Serves to guide and move doors in rail systems.

Packaging for a roller blind system. Includes mounting materials and instructions. Dimensions: 11.5-13.5 cm, height: 18.5 cm, strap length: 5.6 m.

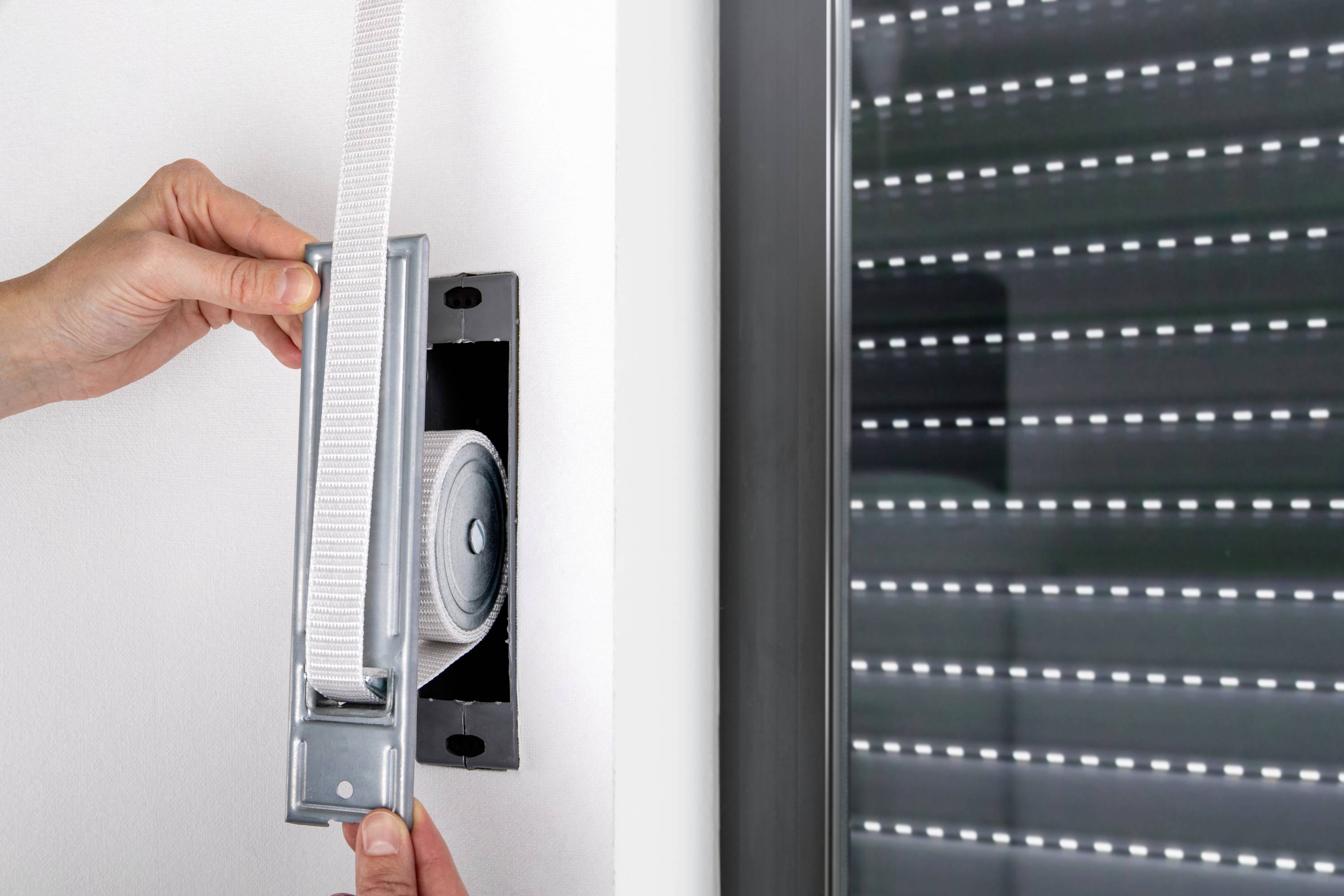

'Person repairs roller blind strap'<br><br>Note: This translation uses British English terminology, such as 'roller blind' instead of the potentially more American-sounding 'window shade', and standard British spelling conventions.

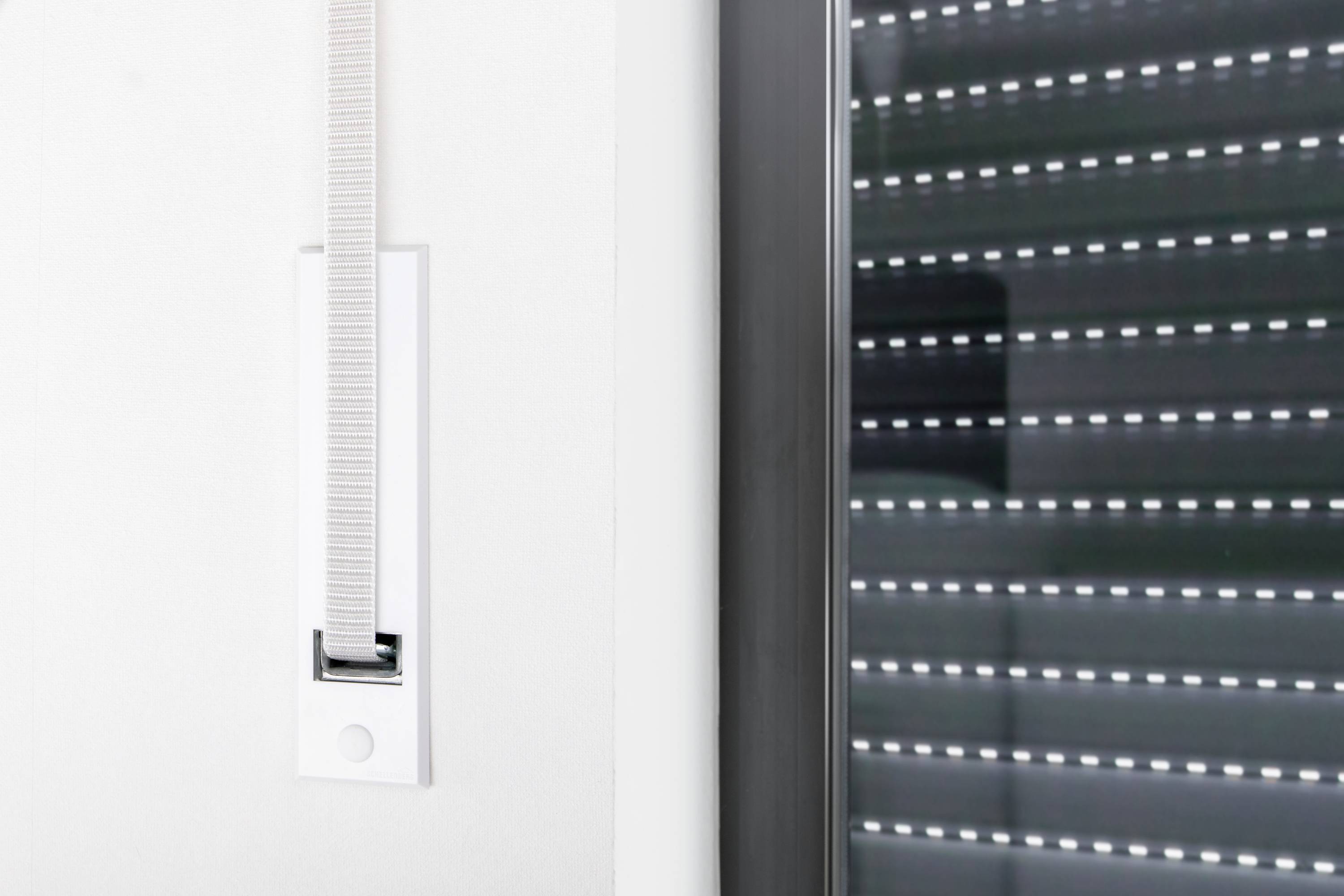

A closed roller shutter next to a white wall with a belt winder.

1/4

EAN:

Part number:

Item no:

Unavailable

Sales and shipping:

Conrad ElectronicTerms & Conditions

Total (€ 9.49 / piece)

€ 9.49

incl. VAT

14-day return policy included

Report legal concerns

Highlights & Details

Schellenberg 50401 Inlet winder Maxi hole spacing 18.5 cm/5.6 m

Robust inlet winder for shutters up to 2.30 m highMaxi roller shutter system, 185 mm hole spacingMax. 5.6 m belt length and 23 mm belt widthPre-tensioned spring, installation depth adjustable between 115 and 135 mmIndividually expandable with separately available Schellenberg cover plate

Technical specifications

Hole spacing: 185 mmDepth 115 to 135 mmBelt length: Max. 5.6 mBelt width: Max. 23 mmShutter height: Max. 2.30 mMaterial: Galvanized steel

Product type: Belt winder

Compatible with: Schellenberg Maxi

Belt width: 23 mm

Width: 50 mm

Height: 215 mm

Depth: 128 mm

Dim: (W x H x D) 50 x 215 x 128 mm

Hub: Not required

Documents & Downloads

User & Safety Instructions

User & Safety Instructions 2624132 Schellenberg 50401 Belt winder Compatible with Schellenberg Maxi

Description

This galvanized steel inlet winder is particularly robust and durable. It is compatible with the Maxi roller shutter system and is therefore designed for a belt width of 23 mm. The winding capacity of the drum is suitable for shutters up to a height of 2.30 m was, which corresponds to a maximum belt length of approx. 5.6 m.The belt winder is flush-mounted in a suitable wall box and has a hole distance of 185 mm. The installation depth is variable, since the spring drum can be moved by up to 2 cm if required. The spring of the belt winder is pre-tensioned to allow easy mounting of the belt strap.For an individual design of the belt winder, suitable for your living environment, no cover plate is included in the delivery. These are available separately in different designs and with a suitable hole spacing.
