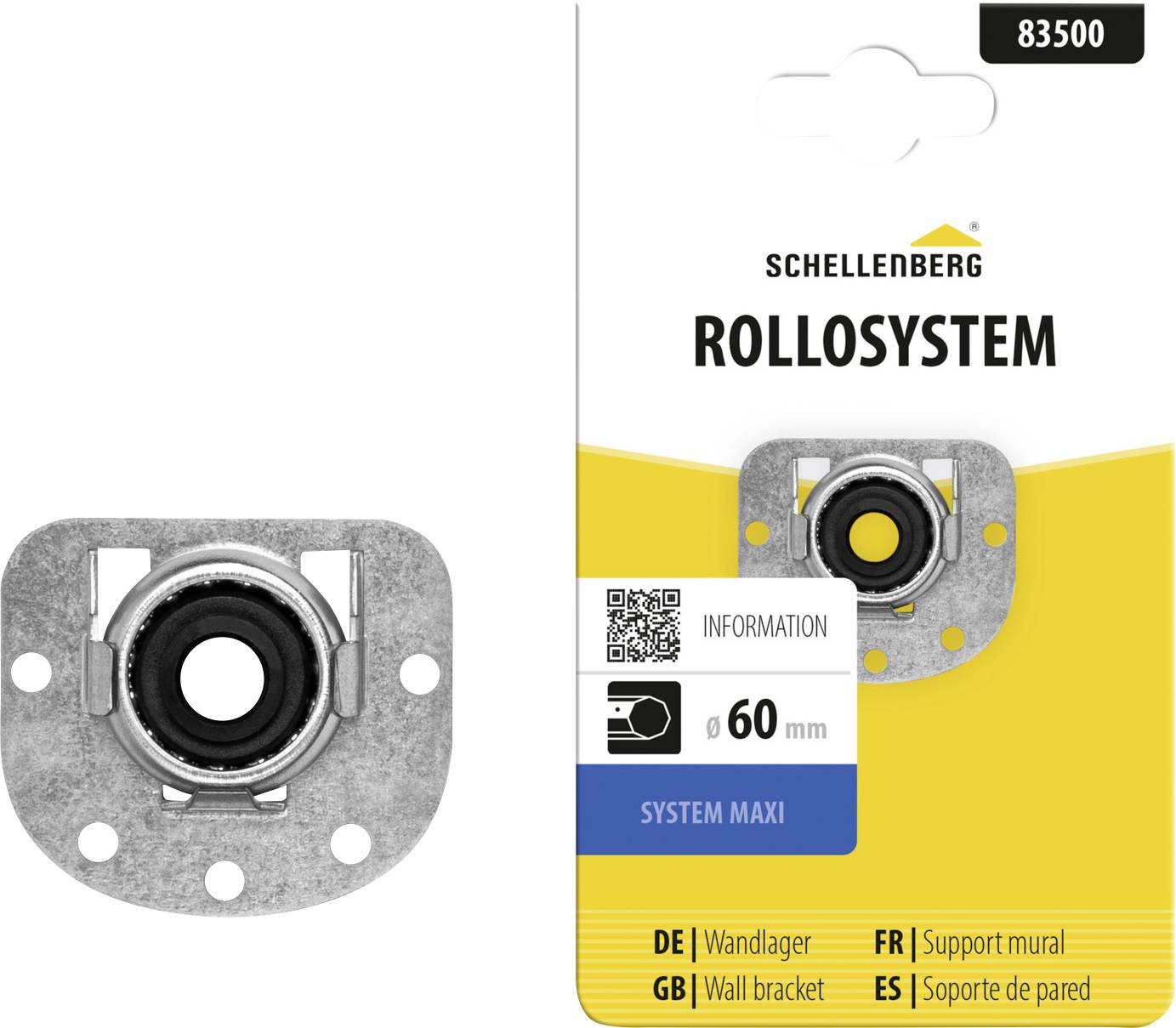

Schellenberg 83500 Roller blinds systems Compatible with Schellenberg Maxi
EAN:
Part number:
Item no:
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 2.76
5
7% = € 0.18
€ 2.58
10
9% = € 0.26
€ 2.50
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 2.76 / piece)
€ 2.76
plus VAT.
Only 10 Piece(s) available
Highlights & Details

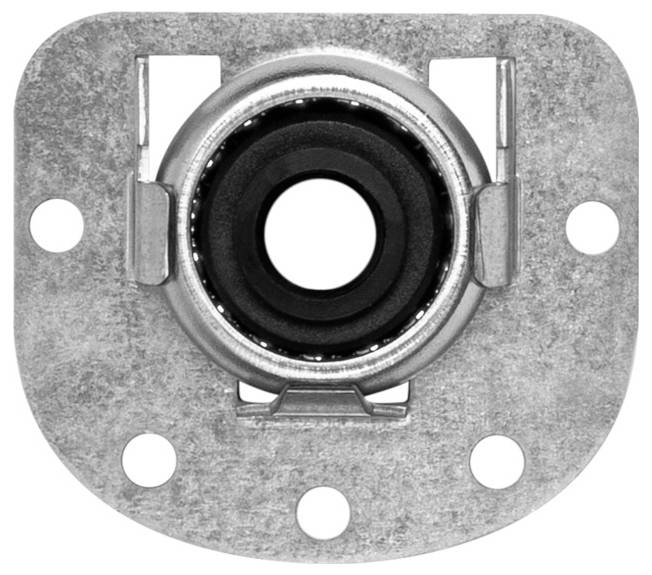

Schellenberg wall bearing with ball bearings, maximum roller shutter systems for steel tube shafts with diameters from 60 to 70 mm, 83500
- Smooth running of a roller shutter shaft with roller case; Maxi shutter system, shutter shaft with Ø 60 to 70 mm; easy mounting on the side wall of the roller shutter box; for hand-operated or motorized shutters; durable and low-friction, no additional grease required
Technical specifications
- Product type
Roller blinds systems
- Compatible with
Schellenberg Maxi
- Factory colour
Silver
- Mounting type
Wall
- Width
80 mm
- Height
60 mm
- Depth
18 mm
- Dim
(W x H x D) 80 x 60 x 18 mm
- Hub
Not required
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3820507 Schellenberg 83500 Roller blinds systems Compatible with Schellenberg Maxi
Description

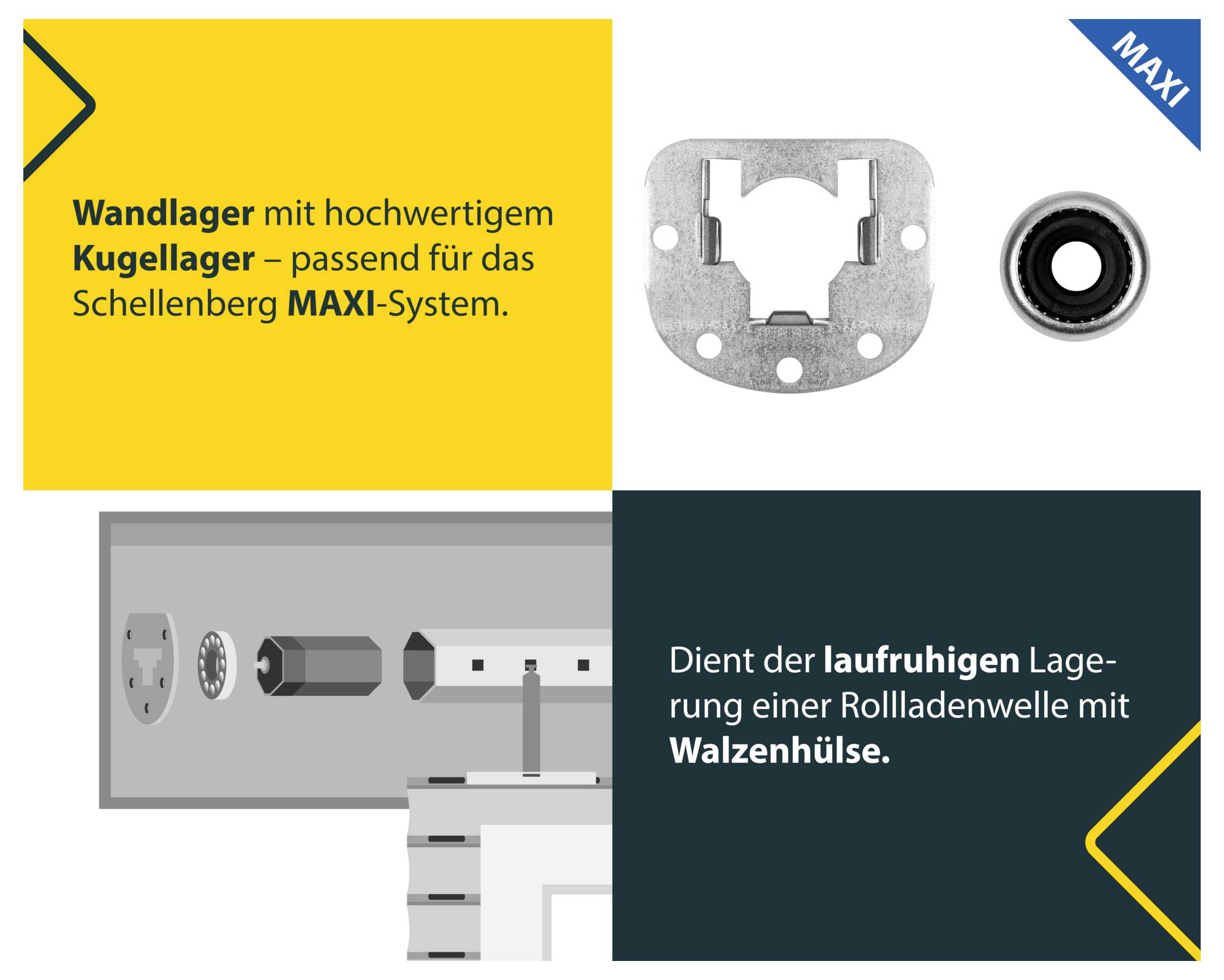

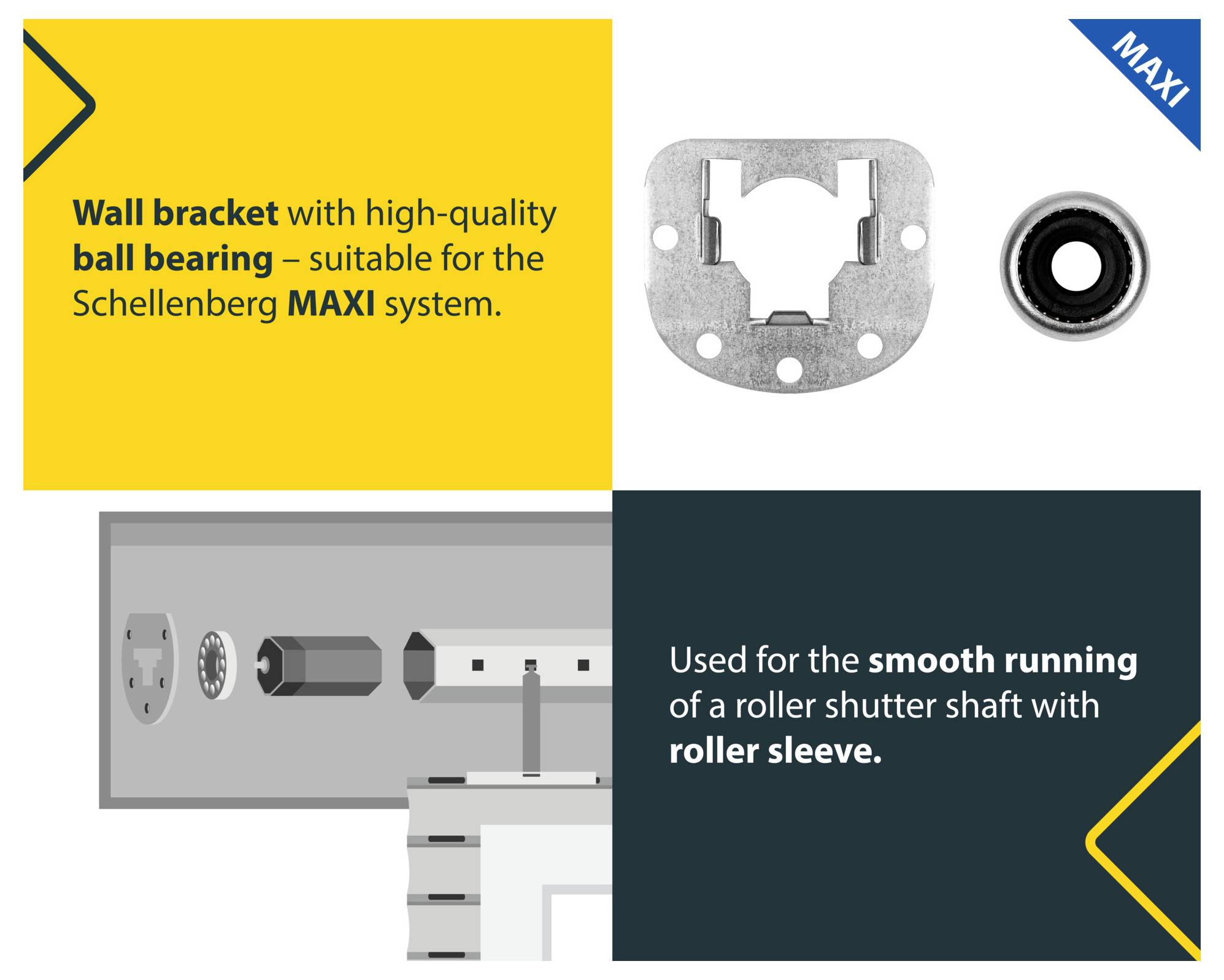

The long-lasting wall bearing with ball bearings is used for smooth-running storage of a roller shaft with roller case. It is compatible with the Maxi roller shutter system and thus is suitable for shutter shafts with a diameter of 60 to 70 mm. The wall bearing is screwed to the side wall in the roller shutter box and is suitable both for hand-operated and for motorized shutters. The wall bearing is smooth and quiet without any additional grease.
This text is machine translated.
This text is machine translated.
Features
- * Roller blind system: Maxi
- * Roller shutter shaft diameter: 60 to 70 mm
- * Ball bearing inner diameter: 12 mm
- * Dimensions (W x H x D): 80 x 60 x 18 mm
- * Mounting holes: 5

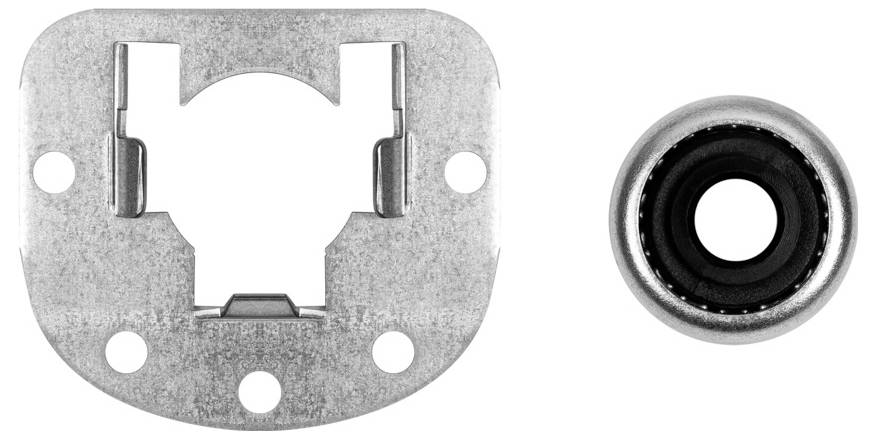

Scope of delivery
- 1 x wall bearings
- 1 x ball bearings
