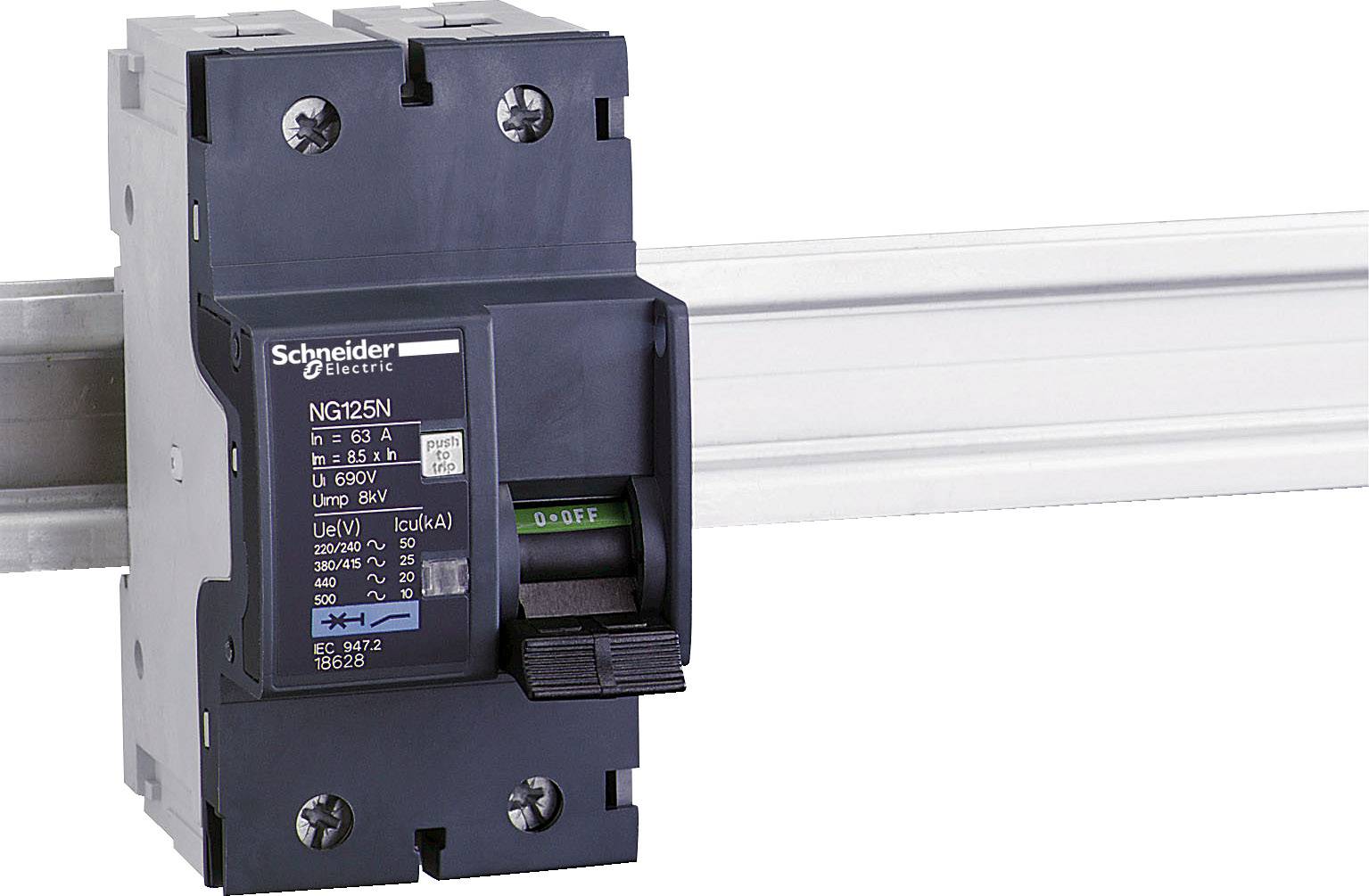

Schneider Electric 18627 18627 Circuit breaker
Product type
Circuit breaker
Number of pins
2
Release characteristics
C
Dim
(L x W x H) 81 x 54 x 103 mm
Content
1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
C
- Dim
(L x W x H) 81 x 54 x 103 mm
- Content
1 pc(s)
- Switch-off capacity
50 kA
- Width
54 mm
- Height
103 mm
- Length
81 mm
IP20
- Connection
Clamp
- Switching current (max.)
50 A
- Switching voltage
375 V DC
240 V AC
415 V AC
440 V AC
500 V AC
- Durability
20000 cycles
- Max. temperature
+70 °C
- Min. temperature
-30 °C
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1862956 Schneider Electric 18627 18627 Circuit breaker
Description
Power Switch NG 125 N, 2P, 50 A, C-Charaktersitik. Product range: NG 125-series: Activsense 9-product or component type: power switch - short description of the device: NG 125 N-type: AC, DC technology of the trip unit: thermal-magnetic circuit capacity: 10kA Icu gema? EN/IEC 60947-2 - 500 V AC 50/60 Hz, 20 kA Icu gema? EN/IEC 60947-2-<= 250 V DC, 20 kA Icu gema? EN/IEC 60947-2 - 440 V AC 50/60 Hz, 25kA Icu gema? EN/IEC 60947-2 - 380...415 V AC 50/60 Hz, 50 kA Icu gema? EN/IEC 60947-2 - 220 ... 240 V AC 50/60 Hz.
