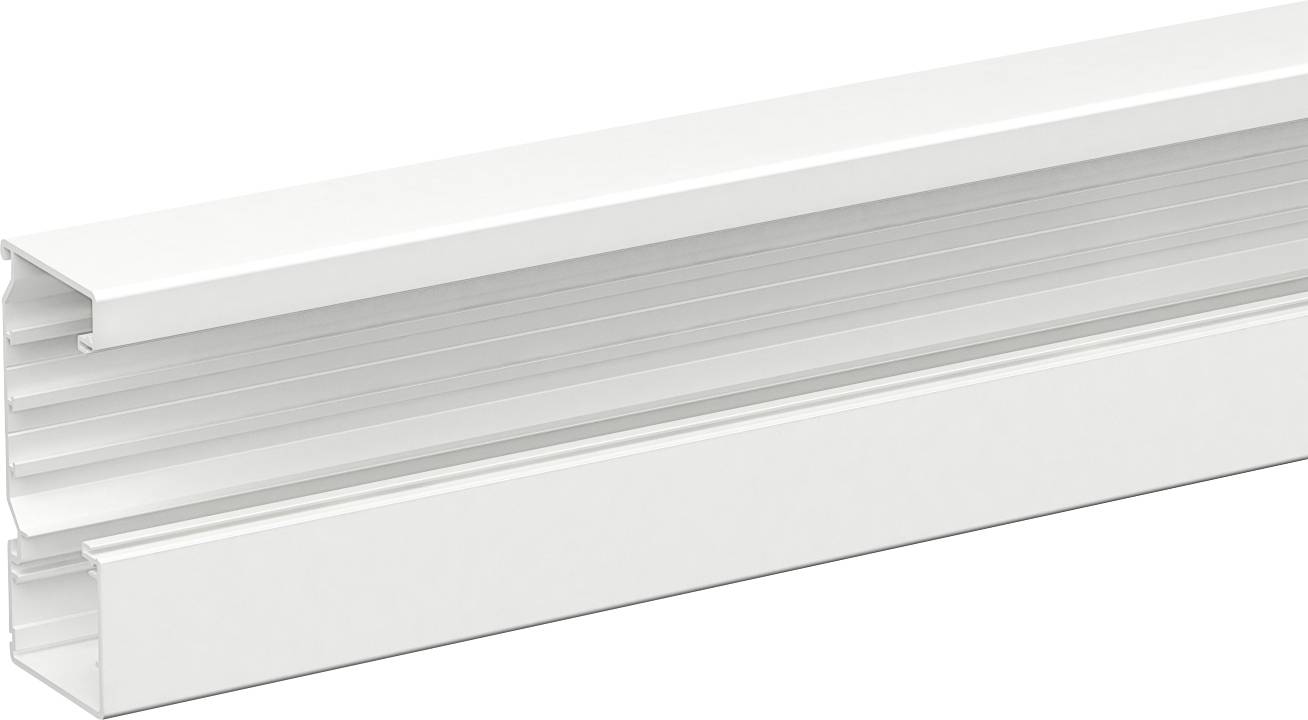

Schneider Electric 5532021 Cable trunking Bottom part (L x W) 2500 mm x 161 mm 1 pc(s) White
Datasheet (PDF)
EAN:
Part number:
Item no:
Technical specifications
- Antibacterial treatment: No.
- Number of tops: 0
- Number of pluggable dividers: 3
- Back wall design (inside): Continuous, other profile
- Rectangular design: Yes
- Operating temperature -5-60 °C.
- With cable clip: No.
- With channel connector: No.
- With protective film: Yes
- Mounting type of upper parts: Inside
- Mounting holes in the ground: Yes
- Usable cross-section: 9369 mm²
- Surface protection: Untreated
- Upper section width 1:80 mm
- Upper parts included: No.
- RAL number: 9010
- Impact strength: IK07
- Symmetric: No.
- Material quality: Polyvinyl chloride (PVC)
- Product type
Cable trunking
- Component
Bottom part
- Content
1 pc(s)
- Factory colour
White
- Dim
(L x W) 2500 mm x 161 mm
- Length
2500 mm
- Width
161 mm
- Depth
72 mm
- Halogen-free
No
IP20
- Material
Plastic
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3763555 Schneider Electric 5532021 Cable trunking Bottom part (L x W) 2500 mm x 161 mm 1 pc(s) White
User & Safety Instructions
User & Safety Instructions 3763555 Schneider Electric 5532021 Cable trunking Bottom part (L x W) 2500 mm x 161 mm 1 pc(s) White
Description
TEK 161-3/72 lower section 2500 mm, similar to RAL 9010 TYPE: TEK-U 161-3/72 9010. TEK is best-selling among the installation channels. Uniform design and versatile functionality are the key factors for the TEK success story. Material: PVC.
