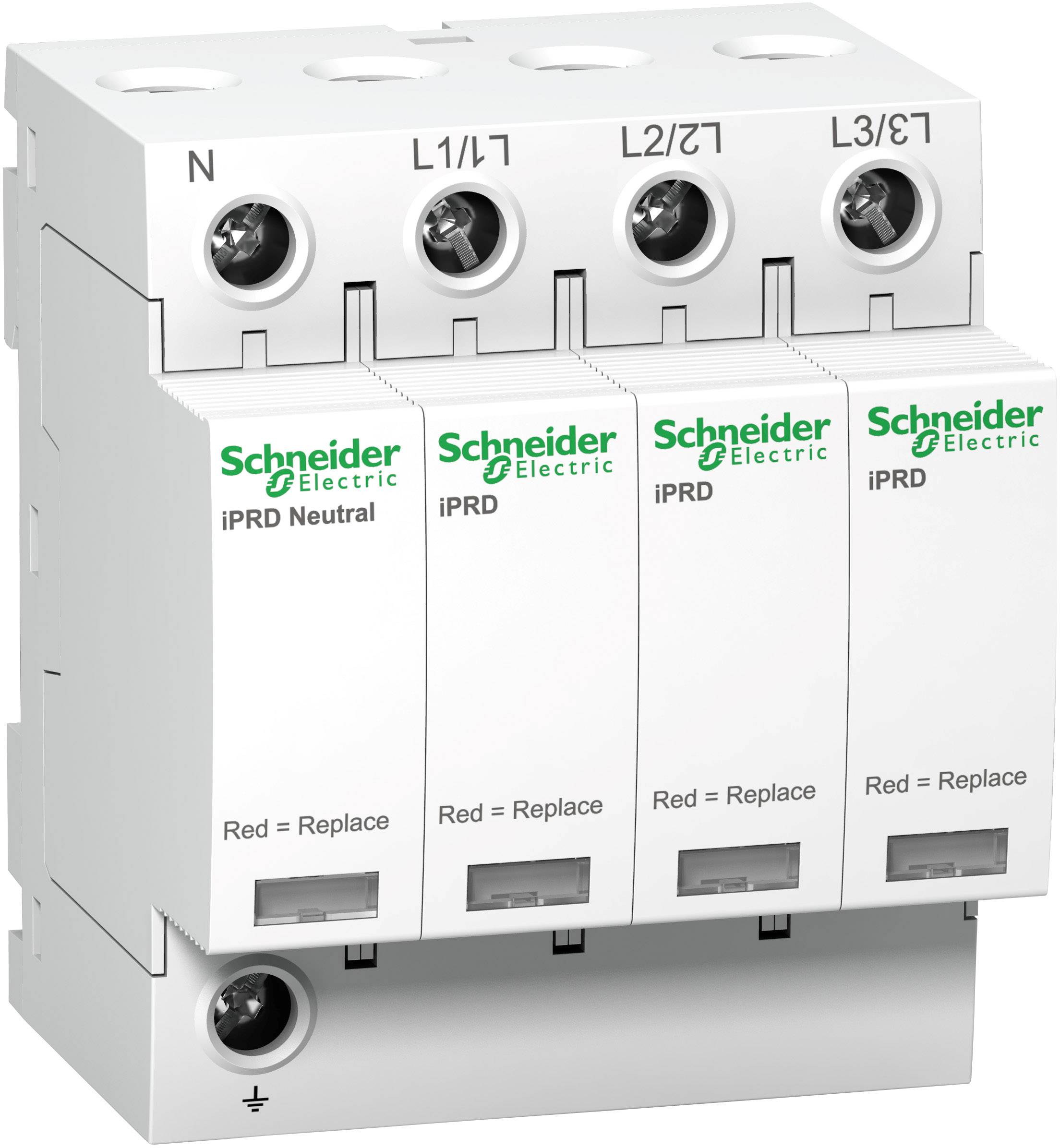

Schneider Electric A9L65601 A9L65601 Surge arrester Surge protection for: PV systems 65 kA Piece 1 pc(s)
EAN:
Part number:
Item no:
Technical specifications
- Product type
Surge arrester
- Surge protection for
PV systems
- Leakage current
65 kA
- Nominal voltage
230 V AC
400 V AC
- Pick-up time (details)
25 ns
- Operating temperature
-25°C-60 °C
IP40
IP20
- Manufacturer part #
A9L65601
- Factory colour
White
- Dim
(W x H x D) 72 x 85 x 69 mm
- Width
72 mm
- Height
85 mm
- Depth
69 mm
- Content
1 pc(s)
- Packaging type
Piece
- UKCA
not relevant
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 1863733 Schneider Electric A9L65601 A9L65601 Surge arrester Surge protection for: PV systems 65 kA Piece 1 pc(s)
Description
Surge suppressor iPRD65 r, Type 2, 3 P + N, with remote signalling contact, Imax 65 kA, UC 260 V. Product range: iPRD-product or component type: surge arrester with pluggable protection module - Short description of the device: iPRD65 r-type. d. Surge arrester: Electrical Distribution Network Earthing System TT, TN-S.
This text is machine translated.
This text is machine translated.
What kind of Overvoltage Protection are you looking for?
Accessories
(*All information is plus legal VAT)The necessary accessories are required to use the article as described.
