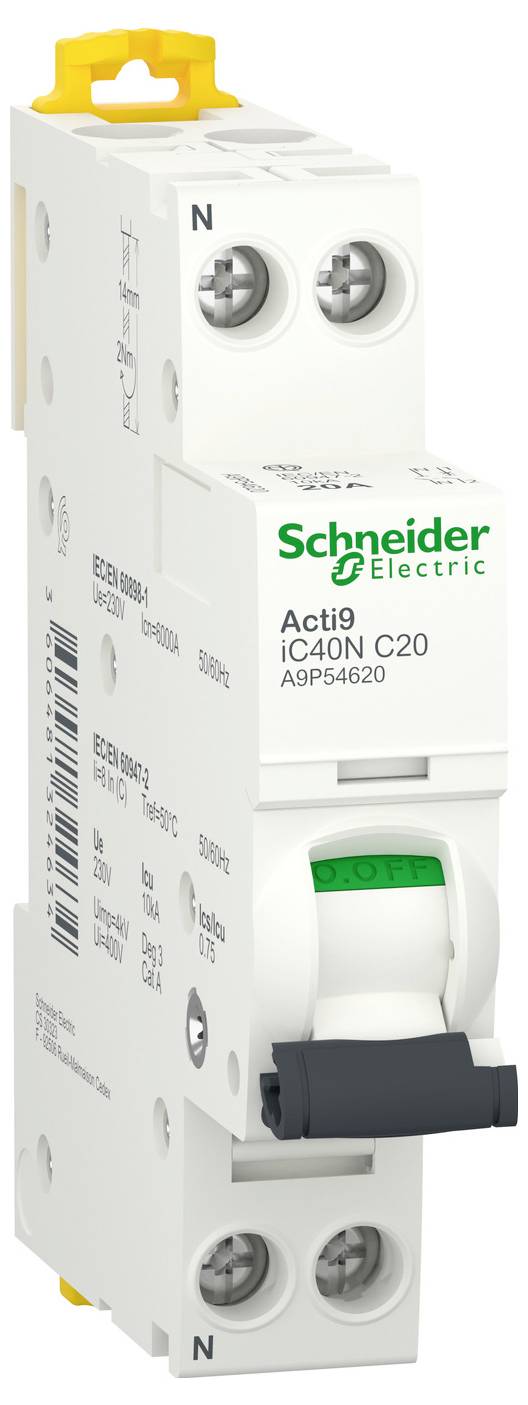

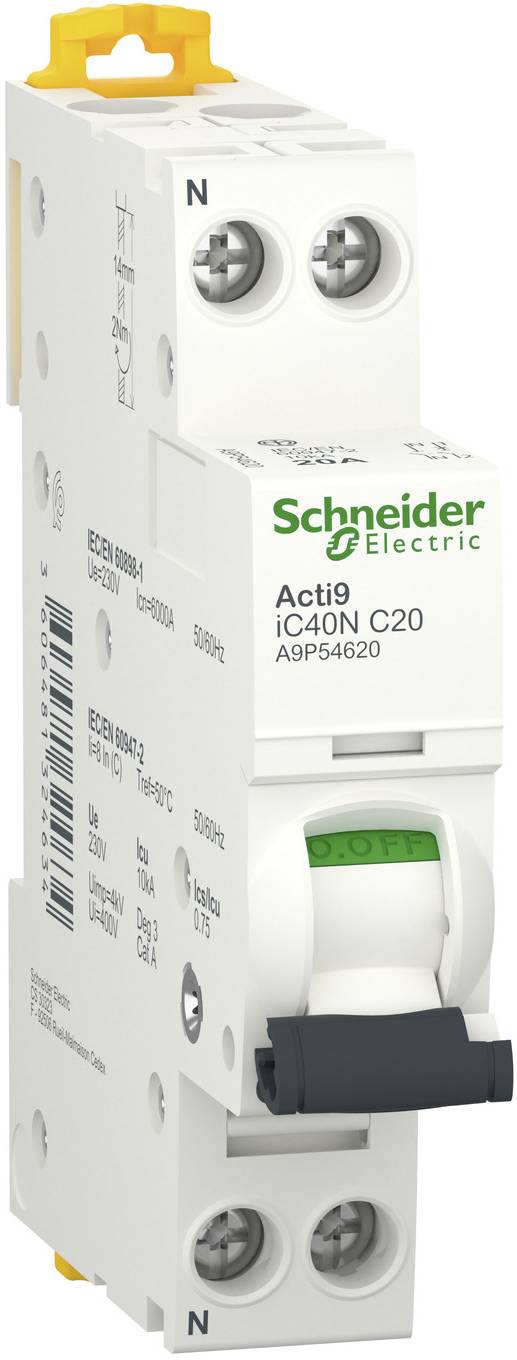

Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
EAN:
Part number:
Item no:
Product type
Circuit breaker
Number of pins
2
Release characteristics
C
Nominal current - rounded value
20 A
Nominal current
20 A
Quantity (Piece(s))
Savings
Package size (plus VAT.)
1
-
€ 25.20
3
4% = € 0.98
€ 24.22
Volume discounts vary depending on the seller
You save € 0.00
Number
Total (€ 25.20 / piece)
€ 25.20
plus VAT.
Technical specifications
- Product type
Circuit breaker
- Number of pins
2
- Release characteristics
C
- Nominal current - rounded value
20 A
- Nominal current
20 A
- Content
1 pc(s)
- Nominal voltage
230 V
- Switch/button features
magnetic
AC
44 mm
20 A
230 V
50-60 Hz
C
400 V
3
3
3
1
FALSE
3.3 W
IP20
1
TRUE
1-16 mm²
1-10 mm²
-25-70 °C
FALSE
TRUE
2
6 kA
10 kA
4 kV
- UKCA
yes
Documents & Downloads
User & Safety Instructions
User & Safety Instructions 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Information
Repairability/durability data sheet 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Conformity certificate 3343747 Schneider Electric A9P54620 A9P54620 Circuit breaker 20 A 230 V
Description
This product is a C40N circuit breaker (MCB). This is a 1P+N circuit breaker with 1 protected pole and 20A rated current and tripping characteristic C. The breaking capacity is up to 10kA at 230VAC in accordance with EN/IEC 60947-2. This product meets both the industrial standard EN/IEC 60898-1 and the standard for the living area EN/IEC 60947-2. The installation and cabling are simplified by the clip-on function as well as the ease of maintenance. Electrical life of up to 20,000 cycles and a mechanical life of up to 20,000 cycles. The Ue operating voltage is 230VAC. The rated insulation voltage UI is 400VAC. The rated surge resistance is 4kV. Operating frequency is 50Hz or 60Hz. Can be mounted on DIN-rail. Its width is 2 x 9 mm. The degree of contamination is 3. The product color is white (RAL9003). The dimensions are (W) 18mm x (H) 85mm x (D) 74mm. The weight is 120g. According to the standard IEC 60529-2-4, the degree of protection is IP20 and IP40 in the housing. Operating temperature is -25°C to 70°C. The storage temperature is -40°C to 85°C. Operating temperature is -25°C to 70°C.
