Schneider Electric C1044V100 C1044V100 Electronics module
Product type
Electronics module
Number of pins
4
Content
1 pc(s)
Rated permanent current Iu
100 A
Number of poles
4.0
Datasheet (PDF)
EAN:
Part number:
Item no:
Number
Total (€ 1,635.00 / piece)
€ 1,635.00
incl. VAT
14-day return policy included
Technical specifications
- Product type
Electronics module
- Number of pins
4
- Content
1 pc(s)
100 A
4.0
Delayed
FALSE
1500
1500
Electronic release
AC
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 2935122 Schneider Electric C1044V100 C1044V100 Electronics module
Datasheet 2935122 Schneider Electric C1044V100 C1044V100 Electronics module
User & Safety Instructions
User & Safety Instructions 2935122 Schneider Electric C1044V100 C1044V100 Electronics module
User & Safety Instructions 2935122 Schneider Electric C1044V100 C1044V100 Electronics module
Description

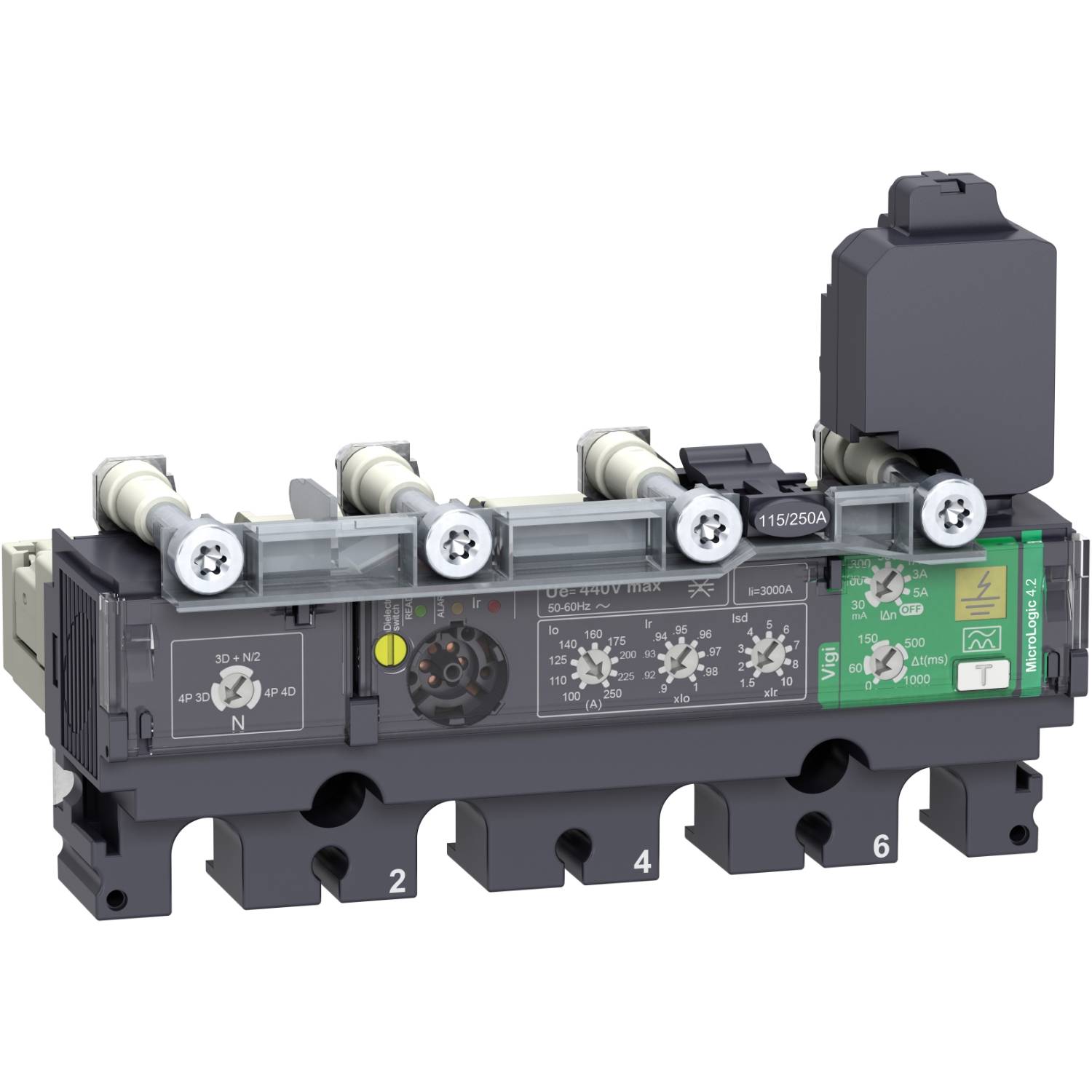

This MicroLogic 4.2 4d electronic trip unit is a 4-pole 4D trip unit used on the Compact NSX 100/160/250 circuit breakers. This electronic trigger with a nominal power of 100 A is an optimal choice for all standard and special applications. It has an adjustable long-term protection against overload. It also offers an adjustable short-term protection and a fixed instantaneous short-circuit protection. The MicroLogic 4.2 Vigi release unit offers an integrated, adjustable differential current protection. MicroLogic 4.2 indicates overloads with alarm LEDs. The green Ready LED flashes when the circuit breaker is ready to trip. A differential current pre-alarm can be available remotely by installing the optional SDX module (LV429532). This product is part of our EcoStruxure Power architecture, provided it is combined with the PowerTag NSX and Compact NSX Basic Switch.
This text is machine translated.
This text is machine translated.
