Schneider Electric C25R36E160 Circuit breaker 1 pc(s) Switching voltage (max.): 690 V AC (W x H x D) 105 x 161 x 86 mm P

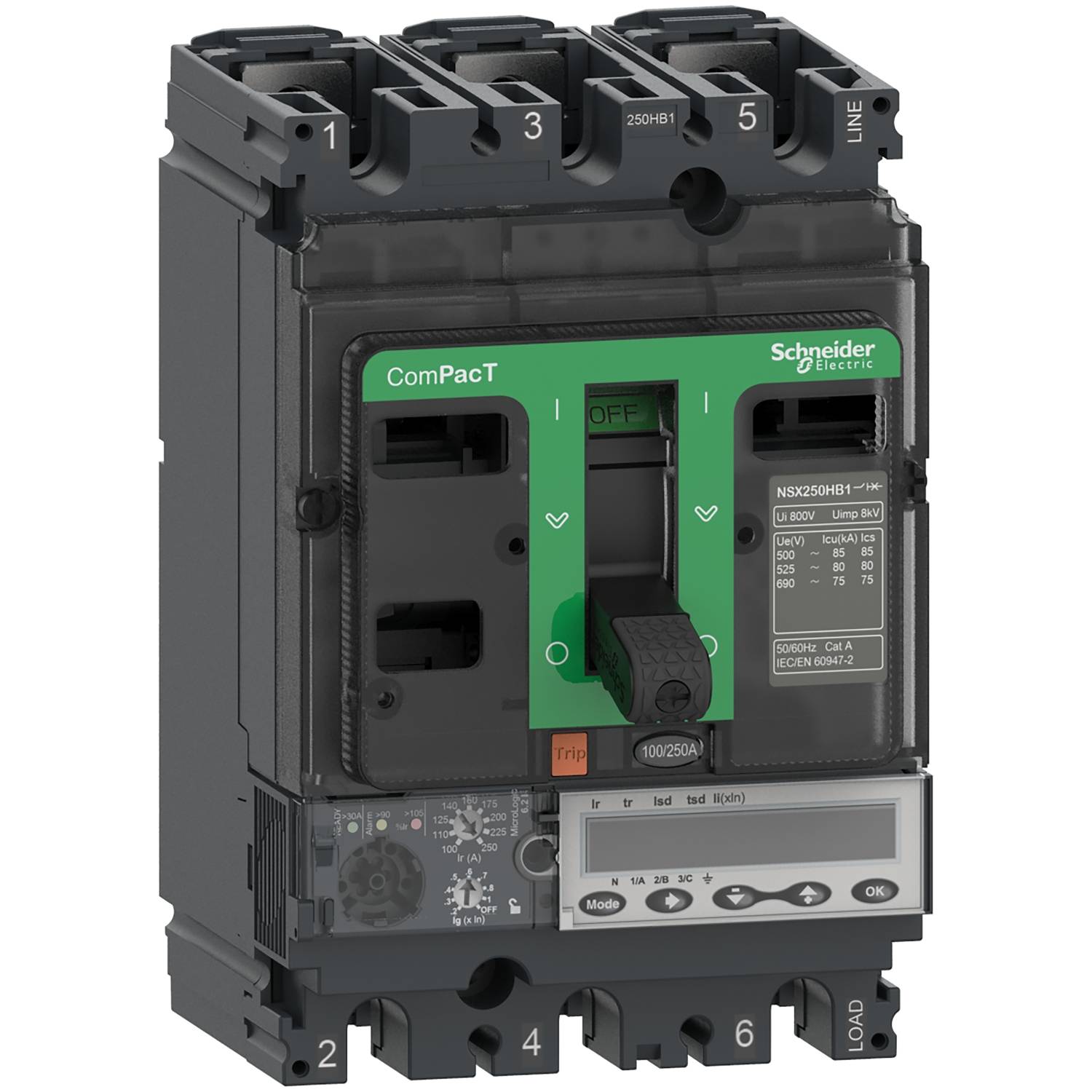

This compact NSX250R is a complete fixed-mount 3P 3D circuit breaker designed to optimize space requirements and breaking capacity. It is an optimum choice for all standard and special applications. The breaking capacity (ICU) is 200 kA eff. At 415 VAC 50/60 Hz and 45 kA eff. At 690 VAC 50/60 Hz. The operating voltage is 690 VAC 50/60 Hz. This product features an electronic trip device MicroLogic 6.2 E with a nominal power of 160 A and an adjustable ground fault protection (OFF position). The MicroLogic 6.2 E trigger device offers adjustable long-term, short-time and instantaneous protection. MicroLogic 6.2 E has an integrated display for fine-tuning and displaying the energy meter. This 3-pole version (105 mm x 161 mm x 86 mm) comes with a variety of optional functions and accessories. It complies with international standards (IEC 60947), CCC, EAC and Marine specifications. Compact NSX250R is part of Schneider Electric's EcoStruxure power architecture.

This text is machine translated.
