Schneider Electric Frequency inverter APM1L0C20N4 200 kW 3-phase
EAN:
Part number:
Item no:
Datasheet (PDF)
Number (Package size 3 pc(s))
Total (€ 22,948.33 / piece)
€ 68,845.00
incl. VAT
14-day return policy included
Technical specifications
- 4-quadrant operation possible: No.
- Number of analog outputs: 1
- Number of analog inputs: 2
- Number of digital outputs: 2
- Number of digital inputs: 6
- Number of HW interfaces Industrial Ethernet: 0
- Number of HW interfaces in parallel: 0
- Number of HW interfaces serial RS-232: 0
- Number of HW interfaces serial RS-422: 0
- Number of HW interfaces serial RS-485: 1
- Number of HW interfaces serial TTY: 0
- Number of HW interfaces Other: 2
- Number of HW interfaces USB: 0
- Number of PROFINET interfaces: 0
- Type of converter: Other
- Output phase number: 3
- Integrated brake chopper: No.
- Input phase number: 3
- For industrial use: Yes
- Use in the home or commercial sector permitted: No.
- Maximum output frequency: 500 Hz
- Maximum output voltage 480 V
- With control element: No.
- With optical interface: No.
- With PC connection: No.
- Rated output current I2N 302 A
- Network frequency: 50~60 Hz
- Mains voltage 380-480 V
- Relative balanced line frequency tolerance: 5%
- Relative symmetrical line voltage tolerance: 10%
- Supports protocol for AS-Interface Safety at Work: No.
- Supports protocol for ASI: No.
- Supports protocol for BACnet: No.
- Supports protocol for CAN: No.
- Supports protocol for data highway: No.
- Supports protocol for DeviceNet: No.
- Supports protocol for DeviceNet Safety: No.
- Supports protocol for Ethernet/IP: No.
- Supports protocol for FOUNDATION Fieldbus: No.
- Supports protocol for INTERBUS: No.
- Supports protocol for INTERBUS-Safety: No.
- Supports protocol for KNX: No.
- Supports protocol for LON: No.
- Supports protocol for Modbus: No.
- Supports protocol for PROFIBUS: No.
- Supports protocol for PROFINET CBA: No.
- Supports protocol for PROFINET IO: No.
- Supports protocol for PROFIsafe: No.
- Supports protocol for SafetyBUS p: No.
- Supports protocol for SERCOS: No.
- Supports protocol for other bus systems: No.
- Supports protocol for SUCONET: No.
- Supports protocol for TCP/IP: No.
- Product type
Frequency inverter
- Output rating (max.)
200 kW
- Network
3-phase
- Type
APM1L0C20N4
- Manufacturer part #
APM1L0C20N4
- UKCA
not relevant
Documents & Downloads
Datasheet
Datasheet 3756405 Schneider Electric Frequency inverter APM1L0C20N4 200 kW 3-phase
User & Safety Instructions
User & Safety Instructions 3756405 Schneider Electric Frequency inverter APM1L0C20N4 200 kW 3-phase
User & Safety Instructions 3756405 Schneider Electric Frequency inverter APM1L0C20N4 200 kW 3-phase
Description

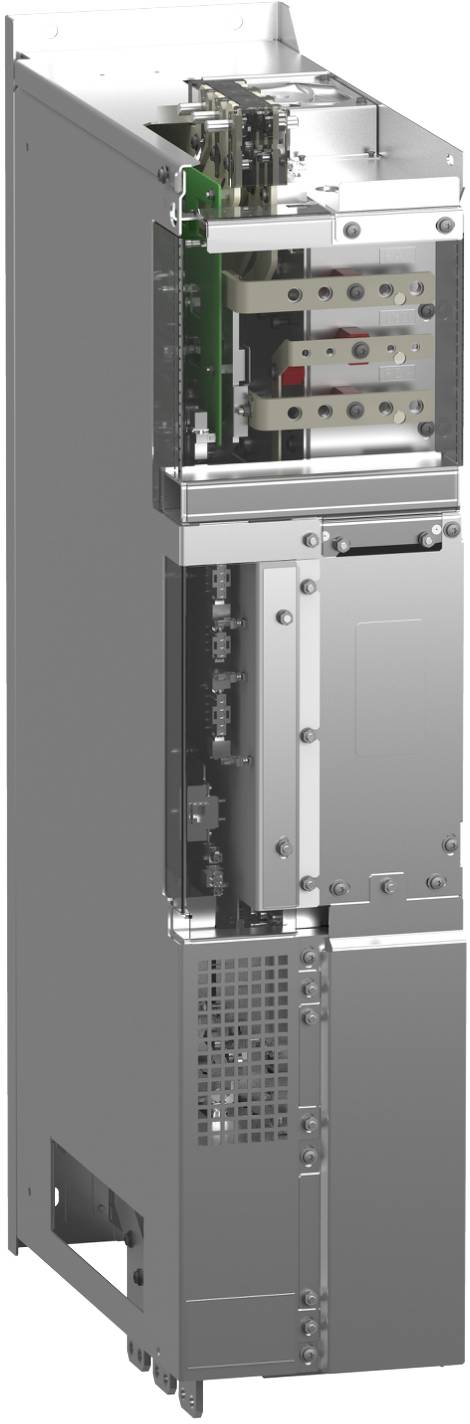

This power module is part of Altivar Process Modular liquid drives. It works with a nominal supply voltage of 380V-480V. It is a 200 kW power module. This standard power module is designed for liquid-cooled architectures. It consists of a standard unit and an integrated water/water heat exchanger. It must be integrated into a cabinet. It is part of the Altivar Process Modular Liquid offering for demanding applications. Contact your APM partner for installation information. Altivar Process Modular Fluid delivers peak performance in engine control applications in machines, processes and buildings.
This text is machine translated.
